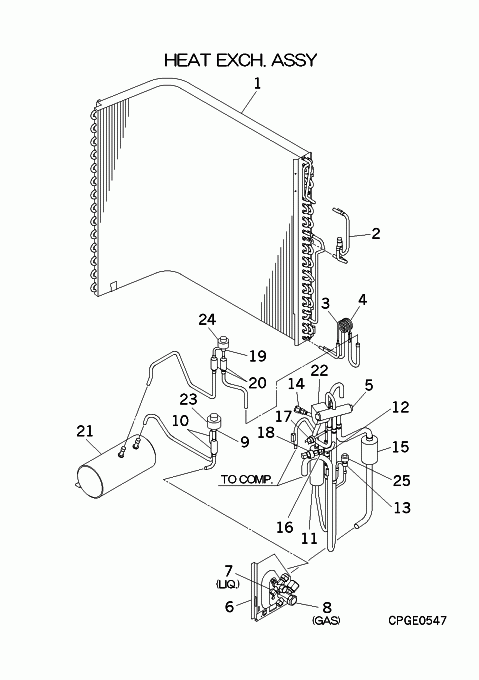

FDCVA302HENR HEAT EXCH. ASSY

Name: FDCVA302HENR HEAT EXCH. ASSY
SKU: FDCVA302HENR HEAT EXCH. ASSY
Availability: InStock

FDCVA302HENR HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RCR311A001B

HEAT EXCH(AIR)

Contact

Notes: !

[1-4] Contact

PCA301A120

HEAT EXCH ASSY(AIR

Contact

[2] Contact

PCA321C678

PIPE ASSY(G)

Contact

[3] Contact

RCR315B008

CAPILLARY

Contact

Notes: !D2.8XD4.0 L350

[3-4] Contact

RCR321A056A

PIPE ASSY

Contact

[4] Contact

RCR315B009

CAPILLARY

Contact

Notes: !D2.8XD4.0 L500

[5] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[6] Contact

RCR116A003C

BRACKET(VALVE)

Contact

[7] In Stock

PCA381A066C

VALVE,SERVICE(3/8")

Notes: LIQ. Show Image

[8] In Stock

PCA381A062D

VALVE,SERVICE(5/8")

Notes: GAS

[9] In Stock

SSA387F045A

VALVE EXPA

Notes: EEVC

[9-10] In Stock

PCA387F028

VALVE ASSY,EXP(COO

Show Image

[10] In Stock

SSA357A059T

STRAINER

[11] Out of Stock

PCA325A007

PIPE SHELL

[12] In Stock

SSA385A017

VALVE CHECK

Show Image

[13] Contact

SSA382A250A

VALVE,S(2WAY)

Contact

Notes: SV1

[14] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[15] Contact

SSA325A001CG

PIPE,SHELL

Contact

[16] Out of Stock

SSA327B067A

VALVE,SERVI

[17] In Stock

SSA532A083

SWITCH HP

Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image

[18] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[19] Out of Stock

SSA387F047

VALVE EXP

Notes: EEVH or SM, EEV - VALVE BODY Show Image

[20] In Stock

SSA357A008AF

STRAINER

[21] In Stock

SSA352B048

RECEIVER

[22] In Stock

RPC382F700F

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S‚ - REVERSING VALVE SOLENDOID COIL/ LENGTH 54CM Show Image

[23] In Stock

SSA382F212S

COIL,SOLENOID

Notes: FOR EEVC

[24] In Stock

SSA382F210M

COIL SOLENOID

Notes: FOR EEVH, EEVH Show Image

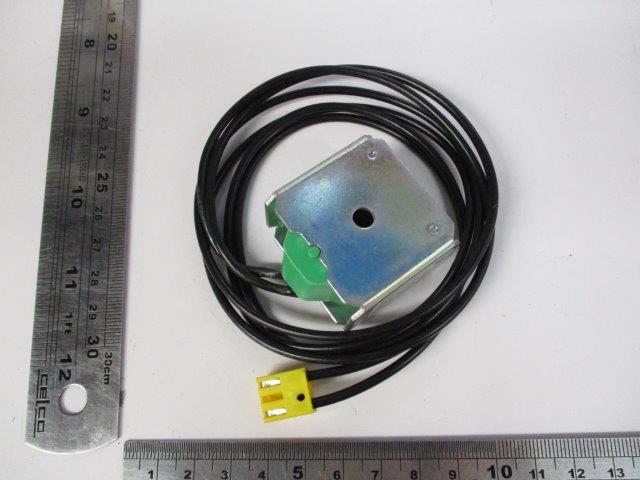

[25] In Stock

PCB382F092S

COIL ASSY

Notes: FOR SV1 Show Image
