FDCVA251HENR FAN AND COMPRESSOR

Name: FDCVA251HENR FAN AND COMPRESSOR
SKU: FDCVA251HENR FAN AND COMPRESSOR
Availability: InStock

FDCVA251HENR FAN AND COMPRESSOR

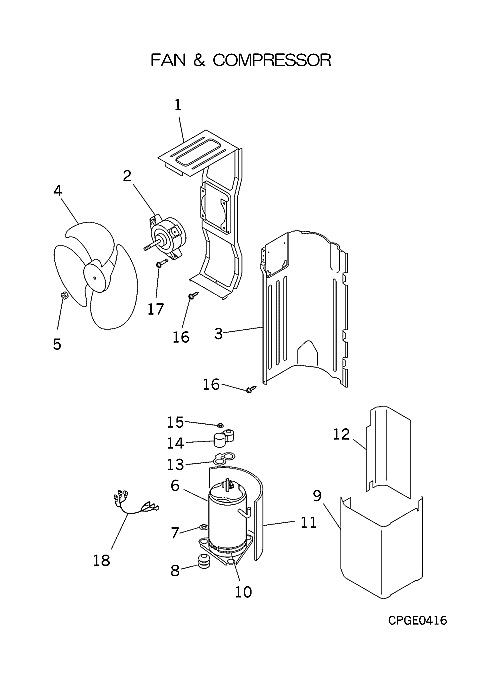

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

RCN116A002

BRACKET

[2] In Stock

SSA512T061F

MOTOR

Notes: CONDENSER FAN MOTOR Show Image

[3] Contact

RCN141A001J

PLATE,BAFFLE

Contact

[4] In Stock

SSA431B232

PROPELLER

[5] In Stock

SSA914B007AC

NUT TH

Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image

[6] In Stock

RSA201A001A

COMPRESSOR

Notes: 5CS102XFD, ***COMPRESSORS CANNOT BE RETURNED***

[7] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[8] Out of Stock

SSA941C267

RUBBER

[9] Contact

RCN154D501D

INSULATION

Contact

[10] In Stock

PCA541B016A

HEATER ASSY

Show Image

[11] Contact

RCN154D500A

INSULATI

Contact

[12] Contact

RCN154D501C

INSULATI

Contact

[13] Contact

RSA932C004A

GASKET

Contact

[14] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[15] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[16] In Stock

W011D04X008

TAP SCREW

Notes: 4X8, 1pc ONLY Show Image

[17] In Stock

SSA913C031A

SCREW TAP

Notes: 1pc ONLY Show Image

[18] Contact

PCA504A248P

WIRING ASSY

Contact
