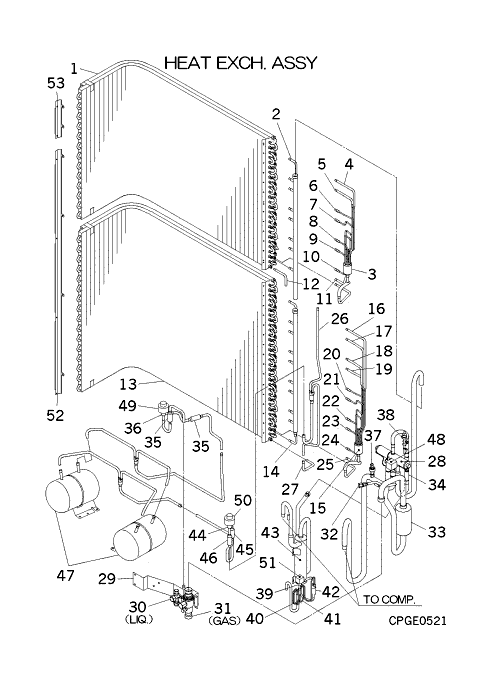

FDCVA1002HESR HEAT EXCH. ASSY

FDCVA1002HESR HEAT EXCH. ASSY

FDCVA1002HESR HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCA311A050
HEAT EXCH(AIR)
Contact
[1-12] Out of Stock
PCA301A117
HEAT EXCH
Notes: UPPER
[2] Contact
PCA315D176
HEADER ASSY,GAS
Contact
[3] Contact
PJA315A703N
DISTRIBUTOR
Contact
[3-11] Contact
PCA315A086
DISTRIBUTOR ASSY
Contact
[4] Contact
PCA315B832
CAPILLARY ASSY(1)
Contact
Notes: !D2.4XD4.0 L300
[5] Contact
PCA315B833
CAPILLARY ASSY(2)
Contact
Notes: !D2.4XD4.0 L300
[6] Contact
PCA315B834
CAPILLARY(3)
Contact
Notes: !D2.8XD4.0 L300
[7] Contact
PCA315B835
CAPILLARY(4)
Contact
Notes: !D2.4XD4.0 L300
[8] Contact
PCA315B836
CAPILLARY(5)
Contact
Notes: !D2.0XD4.0 L300
[9] Contact
PCA315B837
CAPILLARY(6)
Contact
Notes: !D2.2XD4.0 L300
[10] Contact
PCA315B838
CAPILLARY(7)
Contact
Notes: !D2.0XD4.0 L300
[11] Contact
PCA315B839
CAPILLARY ASSY(8)
Contact
Notes: !D2.2XD4.0 L300
[12] Contact
PCA321C654
PIPE
Contact
[13] Contact
PCA311A051
HEAT EXCH(AIR)
Contact
[13-27] In Stock
PCA301A118B
HEAT EXCH
Notes: LOWER
[14] Contact
PCA315D178
HEADER ASSY,GAS
Contact
[15] Contact
PJA315A703L
DISTRIBUTOR
Contact
[15-25] Contact
PCA315A087
DISTRIBUTOR ASSY
Contact
[16] Contact
PCA315B840
CAPILLARY ASSY(9)
Contact
Notes: !D2.2XD4.0 L300
[17] Contact
PCA315B841
CAPILLARY ASSY(10)
Contact
Notes: !D2.0XD4.0 L300
[18] Contact
PCA315B842
CAPILLARY ASSY(11)
Contact
Notes: !D2.4XD4.0 L300
[19] Contact
PCA315B843
CAPILLARY ASSY(12)
Contact
Notes: !D2.2XD4.0 L300
[20] Contact
PCA315B844
CAPILLARY(13)
Contact
Notes: !D2.6XD4.0 L300
[21] Contact
PCA315B845
CAPILLARY(14)
Contact
Notes: !D2.2XD4.0 L300
[22] Contact
PCA315B846
CAPILLARY(15)
Contact
Notes: !D2.8XD4.0 L300
[23] Contact
PCA315B847
CAPILLARY(16)
Contact
Notes: !D2.4XD4.0 L300
[24] Contact
PCA315B848
CAPILLARY(17)
Contact
Notes: !D2.6XD4.0 L300
[25] Contact
PCA315B849
CAPILLARY ASSY(18)
Contact
Notes: !D2.2XD4.0 L300
[26] Contact
PCA321C663A
PIPE ASSY
Contact
[27] Contact
PCA321C655
PIPE
Contact
[28] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S,20SL, Reversing Valve Body
[29] Contact
PCA116A203
BRACKET
Contact
[30] In Stock
PCB381A077B
SERVICE VALVE
Notes: LIQ. Show Image
PCB381A077B
[31] In Stock
SSA381A855
SERVICE VALVE
Notes: GAS Show Image
SSA381A855
[32] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[33] Contact
SSA325A001CL
PIPE,SHELL
Contact
[34] In Stock
SSA385A018A
VALVE CHECK
[35] Out of Stock
SSA357A005P
STRAINER
Show Image
SSA357A005P
[36] In Stock
SSA387F044
EXP VALVE
Notes: EEVC or SM1, EEV Body Show Image
SSA387F044
[37] In Stock
SSA551D022C
SENSOR LP
Notes: LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[38] In Stock
SSA532A083
SWITCH HP
Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image
SSA532A083
[39] In Stock
SSA382A250
2WAY, VALVE
Notes: SV Show Image
SSA382A250
[39-42] Contact
PCA321C578
PIPE ASSY
Contact
[40] Contact
PCA315B790
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[41] Contact
PCA315B791
CAPILLARY
Contact
Notes: !D1.2XD3.2 L500
[42] In Stock
SSA357A008BW
STRAINER
[43] Contact
PCA325A003B
PIPE ASSY,SHELL
Contact
[44] In Stock
SSA387F044A
EXP VAL XP
Notes: EEV or SM2, EXPANSION VALVE BODY ONLY Show Image
SSA387F044A
[45] Out of Stock
SSA357A005P
STRAINER
Show Image
SSA357A005P
[46] In Stock
SSA357A059T
STRAINER
[47] In Stock
SSA352B052
RECEIVER

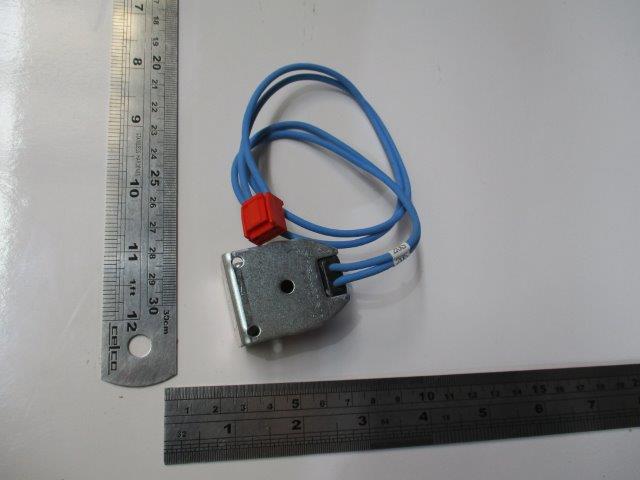

[48] In Stock
PCA382F002N
COIL ASSY
Notes: FOR 20S Show Image
PCA382F002N

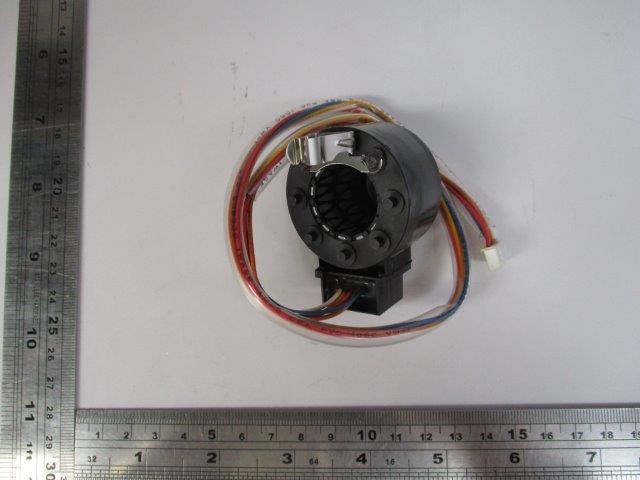

[49] In Stock
SSA382F212H
SOLENOID XP
Show Image
SSA382F212H
[50] In Stock
SSA382F229J
SOLENOID XP
Notes: FOR EEVH or SM2 Show Image
SSA382F229J
[51] In Stock
PCB382F092N
COIL ASSY
Notes: FOR SV2 Show Image
PCB382F092N
[52] Contact
PCA141A074B
PLATE BAFFL
Contact
[53] Contact
PCA141A091
PLATE,BAFFLE
Contact
