FDCP281HKXE2DKT FAN AND COMPRESSOR

Name: FDCP281HKXE2DKT FAN AND COMPRESSOR
SKU: FDCP281HKXE2DKT FAN AND COMPRESSOR
Availability: InStock

FDCP281HKXE2DKT FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

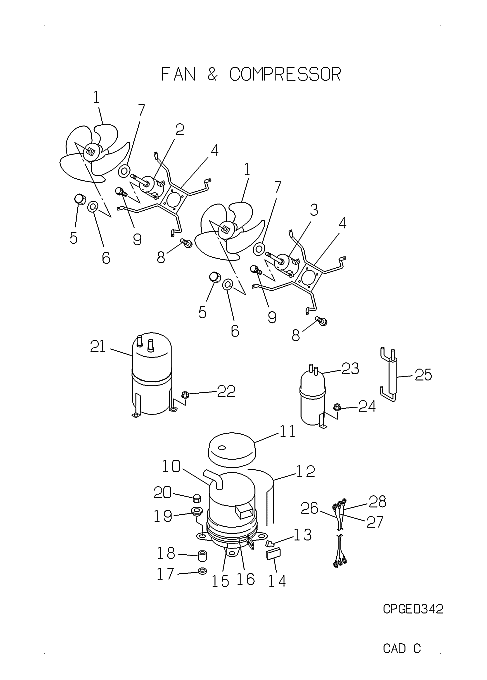

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA431B206

FAN PROPELLER

[2] In Stock

SSA511A611R

FAN MOTOR

Notes: LEFT D:6202ZZC3 B:6201ZZC3

[3] In Stock

SSA511A611S

MOTOR,FAN

Notes: FM02***KEEP PLUG FROM OLD MOTOR*** - RIGHT D:6202ZZC3 B:6201ZZC3

[4] Out of Stock

PCB116A372

MOTOR BRAKE

[5] In Stock

SSA914H014C

NUTCAP SUS

Notes: 1pc Show Image

[6] In Stock

W220G12

WASHER SUS

Notes: 1pc ONLY

[7] In Stock

W200G14

WASHER

Notes: 1pc ONLY

[8] In Stock

SSA911D207BA

BOLT&WASHER

Notes: M6X16

[9] In Stock

SSA911D207BB

BOLT&WA

Notes: M6X25

[10] Out of Stock

AAD201A027HG

CB125HV2

Substitute: USED FOR FDCP281HKXE2D-KT (407C)

[11] Contact

PCB151D052

INHSOLA COM

Contact

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[12] Contact

PCB151D053C

INSULATION,

Contact

[13] Out of Stock

ASA561B002

BLOCK,TERMINAL

[15] In Stock

PCA541B001AG

HEATER ASSY

Show Image

[16] In Stock

PCA541B001AH

HEATER ASSY

Show Image

[17] Contact

SSA935A125

SPACER

Contact

[18] Contact

SSA941C313

CUSHION,RUB

Contact

[19] Contact

SSA941C314

CUSHION,RUB

Contact

[20] Contact

SSA914H014B

NUT

Contact

Notes: 1pc

[21] Contact

SSA351A155B

ACCUMLATOR

Contact

[22] Contact

SSA914C005C

NUT

Contact

Notes: 1pc, FOR ACCUMULATOR

[23] Contact

SSA352A085B

RECEIVER

Contact

[24] In Stock

SSA914C005B

NUT FLANGE

Notes: 1pc, FOR RECEIVER

[25] Contact

PCB354A011

SEPARATOR

Contact

[26] Out of Stock

SAC567R103R

CORD IV

Notes: !U

[27] Out of Stock

SAC567R107W

CORD IV

Notes: !V

[28] Contact

SAC567R130L

CORD,IV

Contact

Notes: !W

SKU: FDCP281HKXE2DKT FAN AND COMPRESSOR Category: Uncategorised
