FDCP224HKXE2B PANEL ASSY

Name: FDCP224HKXE2B PANEL ASSY
SKU: FDCP224HKXE2B PANEL ASSY
Availability: InStock

FDCP224HKXE2B PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

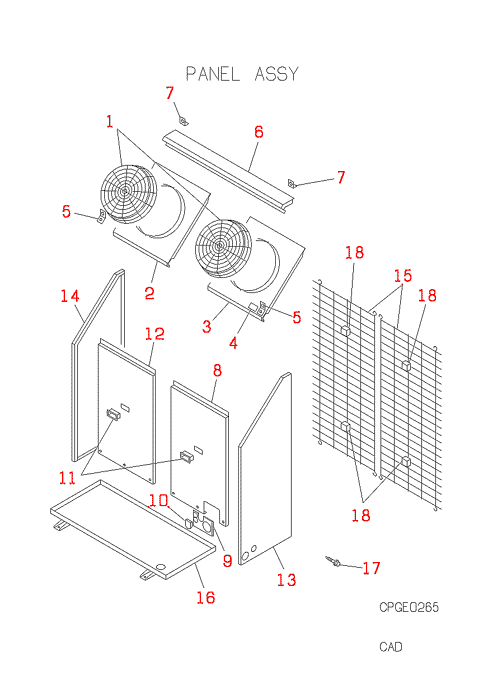

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCB131A012

GUARD FAN

[2] Out of Stock

PCB433A021

BELLMOUTH

Notes: LEFT

[3-4] Contact

PCB433A022

BELLMOUTH

Contact

Notes: ONLY FOR SUPPLY PARTS RIGHT, RIGHT

[4] In Stock

RCG011H004A

LABEL,NOTIC

Show Image

[5] Out of Stock

PCB116A046F

BRACKET SUS

Notes: FRONT

[6] Contact

PCB124A019

TOP PANEL

Contact

[7] Out of Stock

PCB116A046D

BRACKET SUS

Notes: REAR

[8] Out of Stock

PCB122A056

PANEL FRONT

Notes: RIGHT

[9-10] Contact

PCB142A253A

COVER

Contact

[10] Contact

SSA947B014A

GROMMET

Contact

Notes: 10X12

[11] Out of Stock

SSA944B002F

HANDLE

[12] Out of Stock

PCB122A056A

PANEL FRONT

Notes: LEFT

[13] Out of Stock

PCB123A065A

SIDE PANEL

[14] Out of Stock

PCB123A066

SIDE PANEL

[15] Contact

PCB131A008

FIN GUARD

Contact

Substitute: PCB131A011

[16] Contact

PCB111A042A

BASE ASSY

Contact

[17] Contact

SSA913D012A

SCREW 5/14

Contact

Notes: 8X14, 1pc ONLY

[18] Contact

PCA941G002B

CUSHION RU

Contact

SKU: FDCP224HKXE2B PANEL ASSY Category: Uncategorised
