FDCJ281HKXE2DKT HEAT EXCH. ASSY

FDCJ281HKXE2DKT HEAT EXCH. ASSY

FDCJ281HKXE2DKT HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

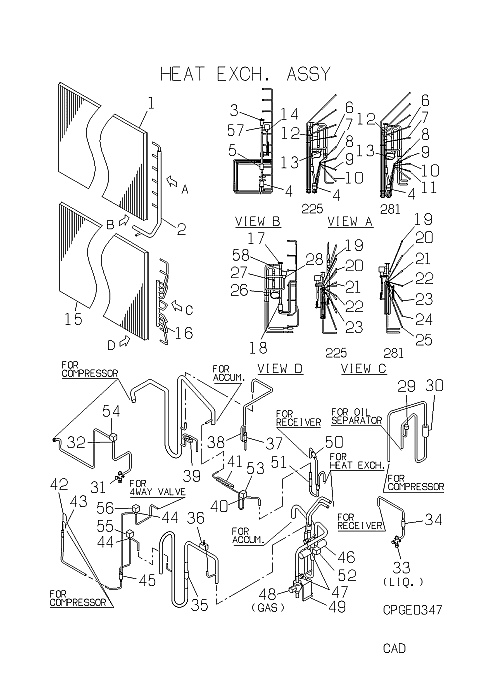

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A024J
HEAT EXCH
Contact
[1-14] Contact
PCB301A090
HEAT EXCH
Contact
Notes: UPPER
[2] Contact
PCB315D111
HEADER ASSY
Contact
Notes: !
[3] Contact
SSA387A091
EXP
Contact
[3-14] Contact
PCB387F035
VALVE ASSY,
Contact
[4] Contact
SSA315A250D
DISTRIBUTOR
Contact
[4-11] Contact
PCB315A073
DISTRI ASSY
Contact
[5] Contact
SSA315A250C
DISTRIBUTOR
Contact
[6] Contact
PCB315B521
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D3.5XD5.0 L200
[7] Contact
PCB315B473
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D2.0XD3.2 L200
[8] Contact
PCB315B474
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D2.0XD3.2 L200
[9] Contact
PCB315B475
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D1.6XD3.2 L500, !D1.6XD3.2 L200, FDCJ280HKXE2D-K Needs !D1.6XD3.2 L500
[10] Contact
PCB315B476
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D1.6XD3.2 L200
[11] Contact
PCB315B477
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D3.0XD4.0 L200
[12] Out of Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[13] Contact
PCB315B543
CAPILLARY
Contact
Notes: !D1.1XD2.5 L600
[14] Contact
SSA382A025
VALVE,2WAY
Contact
Substitute: RC08689 Notes: SV5-1
[15] Contact
PCB311A024C
HEAT EXCH
Contact
[15-28] Contact
PCB301A091
HEAT EXCH
Contact
Notes: LOWER
[16] Contact
PCB315D113
HEADER ASSY
Contact
Notes: !
[17] Contact
SSA387A091
EXP
Contact
[17-28] Contact
PCB387F036
VALVE ASSY,
Contact
[18] Contact
SSA315A251A
DISTRIBUTOR
Contact
[18-25] Contact
PCB315A074A
DISTRI ASSY
Contact
[19] Contact
P210V22X200
CAPILLARY
Contact
Notes: !D2.2XD3.2 L200
[20] Contact
PCB315B478
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D3.5XD5.0 L200
[21] Contact
PCB315B479
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D2.6XD4.0 L200
[22] Contact
PCB315B480
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D3.0XD5.0 L200
[23] Contact
PCB315B481
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D2.6XD4.0 L200
[24] Contact
PCB315B482
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D2.2XD3.2 L200
[25] Contact
PCB315B522
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D3.0XD4.0 L200, !D3.0XD5.0 L200, FDCJ280HKXE2D-K Needs !D3.0XD4.0 L200
[26] Contact
PCB315B543A
CAPILLARY
Contact
Notes: !D1.1XD2.5 L600
[27] Out of Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[28] Contact
SSA382A025
VALVE,2WAY
Contact
Substitute: RC08689 Notes: SV5-2
[29] In Stock
SSA532A032CF
SWITCH H P
Notes: 63H1, 63H1-1,2 Show Image
SSA532A032CF
[30] Contact
SSA325A001BF
MUFFLER
Contact
[31] Contact
SSA381A034N
VALVE SERVICE
Contact
[32] Contact
SSA382A148
VALVE 2WAY
Contact
Notes: SV3
[33] Contact
SSA381A035D
VALVE SERVI
Contact
Notes: LIQUID
[34] Contact
SSA357A002B
STRAINER
Contact
[35] In Stock
SSA385A018A
VALVE CHECK
[36] Out of Stock
SSA532A018D
SWITCH H P
Notes: 63H2
[37] Contact
SSA357A010A
STRAINER
Contact
[37-38] Contact
PCB315B541
CAPI 10X500
Contact
[38] Contact
PCB315B305B
CAPILLARY
Contact
Notes: !D1.0XD2.0 L500
[39] Contact
PCB315B303B
CAPILLARY
Contact
Notes: !D3.5XD5.0 L100
[40] In Stock
SSA382A088
VALVE(2WAY)
Notes: SV1 Show Image
SSA382A088
[40-41] In Stock
SSA382A088
VALVE(2WAY)
Notes: SV1 Show Image
SSA382A088
[41] Contact
PCB315B304B
CAPILLARY
Contact
Notes: !D3.0XD4.0 L300
[42] Contact
PCB315B558
CAPILLARY
Contact
Notes: !D2.6XD4.0 L300
[43] Contact
PCB315B559
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[44] In Stock
SSA382A070
VALVE 2WAY
Notes: SV6,7, DOES NOT COME WITH "STRAINER" Show Image
SSA382A070
[45] Contact
SSA357A008AJ
STRAINER
Contact
[46] In Stock
SSA382C075
VALVE 4WAY
Notes: 20S, 20s - 4 way valve
[47] In Stock
SSA327B003
VALVE,SERVICE
Show Image
SSA327B003
[48] In Stock
SSA381A715D
VALVE SERVI
Notes: GAS
[49] Contact
PCB116A318
BRACKET(S,V
Contact
[50] In Stock
SSA357A007A
STRAINER
Show Image
SSA357A007A
[51] In Stock
SSA357A059B
STRAINER
[52] Out of Stock
PCB382F076D
COIL
Notes: FOR 20S
[53] Out of Stock
PCB382F077A
COIL SOLENO
Notes: FOR SV1
[54] Out of Stock
PCB382F058C
SOLENOID
Notes: FOR SV3
[55] Out of Stock
PCB382F078B
COIL
Notes: FOR SV6
[56] Out of Stock
PCB382F078C
COIL
Notes: FOR SV7
[57] Out of Stock
PCB382F061G
COIL SOLENO
Notes: FOR SV5-1
[58] Out of Stock
PCB382F061H
COIL SOLENO
Notes: FOR SV5-2
