FDCJ280HKXE2D FAN ASSY AND COMPRESSOR

Name: FDCJ280HKXE2D FAN ASSY AND COMPRESSOR
SKU: FDCJ280HKXE2D FAN ASSY AND COMPRESSOR
Availability: InStock

FDCJ280HKXE2D FAN ASSY AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

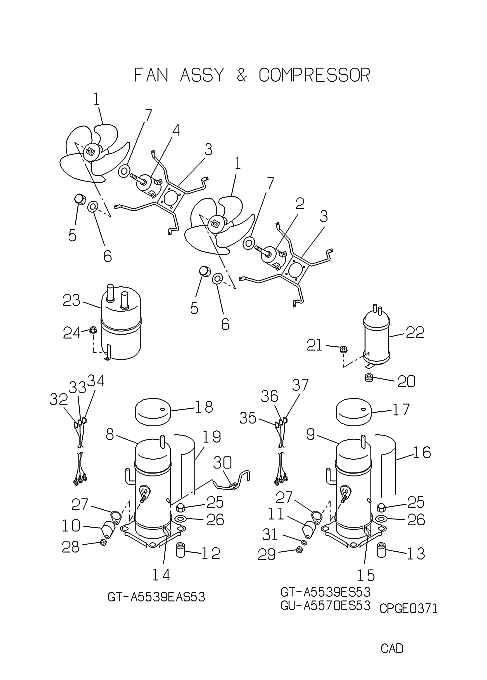

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA431B206

FAN PROPELLER

Notes: PROPELLER

[2] In Stock

SSA511A611S

MOTOR,FAN

Notes: MOTOR,AC, FM02***KEEP PLUG FROM OLD MOTOR*** - RIGHT D:6202ZZC3 B:6201ZZC3

[3] Out of Stock

PCB116A372

MOTOR BRAKE

Notes: BASE,MOTOR

[4] In Stock

SSA511A611R

FAN MOTOR

Notes: MOTOR,AC, LEFT D:6202ZZC3 B:6201ZZC3

[5] In Stock

SSA914H014C

NUTCAP SUS

Notes: NUT,CAP, 1pc Show Image

[6] In Stock

W220G12

WASHER SUS

Notes: WASHER,SPG, 1pc ONLY

[7] In Stock

W200G14

WASHER

Notes: WASHER, 1pc ONLY

[8] In Stock

AGT201A311SM

GTA5539EAS5

Notes: COMPRESSOR ASSY, ***COMPRESSORS CANNOT BE RETURNED***

[9] In Stock

AGF201A211SM

GUA5570ES57

Notes: COMPRESSOR ASSY, ***COMPRESSORS CANNOT BE RETURNED***

[10] Out of Stock

AGR947K001

COVER TERMINAL

Notes: COVER,TERMINAL

[11] Out of Stock

AGR947K002

TERMINAL C

Notes: COVER,TERMINAL

[12] In Stock

SSA941C356

CUSHION,RUBBER

Notes: CUSHION,RUBBER, 1pc only Show Image

[13] Contact

SSA941C158

CUSHION RUB

Contact

Notes: CUSHION,RUBBER

[14] In Stock

PCA541B011N

HEATER,CRAN

Notes: HEATER ASSY(CRANK) Show Image

[15] In Stock

PCA541B011T

HEATER,CRAN

Notes: HEATER ASSY(CRANK) Show Image

[16] Contact

PCB151D060A

INSUL CONP

Contact

Notes: INSULATION,COMP

[17] Contact

PCB151D064A

INSULATION,

Contact

Notes: INSULATION,COMP

[18] Out of Stock

PCB151D064

COMP INSULA

Notes: INSULATION,COMP

[19] Out of Stock

PCB151D065

COMP INSUL,

Notes: INSULATION,COMP

[20] In Stock

SSA941B003

CUSHION RUB

Notes: CUSHION,RUBBER, FOR ACCUMULATOR

[21] In Stock

SSA914C005B

NUT FLANGE

Notes: NUT,FLANGE, 1pc, FOR RECEIVER

[22] In Stock

SSA352A078A

RECEIVER ASSY

Notes: RECEIVER ASSY

[23] Contact

SSA351A186

ACCLMULATOR

Contact

Notes: ACCUMULATOR

[24] Contact

SSA914C005C

NUT

Contact

Notes: NUT,FLANGE, 1pc, FOR ACCUMULATOR

[25] In Stock

SSA914H014A

NUT

Notes: NUT,CAP, 1pc Show Image

[26] In Stock

SSA915H039

WASHER

Notes: WASHER, 1pc ONLY Show Image

[27] Out of Stock

AGR932C001

GASKET

Substitute: OUT OF PRODUCTION Notes: GASKET,COVER

[28] In Stock

SSA914C016

NUT

Notes: NUT,FLANGE, 1pc Show Image

[29] Contact

SSA914C003

NUT

Contact

Notes: NUT,FLANGE, 1pc

[30] In Stock

PCB315B303C

CAPILLARY

Notes: CAPILLARY, LENGTH 6.5CM Show Image

[31] Contact

AHA932C003

GASKET,COVER(WASHE

Contact

Substitute: RM80090 Notes: GASKET,COVER(WASHE, 1pc ONLY

[32] Out of Stock

PCB504A201R

WIRING ASSY

Notes: WIRING ASSY

[33] Out of Stock

PCB504A201S

WIRING ASSY

Notes: WIRING ASSY

[34] Contact

PCB504A201T

WIRING ASSY

Contact

Notes: WIRING ASSY

[35] Contact

PCB504A201W

WIRING ASSY

Contact

Notes: WIRING ASSY

[36] Out of Stock

PCB504A201Y

WIRING ASSY

Notes: WIRING ASSY

[37] Out of Stock

PCB504A201Z

WIRING ASSY

Notes: WIRING ASSY

SKU: FDCJ280HKXE2D FAN ASSY AND COMPRESSOR Category: Uncategorised
