FDCJ224HKXE2D-K HEAT EXCH. ASSY

FDCJ224HKXE2D-K HEAT EXCH. ASSY

FDCJ224HKXE2D-K HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

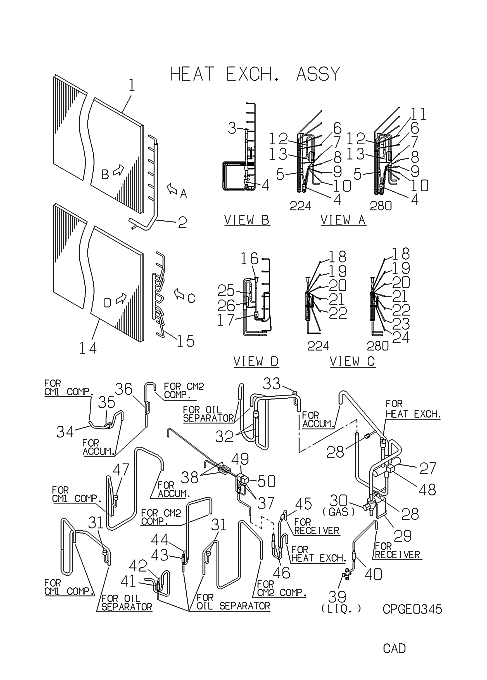

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A024AA
HEAT EXCH(A
Contact
[1-13] Contact
PCB301A082B
HEAT EXCH A
Contact
Notes: UPPER
[2] Contact
PCB315D115
HEADER ASSY,GAS
Contact
[3] Contact
SSA387A090
EXP
Contact
[3-13] Contact
PCB387F027
EXP
Contact
[4] Contact
SSA315A250
DISTRIBUTOR
Contact
[4-10] Contact
PCB315A075
DISTRI ASSY
Contact
[5] Contact
SSA315A250C
DISTRIBUTOR
Contact
[6] Contact
PCB315B512
CAPILARY AS
Contact
Substitute: PCB315A075 Notes: !D2.0XD3.2 L200
[7] Contact
PCB315B513
CAPILARY AS
Contact
Substitute: PCB315A075 Notes: !D2.6XD4.0 L200
[8] Contact
PCB315B514
CAPILARY AS
Contact
Substitute: PCB315A075 Notes: !D2.6XD4.0 L200
[9] Contact
PCB315B515
CAPILARY AS
Contact
Substitute: PCB315A075 Notes: !D2.0XD3.2 L200
[10] Contact
PCB315B516
CAPILARY AS
Contact
Substitute: PCB315A075 Notes: !D3.5XD5.0 L200
[12] Out of Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[13] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[14] Contact
PCB311A024AB
HEAT EXCH(A
Contact
[14-26] Contact
PCB301A083B
HEAT EXCH A
Contact
Notes: LOWER
[15] Contact
PCB315D116
HEADER ASSY,GAS
Contact
[16] Contact
SSA387A090
EXP
Contact
[16-26] Contact
PCB387F028
EXP
Contact
[17] Contact
SSA315A251
DISTRIBUTOR
Contact
[17-22] Contact
PCB315A076
DISTRI ASSY
Contact
[18] Contact
P210V22X200
CAPILLARY
Contact
Notes: !D2.2XD3.2 L200
[19] Contact
PCB315B517
CAPILARY AS
Contact
Substitute: PCB315A076 Notes: !D2.2XD3.2 L200
[20] Contact
PCB315B518
CAPILARY AS
Contact
Substitute: PCB315A076 Notes: !D2.0XD3.2 L200
[21] Contact
PCB315B519
CAPILARY AS
Contact
Substitute: PCB315A076 Notes: !D2.0XD3.2 L200
[22] Contact
PCB315B520
CAPILARY AS
Contact
Substitute: PCB315A076
[25] Out of Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[26] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[27] In Stock
SSA382C075
VALVE 4WAY
Notes: 20S, 20s - 4 way valve
[28] In Stock
SSA327B003
VALVE,SERVICE
Show Image
SSA327B003
[29] Contact
PCB116A318
BRACKET(S,V
Contact
[30] Out of Stock
SSA381A715C
VALVE SERVI
Notes: GAS
[31] In Stock
SSA532A032CF
SWITCH H P
Notes: 63H1, 63H1-1,2 Show Image
SSA532A032CF
[32] Out of Stock
SSA385A035
VALVE CHECK
[33] Out of Stock
SSA532A032HC
SWITCH
Notes: 63H2
[34-35] Contact
PCB321C579F
PIPE(REF)
Contact
[35] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[36] Contact
PCB315B437
CAPILARY AS
Contact
Notes: !D2.4XD4.0 L300
[37] In Stock
SSA382A088
VALVE(2WAY)
Notes: SV1 Show Image
SSA382A088
[37-38] Out of Stock
PCB382A088
VALVE ASSY(2WAY)
[38] Contact
PCB315B304
CAPILARY AS
Contact
Notes: !D1.6XD3.2 L500
[39] Contact
SSA381A035D
VALVE SERVI
Contact
Notes: LIQUID
[40] Contact
SSA357A002B
STRAINER
Contact
[41] Contact
SSA357A010G
STRAINER
Contact
[41-42] Out of Stock
PCB315B568B
CAPILLARY A
[42] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: !D1.2XD2.5 L500
[43] Contact
SSA357A010G
STRAINER
Contact
[43-44] Out of Stock
PCB315B628
CAPILLARY A
[44] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: !D1.2XD2.5 L500
[45] In Stock
SSA357A007A
STRAINER
Show Image
SSA357A007A
[46] In Stock
SSA357A059B
STRAINER
[47] Contact
SSA532B024A
SWITCH LP
Contact
Notes: 63L
[48] Out of Stock
PCB382F065N
COIL,SOLENO
[49] Out of Stock
PCB382F065R
COIL,SOLENO
[50] Out of Stock
PCB382F065S
COIL,SOLENO
