FDCJ224HKXE2D-B FAN AND COMPRESSOR

Name: FDCJ224HKXE2D-B FAN AND COMPRESSOR
SKU: FDCJ224HKXE2D-B FAN AND COMPRESSOR
Availability: InStock

FDCJ224HKXE2D-B FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

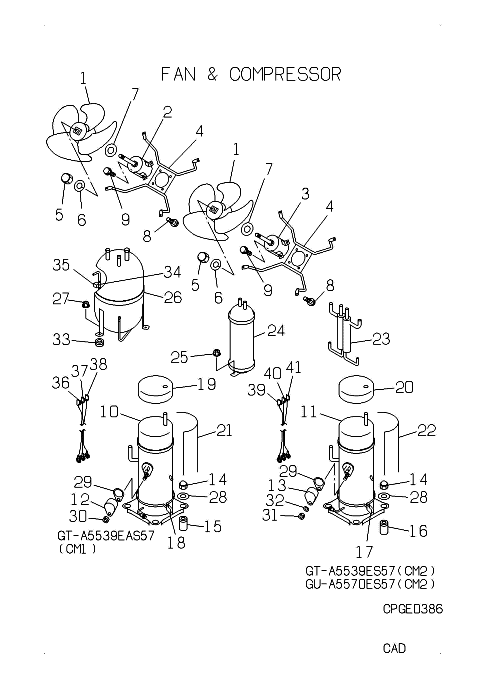

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA431B206

FAN PROPELLER

Notes: PROPELLER

[2] In Stock

SSA511A611R

FAN MOTOR

Notes: MOTOR,AC, LEFT D:6202ZZC3 B:6201ZZC3

[3] In Stock

SSA511A611S

MOTOR,FAN

Notes: MOTOR,AC, FM02***KEEP PLUG FROM OLD MOTOR*** - RIGHT D:6202ZZC3 B:6201ZZC3

[4] Out of Stock

PCB116A372

MOTOR BRAKE

Notes: BASE,MOTOR

[5] In Stock

SSA914H014C

NUTCAP SUS

Notes: NUT,CAP, 1pc Show Image

[6] In Stock

W220G12

WASHER SUS

Notes: WASHER,SPG, 1pc ONLY

[7] In Stock

W200G14

WASHER

Notes: WASHER, 1pc ONLY

[8] In Stock

SSA911D207BA

BOLT&WASHER

Notes: BOLT & WASHER,CRS

[9] In Stock

SSA911D207BB

BOLT&WA

Notes: BOLT & WASHER,CRS

[10] In Stock

AGT201A311SM

GTA5539EAS5

Notes: COMPRESSOR ASSY, ***COMPRESSORS CANNOT BE RETURNED***

[11] Out of Stock

AGT201A211SM

GTA5539ES57

Notes: COMPRESSOR ASSY

[12] Out of Stock

AGR947K001

COVER TERMINAL

Notes: COVER,TERMINAL

[13] Out of Stock

AGR947K001

COVER TERMINAL

Notes: COVER,TERMINAL

[14] In Stock

SSA914H014A

NUT

Notes: NUT,CAP, 1pc Show Image

[15] In Stock

SSA941C356

CUSHION,RUBBER

Notes: CUSHION,RUBBER, 1pc only Show Image

[16] Contact

SSA941C158

CUSHION RUB

Contact

Notes: CUSHION,RUBBER

[17] Out of Stock

PCA541B011S

HEATER,CRAN

Notes: HEATER ASSY(CRANK)

[18] In Stock

PCA541B011N

HEATER,CRAN

Notes: HEATER ASSY(CRANK) Show Image

[19] Out of Stock

PCB151D064

COMP INSULA

Notes: INSULATION,COMP

[20] Out of Stock

PCB151D064

COMP INSULA

Notes: INSULATION,COMP

[21] Out of Stock

PCB151D065

COMP INSUL,

Notes: INSULATION,COMP

[22] Contact

PCB151D059A

INSULATION,

Contact

Notes: INSULATION,COMP

[23] Contact

PCB354A014

SEPARATOR ASSY,OIL

Contact

Notes: SEPARATOR ASSY,OIL

[24] In Stock

SSA352A078A

RECEIVER ASSY

Notes: RECEIVER ASSY

[25] In Stock

SSA914C005B

NUT FLANGE

Notes: NUT,FLANGE, 1pc, FOR RECEIVER

[26] Contact

SSA351A186C

ACCUMULATOR

Contact

Notes: ACCUMULATOR

[27] Contact

SSA914C005C

NUT

Contact

Notes: NUT,FLANGE, 1pc, FOR ACCUMULATOR

[28] In Stock

SSA915H039

WASHER

Notes: WASHER, 1pc ONLY Show Image

[29] Out of Stock

AGR932C001

GASKET

Substitute: OUT OF PRODUCTION Notes: GASKET,COVER

[30] In Stock

SSA914C016

NUT

Notes: NUT,FLANGE, 1pc Show Image

[31] In Stock

SSA914C016

NUT

Notes: NUT,FLANGE, 1pc Show Image

[33] In Stock

SSA941B003

CUSHION RUB

Notes: CUSHION,RUBBER, FOR ACCUMULATOR

[34] Contact

SSA382A240

SOLEMNO 2WA

Contact

Notes: VALVE,S(2WAY)

[35] Contact

PCB382F085A

COIL ASSY,S

Contact

Notes: COIL ASSY,SOLENOID

[36] Out of Stock

PCB504A201R

WIRING ASSY

Notes: WIRING ASSY

[37] Out of Stock

PCB504A201S

WIRING ASSY

Notes: WIRING ASSY

[38] Contact

PCB504A201T

WIRING ASSY

Contact

Notes: WIRING ASSY

[39] Contact

PCB504A201W

WIRING ASSY

Contact

Notes: WIRING ASSY

[40] Out of Stock

PCB504A201Y

WIRING ASSY

Notes: WIRING ASSY

[41] Out of Stock

PCB504A201Z

WIRING ASSY

Notes: WIRING ASSY

SKU: FDCJ224HKXE2D-B FAN AND COMPRESSOR Category: Uncategorised
