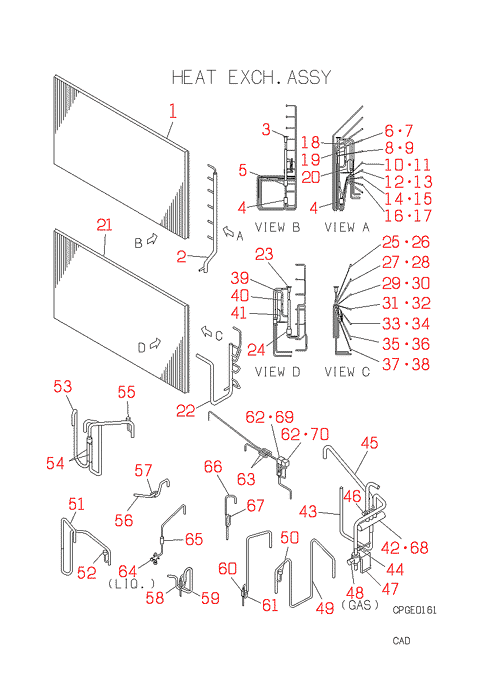

FDCJ224HKXE2 HEAT EXCH. ASSY

Name: FDCJ224HKXE2 HEAT EXCH. ASSY
SKU: FDCJ224HKXE2 HEAT EXCH. ASSY
Availability: InStock

FDCJ224HKXE2 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCB311A024L

HEAT EXCH

Contact

Notes: HEAT EXCH(AIR)

[1-20] Contact

PCB301A082

HEAT EXCH

Contact

Notes: HEAT EXCH ASSY,AIR

[2] Contact

PCB315D115

HEADER ASSY,GAS

Contact

Notes: HEADER ASSY,GAS

[3] Contact

SSA387A090

EXP

Contact

Notes: VALVE,EXPANSION

[4] Contact

SSA315A250

DISTRIBUTOR

Contact

Notes: DISTRIBUTOR

[4-15] Contact

PCB315A075

DISTRI ASSY

Contact

Notes: DISTRIBUTOR ASSY

[5] Contact

SSA315A250C

DISTRIBUTOR

Contact

Notes: DISTRIBUTOR

[6-7] Contact

PCB321C219

Contact

Notes: PIPE ASSY

[7] Contact

PCB315B512

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[8-9] Contact

PCB321C220

Contact

Notes: PIPE ASSY

[9] Contact

PCB315B513

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[10-11] Contact

PCB321C221

Contact

Notes: PIPE ASSY

[11] Contact

PCB315B514

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[12-13] Contact

PCB321C222

Contact

Notes: PIPE ASSY

[13] Contact

PCB315B515

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[14-15] Contact

PCB321C223

Contact

Notes: PIPE ASSY

[15] Contact

PCB315B516

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[18-19] Contact

PCB304A078B

Contact

Notes: PIPING ASSY

[19] Out of Stock

SSA385A052

VALVE,CHECK

Notes: VALVE,CHECK Show Image

[20] Contact

PCB315B344

CAPILARY AS

Contact

Notes: CAPILLARY

[21] Out of Stock

PCB311A024M

HEAT EXCH

Notes: HEAT EXCH(AIR)

[21-41] Contact

PCB301A083

HEAT EXCH

Contact

Notes: HEAT EXCH ASSY,AIR

[22] Contact

PCB315D116

HEADER ASSY,GAS

Contact

Notes: HEADER ASSY,GAS

[23] Contact

SSA387A090

EXP

Contact

Notes: VALVE,EXPANSION

[24] Contact

SSA315A251

DISTRIBUTOR

Contact

Notes: DISTRIBUTOR

[24-34] Contact

PCB315A076

DISTRI ASSY

Contact

Notes: DISTRIBUTOR ASSY

[25-26] Contact

PCB321C224

Contact

Notes: PIPE ASSY

[26] Contact

P210V22X200

CAPILLARY

Contact

Notes: CAPILLARY, !D2.2XD3.2 L200

[27-28] Contact

PCB321C225

Contact

Notes: PIPE ASSY

[28] Contact

PCB315B517

CAPILARY AS

Contact

Substitute: PCB315A076 Notes: CAPILLARY

[29-30] Contact

PCB321C226

Contact

Notes: PIPE ASSY

[30] Contact

PCB315B518

CAPILARY AS

Contact

Substitute: PCB315A076 Notes: CAPILLARY

[31-32] Contact

PCB321C227

Contact

Notes: PIPE ASSY

[32] Contact

PCB315B519

CAPILARY AS

Contact

Substitute: PCB315A076 Notes: CAPILLARY

[33-34] Contact

PCB321C228

Contact

Notes: PIPE ASSY

[34] Contact

PCB315B520

CAPILARY AS

Contact

Substitute: PCB315A076 Notes: CAPILLARY

[39-40] Contact

PCB304A078B

Contact

Notes: PIPING ASSY

[40] Out of Stock

SSA385A052

VALVE,CHECK

Notes: VALVE,CHECK Show Image

[41] Contact

PCB315B344

CAPILARY AS

Contact

Notes: CAPILLARY

[42] In Stock

SSA382C075

VALVE 4WAY

Notes: VALVE,S(4WAY), 20s - 4 way valve

[42-48] Contact

PCB382C040A

VALVE A,4WA

Contact

Notes: VALVE ASSY(4WAY)

[43-44] Contact

PCB321B688

PIPE (D)

Contact

Notes: PIPE(D)

[44] In Stock

SSA327B003

VALVE,SERVICE

Notes: VALVE,SERVICE Show Image

[45-46] Contact

PCB321B691

PIPE (S)

Contact

Notes: PIPE(S)

[46] In Stock

SSA327B003

VALVE,SERVICE

Notes: VALVE,SERVICE Show Image

[47] Contact

PCB116A061B

BRACKET

Contact

Notes: BRACKET(S,V)

[48] Out of Stock

SSA381A715C

VALVE SERVI

Notes: VALVE,SERVICE

[49-50] Contact

PCB321C350

Contact

Notes: PIPE,DISCHARGE(2)

[50] In Stock

SSA532A032CF

SWITCH H P

Notes: SWITCH,HP, 63H1-1,2 Show Image

[51-52] Contact

PCB321C348

PIPE,DISCHA

Contact

Notes: PIPE,DISCHARGE(1)

[52] In Stock

SSA532A032CF

SWITCH H P

Notes: SWITCH,HP, 63H1-1,2 Show Image

[53-55] Contact

PCB321C352

PIPE ASSY

Contact

Notes: PIPE ASSY(D)

[54] Out of Stock

SSA385A035

VALVE CHECK

Notes: VALVE,CHECK

[55] Out of Stock

SSA532A032HC

SWITCH

Notes: SWITCH,HP, 63H2

[56-57] Contact

PCB321B719

Contact

Notes: PIPE(REF)

[57] Contact

PCB315B303

CAPILA,ASSY

Contact

Notes: CAPILLARY

[58] Contact

SSA357A010G

STRAINER

Contact

Notes: STRAINER

[58-59] Contact

PCB315B298

CAPILA,ASSY

Contact

Notes: CAPILLARY ASSY(1)

[59] Contact

PCB315B305A

CAPILARY AS

Contact

Notes: CAPILLARY

[60] Contact

SSA357A010G

STRAINER

Contact

Notes: STRAINER

[60-61] Contact

PCB315B299

CAPILA,ASSY

Contact

Notes: CAPILLARY ASSY(2)

[61] Contact

PCB315B305A

CAPILARY AS

Contact

Notes: CAPILLARY

[62] In Stock

SSA382A088

VALVE(2WAY)

Notes: VALVE(2WAY), SV1 Show Image

[62-63] Out of Stock

PCB382A088

VALVE ASSY(2WAY)

Notes: VALVE ASSY(2WAY)

[63] Contact

PCB315B304

CAPILARY AS

Contact

Notes: CAPILLARY

[64] Contact

SSA381A035D

VALVE SERVI

Contact

Notes: VALVE,SERVICE, LIQUID

[64-65] Contact

PCB381A038

VALVE,SERVI

Contact

Notes: VALVE ASSY,SERVICE

[65] Contact

SSA357A002B

STRAINER

Contact

Notes: STRAINER

[66-67] Contact

PCB315B300A

CAP 2.4X300

Contact

Notes: CAPILLARY ASSY

[67] Contact

PCB315B437

CAPILARY AS

Contact

Notes: CAPILLARY

[68] Out of Stock

PCB382F065N

COIL,SOLENO

Notes: COIL ASSY,SOLENOID

[69] Out of Stock

PCB382F065R

COIL,SOLENO

Notes: COIL ASSY,SOLENOID

[70] Out of Stock

PCB382F065S

COIL,SOLENO

Notes: COIL ASSY,SOLENOID
