FDCJ224HKXE2 FAN AND COMPRESSOR

Name: FDCJ224HKXE2 FAN AND COMPRESSOR
SKU: FDCJ224HKXE2 FAN AND COMPRESSOR
Availability: InStock

FDCJ224HKXE2 FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

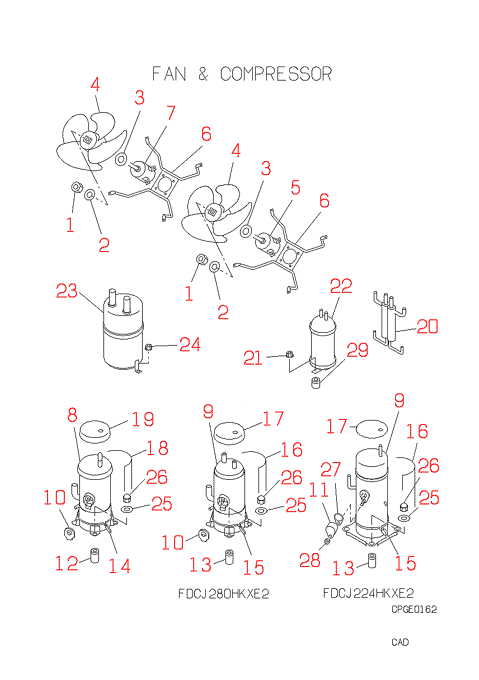

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA914H014C

NUTCAP SUS

Notes: NUT,CAP, 1pc Show Image

[2] In Stock

W220G12

WASHER SUS

Notes: WASHER,SPG, 1pc ONLY

[3] In Stock

W200G14

WASHER

Notes: WASHER, 1pc ONLY

[4] In Stock

SSA431B206

FAN PROPELLER

Notes: PROPELLER

[5] In Stock

SSA511A611M

FAN,MOTOR

Notes: MOTOR,AC, RIGHT D:6202ZZC3 N:6201ZZC3

[6] Contact

PCB116A286

BASE M0T0R

Contact

Substitute: PCB116A372 Notes: BASE,MOTOR

[7] In Stock

SSA511A611R

FAN MOTOR

Notes: MOTOR,AC, LEFT D:6202ZZC3 B:6201ZZC3

[8] In Stock

AGT201A110F

GT5539EAS02

Notes: COMPRESSOR ASSY, ***COMPRESSORS CANNOT BE RETURNED***

[9] Contact

AGT201A211SB

GTA5539ES42

Contact

Substitute: AGT201A211SN Notes: COMPRESSOR ASSY

[10] Out of Stock

AAD947K003

COVER

Notes: COVER,TERMINAL

[11] Out of Stock

AGR947K001

COVER TERMINAL

Notes: COVER,TERMINAL

[12] In Stock

SSA941C356

CUSHION,RUBBER

Notes: CUSHION,RUBBER, 1pc only Show Image

[13] Contact

SSA941C158

CUSHION RUB

Contact

Notes: CUSHION,RUBBER

[14] In Stock

PCA541B011N

HEATER,CRAN

Notes: HEATER ASSY(CRANK) Show Image

[15] Contact

PCA541B011F

HEATER ASSY

Contact

Notes: HEATER ASSY(CRANK)

[16] Contact

PCB151D054

INSUL CONP

Contact

Notes: INSULATION,COMP

[17] Contact

PCB151D049B

INSUL CONP

Contact

Notes: INSULATION,COMP

[18] Contact

PCB151D049

INSOLAT CON

Contact

Notes: INSULATION,COMP

[19] Contact

PCB151D050

INSULATION

Contact

Notes: INSULATION,COMP

[20] Contact

PCB354A010A

SEPARAT OIL

Contact

Notes: SEPARATOR,OIL

[21] In Stock

SSA914C005B

NUT FLANGE

Notes: NUT,FLANGE, 1pc, FOR RECEIVER

[22] In Stock

SSA352A078A

RECEIVER ASSY

Notes: RECEIVER ASSY

[23] In Stock

SSA351A154H

ACCUMLATOR

Notes: ACCUMULATOR

[24] Contact

SSA914C005C

NUT

Contact

Notes: NUT,FLANGE, 1pc, FOR ACCUMULATOR

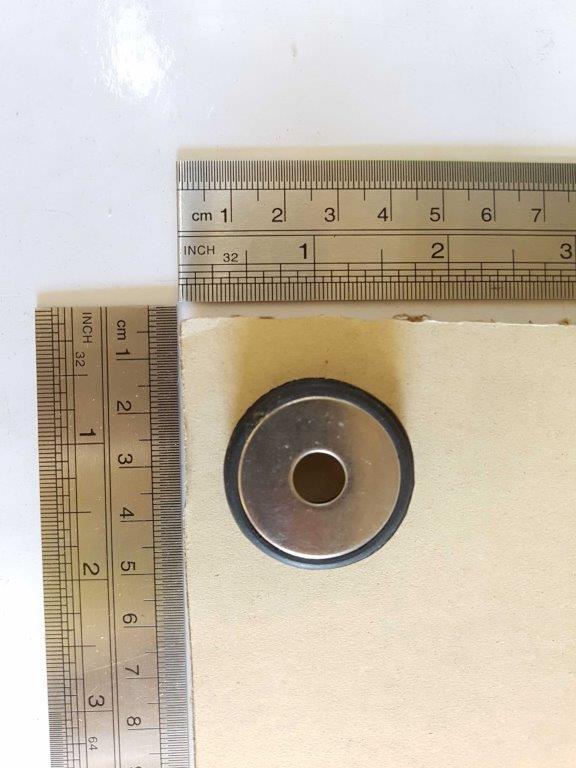

[25] In Stock

SSA915H039

WASHER

Notes: WASHER, 1pc ONLY Show Image

[26] In Stock

SSA914H014A

NUT

Notes: NUT,CAP, 1pc Show Image

[27] Out of Stock

AGR932C001

GASKET

Substitute: OUT OF PRODUCTION Notes: GASKET,COVER

[28] In Stock

SSA914C016

NUT

Notes: NUT,FLANGE, 1pc Show Image

[29] In Stock

SSA941B003

CUSHION RUB

Notes: CUSHION,RUBBER, FOR ACCUMULATOR
