FDCJ140HKXE2B HEAT EXCH. ASSY

Name: FDCJ140HKXE2B HEAT EXCH. ASSY
SKU: FDCJ140HKXE2B HEAT EXCH. ASSY
Availability: InStock

FDCJ140HKXE2B HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

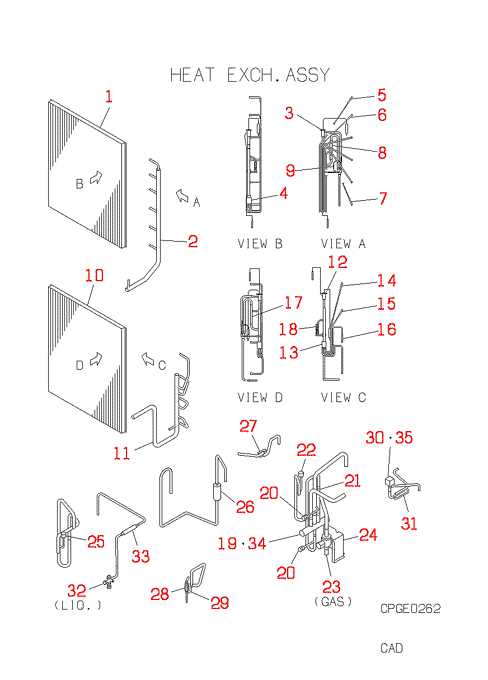

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCB311A023K

HEAT EXCH

Contact

[1-9] Out of Stock

PCB301A075M

HEAT EXCH

Substitute: OUT OF PRODUCTION Notes: UPPER, UPPER HEAT EXCHANGER

[2] Contact

PCB315D099

HEADER ASSY

Contact

[3] Contact

SSA387A089

EXP

Contact

[3-9] Contact

PCB387F017A

EXP

Contact

[4] Contact

SSA315A251

DISTRIBUTOR

Contact

[4-7] Contact

PCB315A067

DISTRIBUTOR

Contact

[5] Contact

P210V24X200

CAPILLARY

Contact

Notes: !D2.4XD4.0 L200

[6] Contact

P210V24X200

CAPILLARY

Contact

Notes: !D2.4XD4.0 L200

[7] Contact

P210V26X200

CAPILLARY

Contact

Notes: !D2.6XD4.0 L200

[8] Out of Stock

SSA385A052

VALVE,CHECK

Show Image

[9] Contact

PCB315B344

CAPILARY AS

Contact

Notes: !D1.1XD2.5 L600

[10] Contact

PCB311A023C

HEAT EXCH

Contact

[10-18] Out of Stock

PCB301A075A

HEAT EXCH

Substitute: OUT OF PRODUCTION Notes: LOWER, LOWER HEAT EXCHANGER

[11] Contact

PCB315D101

HEADER ASSY

Contact

[12] Contact

SSA387A089

EXP

Contact

[12-18] Contact

PCB387F018A

EXP

Contact

[13] Contact

SSA315A250

DISTRIBUTOR

Contact

[13-16] Contact

PCB315A068

DISTRIBUTOR

Contact

[14] Contact

P211V30X200

CAPILLARY

Contact

Notes: !D3.0XD4.0 L200

[15] Contact

PCB315B526

CAPILLARY

Contact

Notes: !D2.8XD4.0 L200

[16] Contact

PCB315B527

CAPILLARY

Contact

Notes: !D3.0XD4.0 L200

[17] Out of Stock

SSA385A052

VALVE,CHECK

Show Image

[18] Contact

PCB315B344A

CAPILARY AS

Contact

Notes: !D1.1XD2.5 L600

[19] Out of Stock

SSA382C044

VALVE 4WAY

Substitute: OUT OF PRODUCTION Notes: 20S Show Image

[19-24] Out of Stock

SSA382C044

VALVE 4WAY

Substitute: OUT OF PRODUCTION Notes: 20S Show Image

[20] In Stock

SSA327B003

VALVE,SERVICE

Show Image

[21] Out of Stock

SSA385A035

VALVE CHECK

[22] Out of Stock

SSA532A032HC

SWITCH

Notes: 63H2

[23] Contact

SSA381A711

VALVE SERVI

Contact

Substitute: SSA381A711A Notes: GAS(DISCHARGE)

[24] Contact

PCB116A300

BRACKET(S,V

Contact

[25] In Stock

SSA532A032CF

SWITCH H P

Notes: 63H1, 63H1-1,2 Show Image

[26] Contact

SSA325A001BF

MUFFLER

Contact

[27] Contact

PCB315B303

CAPILA,ASSY

Contact

Notes: !D2.0XD3.2 L300

[28] Contact

SSA357A010G

STRAINER

Contact

[28-29] Contact

PCB315B567

CAPILLARY A

Contact

[29] Contact

PCB315B421

CAPILARY AS

Contact

Notes: !D1.3XD2.5 L500

[30] In Stock

SSA382A088

VALVE(2WAY)

Notes: SV1 Show Image

[30-31] Contact

PCB382A089

VALVE,2WAY

Contact

[31] Contact

PCB315B304

CAPILARY AS

Contact

Notes: !D1.6XD3.2 L500

[32] Contact

SSA381A034A

VALVE SERVI

Contact

Notes: LIQID

[33] Contact

SSA357A009

STRAINER

Contact

Substitute: RE66450

[34] Contact

PCB382F065M

COIL,SOLENO

Contact

Notes: 20S

[35] Contact

PCB382F065P

COIL,SOLENO

Contact

Notes: SV1

SKU: FDCJ140HKXE2B HEAT EXCH. ASSY Category: Uncategorised
