FDCA335HKXRE4A-K CONTROL AND PARTS SET

Name: FDCA335HKXRE4A-K CONTROL AND PARTS SET
SKU: FDCA335HKXRE4A-K CONTROL AND PARTS SET
Availability: InStock

FDCA335HKXRE4A-K CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

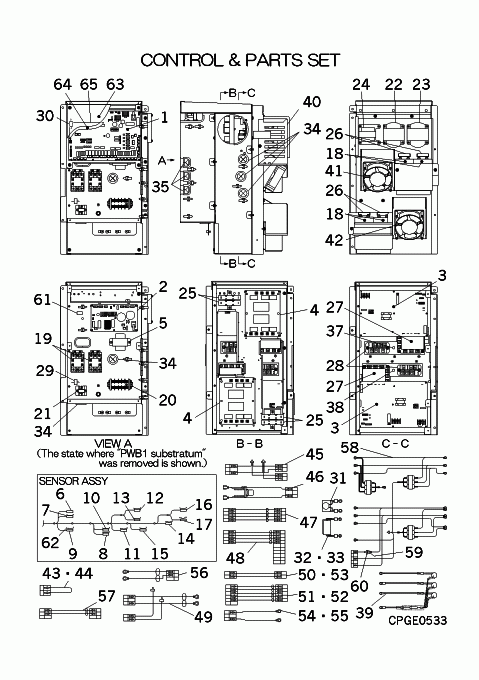

Check the parts position number [ ] matching with the drawing. Login to view prices.

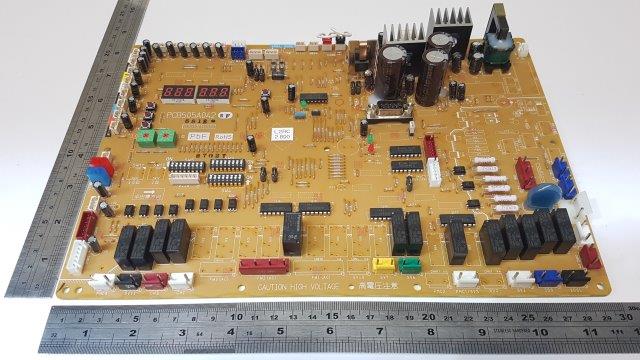

[1] In Stock

PCB505A042RF

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS PWB1, PWB1 - ALSO KNOWN AS "MAIN" Show Image

[1-61] Contact

PCB501A188AA

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PCB505A041YD

PWB ASSY (EEV)

Notes: ONLY FOR SUPPLY PARTS PWB4, PWB4 EEV Show Image

[3] In Stock

PCB505A044ZB

PWB ASSY(INV.)

Notes: ONLY FOR SUPPLY PARTS PWB2, INVERTER BOARD - DOES NOT INCLUDE TRANSISTOR/IPM Show Image

[4] In Stock

PCB505A035D

PWB ASSY (N.F.)

Notes: PWB3-1,2, NOISE FILTER Show Image

[5] In Stock

PCB554A014D

TRANSFOMER

Notes: TRO Show Image

[6] In Stock

PCB551A025A

SENSOR TH A

Notes: THO-A Show Image

[7] In Stock

PCB551A025R

SENSOR

Notes: THO-D1 Show Image

[8] In Stock

PCB551A025C

SENSOR T

Notes: THO-D2 Show Image

[9] In Stock

PCB551A025S

SENSOR

Notes: THO-C1 Show Image

[10] In Stock

PCB551A025G

SENSOR ASSY

Notes: THO-C2

[11] In Stock

PSA099A092JK

SENSOR

Notes: THO-S

[12] In Stock

PCB551A025M

SENSOR ASSY

Notes: THO-SC Show Image

[13] In Stock

PCB551A025N

SENSOR ASSY

Notes: THO-H Show Image

[14] In Stock

PSA099A092JJ

SENSOR ASSY

Notes: THO-R1, LENGTH 191CM - THO-R1 Show Image

[15] In Stock

PCB551A025J

SENSOR T R2

Notes: THO-R2 Show Image

[16] In Stock

PCB551A025K

SENSOR T R3

Notes: THO-R3 Show Image

[17] In Stock

PCB551A025L

SENSOR T R4

Notes: THO-R4 Show Image

[18] In Stock

SSA552F427AK

CAPACITOR

Notes: C1-1,C2-1,C1-2,C2-2, 4700 MICRO FARADS Show Image

[19] In Stock

SSA521A189C

CONTACTOR

Notes: 52C1,2, 220-240V 50Hz, 240-260V 60Hz Show Image

[20] In Stock

SSA561B687

BLOCK,TERMI

Notes: TB1 Show Image

[21] In Stock

SSA561B716AC

BLOCK TERMI

Notes: TB2 Show Image

[22] In Stock

SSA554B100B

REACTOR

Show Image

[23] In Stock

SSA554B100C

REACTOR

Show Image

[24] In Stock

SSA554B073

REACTOR

Show Image

[25] In Stock

SSA553A379

RESISTOR

Notes: 15O (Ohm) Show Image

[26] Out of Stock

SSA553A380

RESISTOR

Notes: 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[27] In Stock

PCB008A120A

TRANSISTOR

Notes: TM1,2, IPM (Intelligent Power Module) / POWER TRANSISTOR

[28] In Stock

PCB008A121A

DIODE STACK

Notes: DM1,2, aka DIODE MODULE Show Image

[29] In Stock

SSA554D099

NOIZU KILLE

Show Image

[30] Contact

SSA554D114

CORE FERR

Contact

[31] In Stock

PCB555B003A

VARISTOR

Show Image

[32] In Stock

PCB552F006A

CAPACITOR A

Notes: 2 red & blue cables - 2 capacitors tied together - white cable on each end Show Image

[33] In Stock

PCB552F006B

CAPACITOR A

Notes: 2 red & blue cables - 2 capacitors tied together - white cable on each end

[34] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[35] Contact

SSA947B017

GROMMET

Contact

[36] In Stock

SSA552D040Y

FILTER,NOISE

Notes: FOR COMP.WIRING Show Image

[37] In Stock

SSA551A192G

SENSOR ASSY

Notes: THO-P1 Show Image

[38] In Stock

SSA551A192H

SENSOR ASSY

Notes: THO-P2 Show Image

[39] Out of Stock

PCB552D006A

KILLER,NOIS

[40] In Stock

PCB438A017B

DUCT ASSY

[41] In Stock

PCB511A006C

MOTOR ASSY,

Show Image

[42] In Stock

PCB511A006F

MOTOR ASSY,

[43] Out of Stock

PCB504A172AK

WIRING ASSY

Notes: PWB1 CNS2, PWB1 CNS2 (PWB1 CNG1 for FDCA224HXKE4) Show Image

[44] Out of Stock

PCB504A172AM

WIRING ASSY

Notes: PWB1 CNG2 Show Image

[45] Out of Stock

PCB504A223DP

WIRING ASSY

Notes: PWB1 CNN8-CNC11,CNC12 Show Image

[46] In Stock

PCB504A223GF

WIRING ASSY

Notes: DM-1,DM-1-PWB2-1 CNR, white plug with black and green cable - DM-1,DM-1-PWB2-1 CNR Show Image

[47] In Stock

PCB504A223GG

WIRING ASSY

Notes: PWB2-1 CNI3-PWB2-2 CNI3, LENGTH 88CM Show Image

[48] In Stock

PCB504A223RB

WIRING ASSY

Notes: PWB1 CNI1-PWB2-1 CNI2 Show Image

[49] Out of Stock

PCB504A223RM

WIRING ASSY

Notes: PWB4 CNO1,CNDCW1-PWB2-1 TB2,PWB2-1 TB2 Show Image

[50] Out of Stock

PCB504A223DD

WIRING ASSY

Notes: PWB1 CNZ1-PWB4 CNZ1 Show Image

[51] Out of Stock

PCB504A223DF

WIRING ASSY

Notes: PWB1 CNT1-PWB4 CNT1 Show Image

[52] Out of Stock

PCB504A223DG

WIRING ASSY

Notes: PWB1 CNT2-PWB4 CNT2 Show Image

[53] In Stock

PCB504A223DH

WIRING ASSY

Notes: PWB1 CNK-PWB4 CNK Show Image

[54] Out of Stock

PCB504A223DJ

WIRING ASSY

Notes: PWB1 CNM1-52C1,52C1 Show Image

[55] In Stock

PCB504A223DK

WIRING ASSY

Notes: PWB1 CNM2-52C2,52C2 Show Image

[56] In Stock

PCB504A223RC

WIRING ASSY

Notes: TB2,TB2-PWB1 CNX1 Show Image

[57] Out of Stock

PCB504A223RL

WIRING ASSY

Notes: PWB4 CNI3-PWB1 CNI3 Show Image

[58-60] In Stock

PCB504A250WF

WIRING ASSY

Notes: CNW1 Show Image

[59] In Stock

SSA564A072C

FUSE

Notes: F 3.15A, 3.15 Amps Show Image

[60] In Stock

SSA564B059

HOLDER,FUSE

Show Image

[61] In Stock

SSA552D063

FILTER NOI

Show Image

[62] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR ASSY Show Image

[63-65] Contact

PCB119A232AK

PLATE

Contact

[64] Contact

PSC011G513A

LABEL,WIRING

Contact

Notes: !BACK ATTACHMENT

[65] Contact

PSC011G473A

LABEL,WIRING

Contact

Notes: !SURFACE ATTACHMENT

[66] Contact

PCA012A001

MANUAL,INSTRUCTION

Contact

[67] Contact

PSA011F919BW

LABEL,MODEL NAME

Contact

Notes: !

SKU: FDCA335HKXRE4A-K CONTROL AND PARTS SET Category: Uncategorised
