FDCA301HENR FAN AND COMPRESSOR

Name: FDCA301HENR FAN AND COMPRESSOR
SKU: FDCA301HENR FAN AND COMPRESSOR
Availability: InStock

FDCA301HENR FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

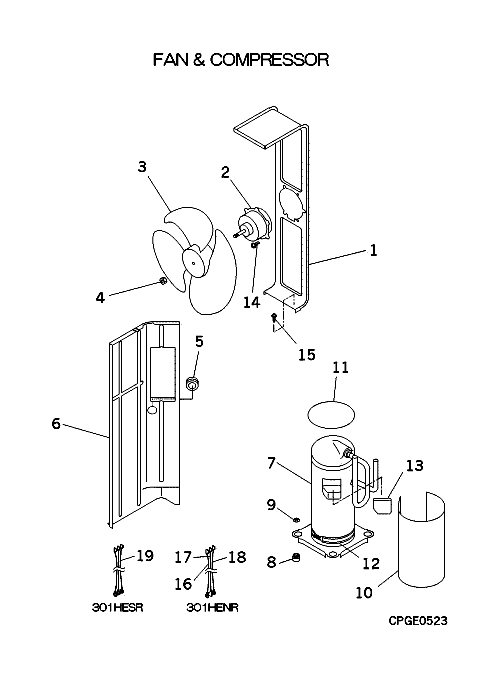

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

PCA116A092

BASE MOTOR

Substitute: OUT OF PRODUCTION

[2] Contact

SSA511T074A

MOTOR AC

Contact

[3] Out of Stock

SSA431B209

FAN,PROPELR

Substitute: OUT OF PRODUCTION Notes: OUT OF PRDUCTION

[4] In Stock

SSA914B007AD

NUT

Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image

[5] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[6] Contact

PCA141A086

PLATE,BAFFLE

Contact

[7] In Stock

PCA201A054

COMPRESSOR

Notes: ZP26K3E-PFJ, ***COMPRESSORS CANNOT BE RETURNED***

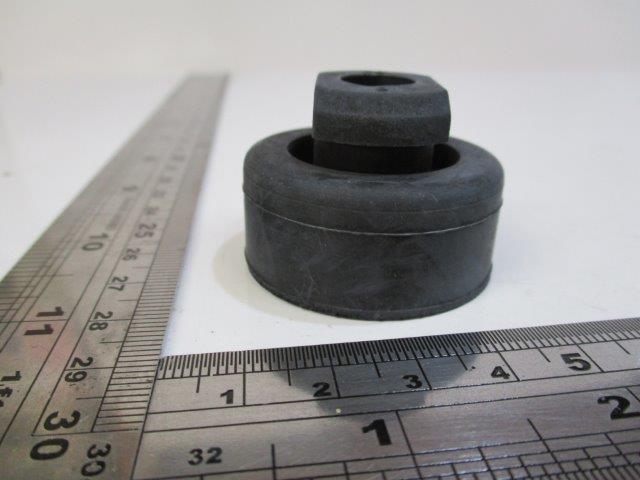

[8] In Stock

PCA941C003A

CUSHION,RUB

Show Image

[9] Contact

SSA914C005C

NUT

Contact

Notes: 1pc, FOR ACCUMULATOR

[10] Contact

PCA151D077

INSULATION,COMP

Contact

Notes: SIDE

[11] Contact

PCA151D078

INSULATION,COMP

Contact

Notes: TOP

[12] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[13] Contact

PCA947K006

COVER TERM

Contact

[14] Contact

H071D04X012

SCREW

Contact

Notes: M4X12, 1pc ONLY

[15] Contact

SSA913D012

SCREW 5X10

Contact

Notes: 1pc ONLY

[16] Contact

SAC567N110R

CORD,IV

Contact

Notes: !R

[17] Contact

SAC567N120L

CORD,IV

Contact

Notes: !S

[18] Contact

SAC567N098W

CORD,IV

Contact

Notes: !C
