FDCA280HKXRE4 PIPING

Name: FDCA280HKXRE4 PIPING
SKU: FDCA280HKXRE4 PIPING
Availability: InStock

FDCA280HKXRE4 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

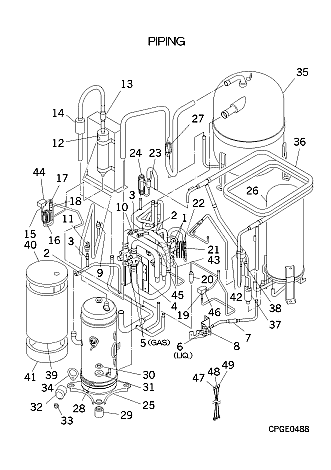

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

SSA382C074

4 WAY VALVE

Notes: 20S,20SL Show Image

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Out of Stock

SSA327B067A

VALVE,SERVI

[4] Contact

PCB116A578

BRACKET

Contact

[5] In Stock

SSA381A748A

VALVE,SERVICE

Notes: GAS Show Image

[6] Contact

SSA381A828

VALVE.SERV

Contact

Notes: LIQ.

[7] In Stock

SSA357A007A

STRAINER

Show Image

[8] Contact

PCB116A579

BRACKET

Contact

[9] In Stock

SSA532A032GR

SWITCH HP

Notes: 63H1-1,2 Show Image

[10] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[11] In Stock

SSA551D024A

SENSOR HP

Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image

[12] Contact

SSA325A033C

PIPE SHELL

Contact

[12-13] In Stock

PCB354A031B

SEPARATOR

[13] Contact

SSA385A049

VALVE,CHECK

Contact

[14] Contact

SSA325A001CG

PIPE,SHELL

Contact

[15] In Stock

SSA382A250

2WAY, VALVE

Notes: SV Show Image

[15-18] Out of Stock

PCB321D938A

PIPE L

Substitute: PCB321F595A

[16] Contact

PCB315B800

CAPILLARY

Contact

Notes: !D2.2XD3.2 L350

[17] Contact

PCB315B801A

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[18] In Stock

SSA357A008BW

STRAINER

[19] Contact

SSA382A245

2VALVE

Contact

Notes: SV11

[20] In Stock

SSA357A059T

STRAINER

[21] In Stock

SSA357A005C

STRAINER

Show Image

[21-22] In Stock

PCB321F270

PIPE ASSY

[22] Contact

PCB315B812

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[23] In Stock

SSA357A005C

STRAINER

Show Image

[23-24] In Stock

PCB321F270A

PIPE ASSY

[24] Contact

PCB315B812A

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[25] In Stock

AGT201A728DP

COMPRESSOR

Notes: GT-C5150ND75, ***COMPRESSORS CANNOT BE RETURNED***

[26] Contact

SSA352A105P

RECEIVER ASSY

Contact

Substitute: OUT OF PRODUCTION Notes: KXE4A & KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008

[27] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[28] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[29] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[30] In Stock

SSA914C033

NUT

Notes: 1pc

[31] Contact

SSA915H039A

WASHER

Contact

Notes: 1pc ONLY

[32] In Stock

AGT947K100

COVER TERMINAL

Show Image

[33] Contact

SSA914C003

NUT

Contact

Notes: 1pc

[34] In Stock

AGT932C100

GASKET COVER

Show Image

[35] In Stock

SSA351A228A

ACCUMULATOR

[36] In Stock

PCB303A011

HEAT LIQ

[37] In Stock

SSA357A024C

STRAINER

Show Image

[38] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[39] Contact

PCB151D088

INSULATION

Contact

[40] In Stock

PCA151D034

INSULATO CO

[41] Contact

PCB151D100

INSULATIO

Contact

[42] In Stock

SSA382F210Z

COIL,SOLENO

Notes: FOR EEVSC, LENGTH 206CM Show Image

[43] In Stock

PCB382F092H

COIL ASSY,S

Notes: FOR 20S, 20S SOLENOID COIL/ LENGTH 140.5CM Show Image

[44] Out of Stock

PCB382F092C

COIL ASSY,S

Notes: FOR SV6, SV6 SOLENOID

[45] In Stock

PCB382F092J

COIL ASSY,S

Notes: FOR 20SL, 20SL SOLENOID COIL Show Image

[46] In Stock

PCB382F092K

COIL ASSY,S

Notes: FOR SV11, SV11 SOLENOID COIL Show Image

[47] Out of Stock

PCB504A231DG

HARNESS ASSY

Notes: !U Show Image

[48] Out of Stock

PCB504A231DH

HARNESS ASSY

Notes: !V Show Image

[49] In Stock

PCB504A231DJ

HARNESS ASSY

Notes: !W Show Image

SKU: FDCA280HKXRE4 PIPING Category: Uncategorised
