FDCA224HKXRE4BR PIPING

Name: FDCA224HKXRE4BR PIPING
SKU: FDCA224HKXRE4BR PIPING
Availability: InStock

FDCA224HKXRE4BR PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

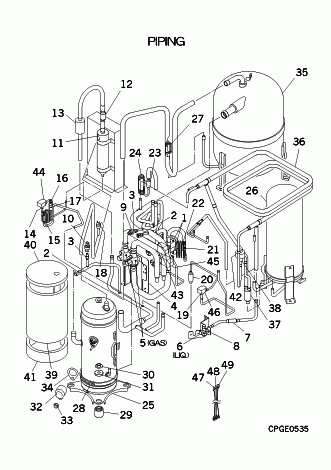

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C096A

VALVE, S(4WAY)

Notes: 20S,20SL, Reversing Valve Body

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Out of Stock

SSA327B067A

VALVE,SERVI

[4] Contact

PCB116A578

BRACKET

Contact

[5] In Stock

SSA381A748A

VALVE,SERVICE

Notes: GAS Show Image

[6] In Stock

SSA381A855

SERVICE VALVE

Notes: LIQ., GAS Show Image

[7] In Stock

SSA357A007A

STRAINER

Show Image

[8] Contact

PCB116A579

BRACKET

Contact

[9] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[10] In Stock

SSA551D024A

SENSOR HP

Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image

[11] Contact

PCA325A011C

PIPE,SHELL

Contact

[11-13] Contact

PCB354A041

OIL SEPARATOR

Contact

[11-18] Contact

PCB354A040

SEPARATOR ASSY,OIL

Contact

[12] Contact

SSA385A032

VALVE CHECK

Contact

[13] Contact

SSA325A001CG

PIPE,SHELL

Contact

[14] In Stock

SSA382A219

VALVE(2WAY)

Notes: SV, LENGTH 7.5CM Show Image

[14-17] In Stock

PCB321F687

PIPE ASSY

[15] Contact

PCB315B831

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[16] Contact

PCB315B801A

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[17] In Stock

SSA357A008BW

STRAINER

[18] In Stock

SSA532A032GR

SWITCH HP

Notes: 63H1-1,2 Show Image

[19] In Stock

SSA382A249A

VALVE,S(2WAY)

Notes: SV, SV1 Show Image

[20] In Stock

SSA357A059T

STRAINER

[21] In Stock

SSA357A005C

STRAINER

Show Image

[21-23] In Stock

PCB321F270

PIPE ASSY

[22] Contact

PCB315B812

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[23] In Stock

SSA357A005C

STRAINER

Show Image

[23-24] In Stock

PCB321F270A

PIPE ASSY

[24] Contact

PCB315B812A

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[25] In Stock

AGT201A727DP

COMPRESSOR

Notes: GTC5150ND75K, ***COMPRESSORS CANNOT BE RETURNED***

[26] Contact

SSA352A105P

RECEIVER ASSY

Contact

Substitute: OUT OF PRODUCTION Notes: KXE4A & KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008

[27] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[28] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[29] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[30] In Stock

SSA914C033

NUT

Notes: 1pc

[31] Contact

SSA915H039A

WASHER

Contact

Notes: 1pc ONLY

[32] In Stock

AGT947K100

COVER TERMINAL

Show Image

[33] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[34] In Stock

AGT932C100

GASKET COVER

Show Image

[35] In Stock

SSA351A228A

ACCUMULATOR

[36] In Stock

PCB303A011

HEAT LIQ

[37] In Stock

SSA357A024C

STRAINER

Show Image

[38] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[39] Contact

PCB151D088

INSULATION

Contact

[40] In Stock

PCA151D034

INSULATO CO

[41] Contact

PCB151D100

INSULATIO

Contact

[42] In Stock

SSA382F210Z

COIL,SOLENO

Notes: FOR EEVSC, LENGTH 206CM Show Image

[43] In Stock

PCB382F092P

COIL

Notes: FOR 20S, 20S Show Image

[44] Contact

PCB382F096BB

COIL ASSY,SOLENOID

Contact

Notes: FOR SV6

[45] In Stock

PCB382F092R

COIL ASSY

Notes: FOR 20SL Show Image

[46] In Stock

PCB382F096BC

COIL ASSY,SOLENOID

Notes: FOR SV11 Show Image

[47] Out of Stock

PCB504A231DG

HARNESS ASSY

Notes: !U Show Image

[48] Out of Stock

PCB504A231DH

HARNESS ASSY

Notes: !V Show Image

[49] In Stock

PCB504A231DJ

HARNESS ASSY

Notes: !W Show Image

SKU: FDCA224HKXRE4BR PIPING Category: Uncategorised
