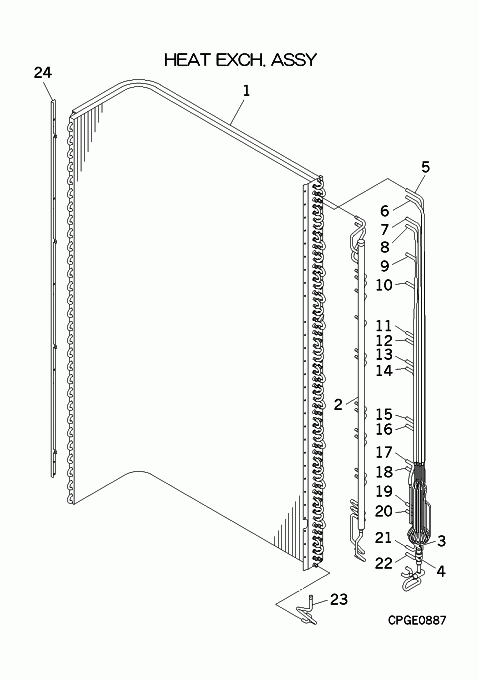

FDCA200VSA-W/1 HEAT EXCH. ASSY

FDCA200VSA-W/1 HEAT EXCH. ASSY

FDCA200VSA-W/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-23] In Stock
PCB301A190
HEAT EXCH ASSY(AIR)
[2] Contact
PCB315D336
HEADER ASSY,GAS
Contact
Notes: ?
[3] Contact
SSA315A306AT
DISTRIBUTOR
Contact
Notes: ?
[3-22] Contact
PCB315A144
DISTRIBUTOR ASSY
Contact
[4] In Stock
SSA357A051
STRAINER
Show Image
SSA357A051
[5] Contact
PCB315F240
CAPILLARY ASSY(1)
Contact
Notes: ?f2.2xf4.0 L300, !D2.2XD4.0 L300
[6] Contact
PCB315F241
CAPILLARY ASSY(2)
Contact
Notes: ?f2.2xf4.0 L300, !D2.2XD4.0 L300
[7] Contact
PCB315F242
CAPILLARY ASSY(3)
Contact
Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300
[8] Contact
PCB315F243
CAPILLARY ASSY(4)
Contact
Notes: ?f3.0xf5.0 L300, !D3.0XD5.0 L300
[9] Contact
PCB315F244
CAPILLARY ASSY(5)
Contact
Notes: ?f3.0xf5.0 L300, !D3.0XD5.0 L300
[10] Contact
PCB315F245
CAPILLARY ASSY(6)
Contact
Notes: ?f3.0xf5.0 L300, !D3.0XD5.0 L300
[11] Contact
PCB315F246
CAPILLARY ASSY(7)
Contact
Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300
[12] Contact
PCB315F247
CAPILLARY ASSY(8)
Contact
Notes: ?f2.0xf4.0 L300, !D2.0XD4.0 L300
[13] Contact
PCB315F248
CAPILLARY ASSY(9)
Contact
Notes: ?f2.0xf4.0 L300, !D2.0XD4.0 L300
[14] Contact
PCB315F249
CAPILLARY ASSY(10)
Contact
Notes: ?f3.0xf5.0 L300, !D3.0XD5.0 L300
[15] Contact
PCB315F250
CAPILLARY ASSY(11)
Contact
Notes: ?f2.2xf4.0 L300, !D2.2XD4.0 L300
[16] Contact
PCB315F251
CAPILLARY ASSY(12)
Contact
Notes: ?f2.4xf4.0 L300, !D2.4XD4.0 L300
[17] Contact
PCB315F252
CAPILLARY ASSY(13)
Contact
Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300
[18] Contact
PCB315F253
CAPILLARY ASSY(14)
Contact
Notes: ?f2.0xf4.0 L300, !D2.0XD4.0 L300
[19] Contact
PCB315F254
CAPILLARY ASSY(15)
Contact
Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300
[20] Contact
PCB315F255
CAPILLARY ASSY(16)
Contact
Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300
[21] Contact
PCB315F256
CAPILLARY ASSY(17)
Contact
Notes: ?f2.0xf4.0 L300, !D2.0XD4.0 L300
[22] Contact
PCB315F257
CAPILLARY ASSY(18)
Contact
Notes: ?f2.0xf4.0 L300, !D2.0XD4.0 L300
[23] Contact
PCB321G747A
PIPE ASSY
Contact
[24] Contact
PCB141A048
PLATE ASSY,BAFFLE
Contact
SKU: FDCA200VSA-W/1 HEAT EXCH. ASSY Category:
