FDCA125VSX-W/1 CONTROL AND PARTS SET

Name: FDCA125VSX-W/1 CONTROL AND PARTS SET
SKU: FDCA125VSX-W/1 CONTROL AND PARTS SET
Availability: InStock

FDCA125VSX-W/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

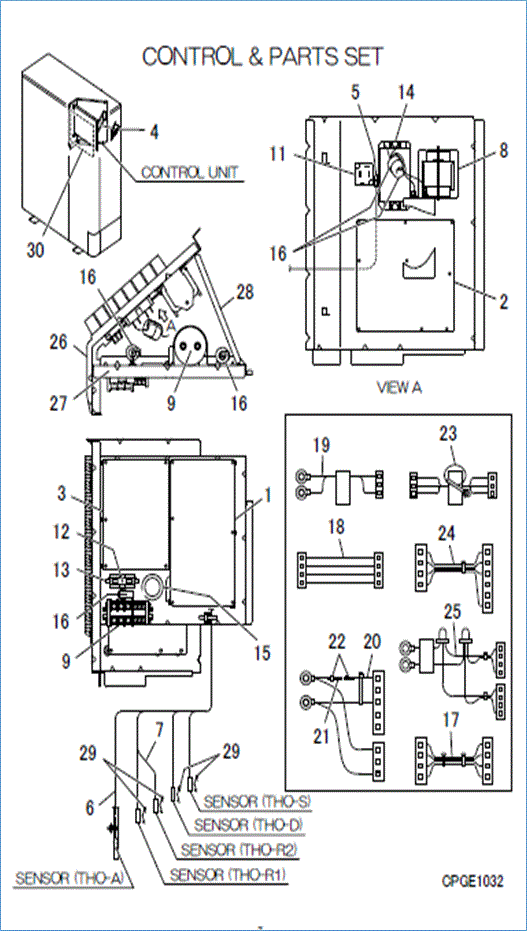

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A377BT

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS PWB1, PWB1 - CONTROL BOARD

[1-32] Contact

PCA501A198B

CONTROL UNIT

Contact

Notes: ?, NOT AVAILABLE

[2] In Stock

PCA505A108DJ

PWB ASSY(INV.)

Notes: ONLY FOR SUPPLY PARTS PWB2

[3] In Stock

PCA505A128YB

PWB ASSY NF

Notes: ONLY FOR SUPPLY PARTS PWB3, NOISE FILTER

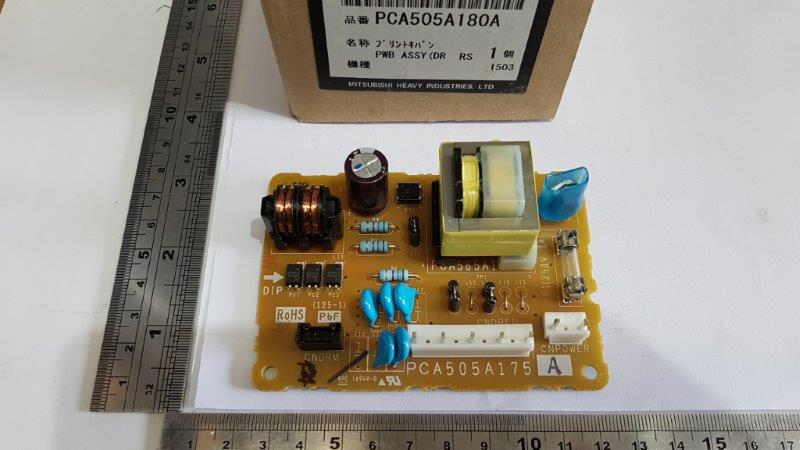

[4] In Stock

PCA505A180A

DRED

Notes: ONLY FOR SUPPLY PARTS PWB4, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[5] In Stock

SSA551A192K

SENSOR

Notes: THO-TIP, THO-TIP or THO-TR or THO-IPM - SENSOR NEAR INVERTER BOARD Show Image

[6] In Stock

PSA551A014P

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1 - WHITE PLUG WITH 6 BLACK WIRES AND 2 YELLOW WIRES Show Image

[7] In Stock

PSA551A013J

SENSOR

Notes: THO-R2 Show Image

[8] In Stock

SSA554B097A

REACTOR

Notes: L1 Show Image

[9] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[10] In Stock

SSA561B693D

BLOCK,TERMINAL

Notes: TB Show Image

[11] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: TB, T3 Show Image

[12] In Stock

PCB008A121C

PARTS SET

Notes: ONLY FOR SUPPLAY PARTS, DIODE MODULE Show Image

[13] In Stock

SSA521A715A

RELAY

Notes: 52C, 52X1,52X2

[14] Out of Stock

SSA553A380

RESISTOR

Notes: R3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[15] In Stock

SSA553A379

RESISTOR

Notes: R1,2, 15O (Ohm) Show Image

[16] Contact

S750W30

GROMMET

Contact

Notes: f35, D35

[17] In Stock

PCA555B002

VARISTOR ASSY

Show Image

[18] In Stock

PCA504A264GA

WIRING ASSY

Notes: PWB1 CNI1- PWB2 CNI2 Show Image

[19] In Stock

PCA504A292AV

WIRING ASSY

Notes: DM G,DM K- PWB2 CNR

[20] Contact

PCA504A292AL

WIRING ASSY

Contact

Notes: 52C 5,52C 6- PWB1 CNM1, 52C 6,52C 5- PWB1 CNM1

[21] Contact

PCA504A256Z

WIRING ASSY

Contact

Notes: C1 +,C1 -- PWB2 CNW2, C1 +,C1 --PWB2 CNW2

[22] Contact

PCA504A264GF

WIRING ASSY

Contact

Notes: PWB3 CN2-1- PWB1 CNW2

[23] Contact

PCA504A292L

WIRING ASSY

Contact

Notes: PWB1 CNA1,PWB1 CNA2- PWB2 CNO1

[24-26] In Stock

PCA504A292M

WIRING ASSY

Notes: PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB2 CNW1,PWB4 CNPOWER

[25] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[26] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[27] In Stock

PCA504A292H

WIRING ASSY

Notes: TB2 D1,TB2 D2,TB2 D3,TB2 C,E- PWB4 CNDRED

[28] Contact

PCA504A264GC

WIRING ASSY

Contact

Notes: TB 2,TB 3- PWB3 CN1

[29] Contact

PCA504A292C

WIRING ASSY

Contact

Notes: PWB1 CNDRM- PWB4 CNDRM

[30] Contact

PCA142A174G

PLATE,CONTROL

Contact

[31] Contact

PCA142A134F

PLATE,CONTROL

Contact

[32] Contact

PCA142A132J

PLATE,CONTROL

Contact

[33] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THO-R1,R2,D,S Show Image

[34] Contact

PSC011G564AK

LABEL,WIRING

Contact

Notes: ?

[35] Out of Stock

PSB011F362F

LABEL,MODEL NAME

Notes: ?
