FDCA1001HES PIPING

Name: FDCA1001HES PIPING
SKU: FDCA1001HES PIPING
Availability: InStock

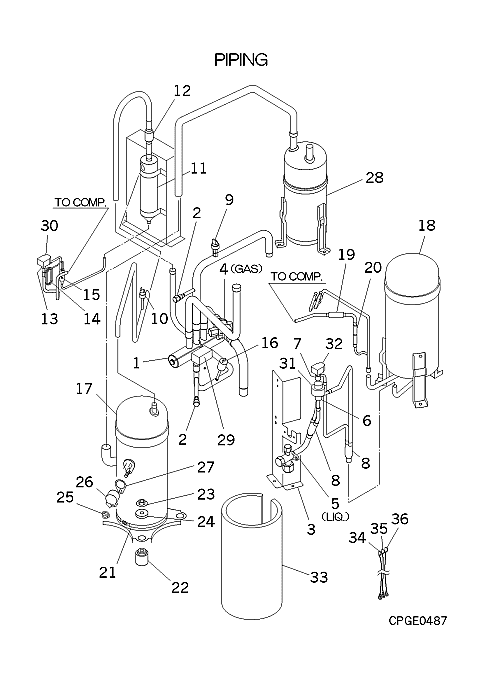

FDCA1001HES PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C075

VALVE 4WAY

Notes: 20S, 20s - 4 way valve

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Out of Stock

PCB116A479

BRACKET

[4] In Stock

SSA381A748A

VALVE,SERVICE

Notes: GAS Show Image

[5] Contact

PCB381A077

VALVE SERVI

Contact

Notes: LIQ.

[6] In Stock

SSA387F044

EXP VALVE

Notes: EEVC or SM1, EEV Body Show Image

[7] Out of Stock

SSA382A249

2VALVE

Substitute: OUT OF PRODUCTION Notes: SV2,3, OUT OF PRODUCTION

[8] Out of Stock

SSA357A029

STRAINER

[9] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[10] Out of Stock

SSA532A032GP

SWITCH HP

Notes: 63H2

[11] Contact

SSA325A033C

PIPE SHELL

Contact

[11-12] Out of Stock

PCB354A031D

SEPARATOR

[12] Contact

SSA385A049

VALVE,CHECK

Contact

[13] In Stock

SSA382A250

2WAY, VALVE

Notes: SV Show Image

[13-15] Out of Stock

PCB321F054A

PIPE ASSY

[14] Contact

PCB315B806

CAPILLARY

Contact

Notes: !D1.2XD3.2 L500

[15] In Stock

SSA357A008BW

STRAINER

[16] In Stock

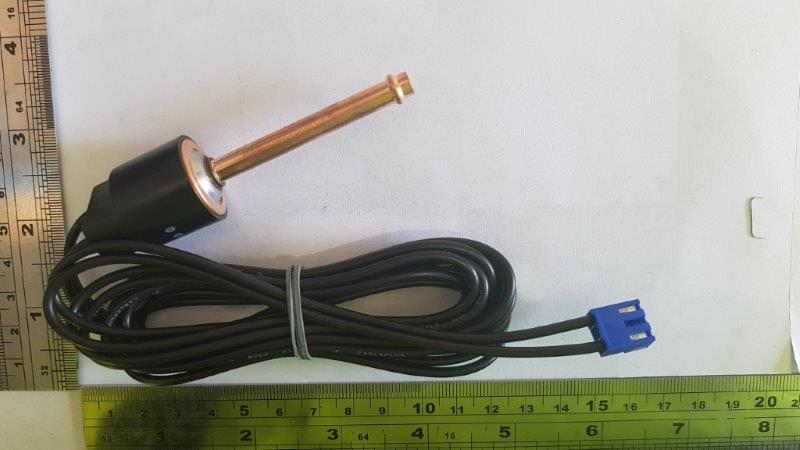

SSA532A032GR

SWITCH HP

Notes: 63H1-1,2 Show Image

[17] In Stock

AGF201A445SL

GUC5192MS56

Notes: GU-C5176MS56, ***COMPRESSORS CANNOT BE RETURNED***

[18] In Stock

SSA352A072N

RECEIVER A

[19] In Stock

SSA357A059B

STRAINER

[20] Contact

SSA385A027A

CHECK VALVE

Contact

[21] In Stock

PCA541B011M

HEATER ASSY

Notes: CRANK CASE HEATER / COMPRESSOR CRANK HEATER/ LENGTH 161CM Show Image

[22] Contact

SSA941C158G

CUSHION RUB

Contact

[23] In Stock

SSA914C033

NUT

Notes: 1pc

[24] Contact

SSA915H039A

WASHER

Contact

Notes: 1pc ONLY

[25] Contact

SSA914C003

NUT

Contact

Notes: 1pc

[26] In Stock

AGT947K100

COVER TERMINAL

Show Image

[27] In Stock

AGT932C100

GASKET COVER

Show Image

[28] Out of Stock

SSA351A204G

ACCUMULATO

[29] In Stock

PCB382F092

COIL ASSY,S

Notes: FOR 20S Show Image

[30] Out of Stock

PCB382F092C

COIL ASSY,S

Notes: FOR SV6, SV6 SOLENOID

[31] Contact

SSA382F212B

SOLENOID

Contact

Notes: FOR EEVC

[32] Contact

PCA382F013K

COIL ASSY,S

Contact

[33] Contact

PCB151D101

INSULA CON,

Contact

[34] Contact

PCB504A241AG

WIRING ASSY

Contact

Notes: !U

[35] Contact

PCB504A241H

WIRING ASSY

Contact

Notes: !V

[36] Contact

PCB504A241J

WIRING ASSY

Contact

Notes: !W
