FDC71VNX/B PANEL ASSY

Name: FDC71VNX/B PANEL ASSY
SKU: FDC71VNX/B PANEL ASSY
Availability: InStock

FDC71VNX/B PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

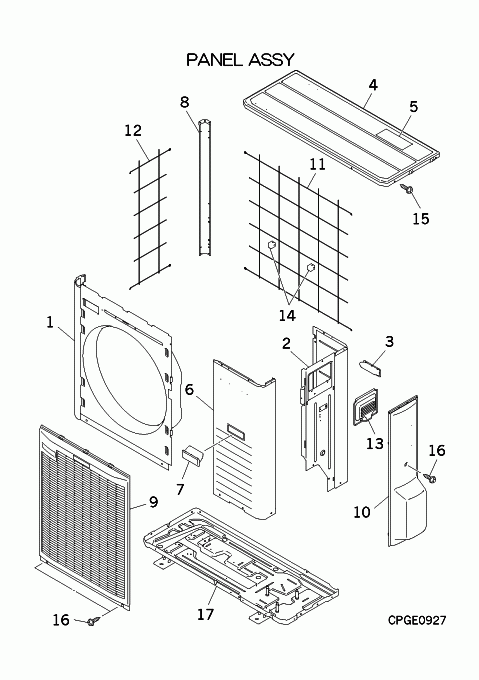

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR122A001

PANEL ASSY, FRONT

[2-3] In Stock

RCR125A002C

PANEL ASSY,REAR

[3] In Stock

SSA944B031A

HANDLE

Show Image

[4-5] In Stock

RCR124A002N

PANEL ASSY,TOP

[5] In Stock

RSA011H036B

LABEL,NOTICE

Notes: LENGTH 16.5CM Show Image

[6] In Stock

RCR122A006B

PANEL,SERVICE

[6-7] In Stock

RCR122A004A

PANEL ASSY,SERVICE

[7] In Stock

SSA944B031A

HANDLE

Show Image

[8] In Stock

RCR115A002A

SUPPORT,CORNER

[9] In Stock

RCR435A001

GRILLE,AIR

Notes: AIR OUTLET GRILLE / FAN GUARD

[10] In Stock

RCR132A004

COVER ASSY

Notes: PLASTIC

[11] In Stock

RCR131A001

GUARD,FIN(A)

[12] In Stock

RCR131A002

GUARD,FIN(B)

[13] In Stock

RCR132A002

COVER,TERMINAL

Show Image

[14] In Stock

RCR941G001

CUSHION,RUBBER

Notes: ! Show Image

[15] In Stock

SSA913A034F

SCREW,TAP

Notes: 4X8, 1pc ONLY, 4X8 Show Image

[16] In Stock

SSA913A034L

SCREW,TAP

Notes: 4X12, 1pc ONLY

[17] Contact

RCR111A003A

BASE ASSY

Contact

SKU: FDC71VNX/B PANEL ASSY Category: Uncategorised
