FDC450KXE6/F PIPING

Name: FDC450KXE6/F PIPING
SKU: FDC450KXE6/F PIPING
Availability: InStock

FDC450KXE6/F PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

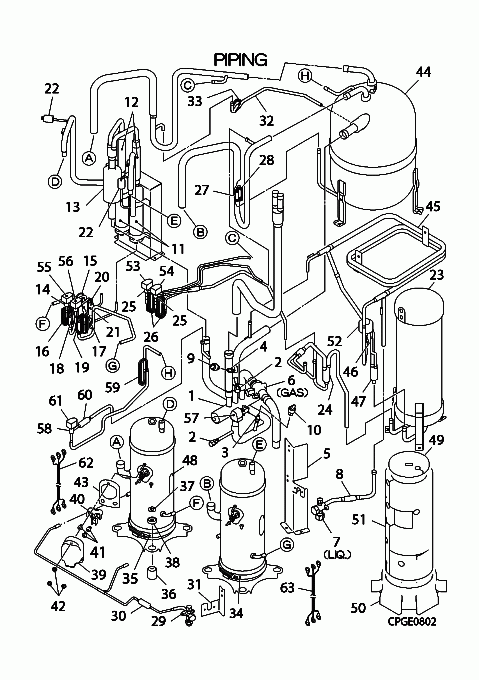

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C086

VALVE,S(4WAY)

Notes: 20S

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Contact

PCA327B056A

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B071D

[4] In Stock

PCA327B056C

VALVE,SERVICE

Show Image

[5] Contact

PCB116A729

BRACKET

Contact

[6] In Stock

SSA381A748A

VALVE,SERVICE

Notes: GAS Show Image

[7] In Stock

PCB381A080

VALVE SERVI

Notes: LIQ., LIQ Show Image

[8] In Stock

SSA357A007A

STRAINER

Show Image

[9] In Stock

SSA551D022V

SENSOR,LP

Notes: PSL

[10] Out of Stock

SSA551D024F

SENSOR,HP

Notes: PSH Show Image

[11] Contact

PCB325A012

PIPE,SHELL

Contact

[11-21] Contact

PCB354A055

OIL SEPARATOR

Contact

[11-22] In Stock

PCB354A054

SEPARATOR ASSY,OIL

[12] Contact

SSA385A051

VALVE,CHECK

Contact

[13] Contact

SSA325A001CL

PIPE,SHELL

Contact

[14] In Stock

SSA382A219

VALVE(2WAY)

Notes: SV6, LENGTH 7.5CM Show Image

[14-17] In Stock

PCB321G142

PIPE ASSY

[15] Contact

PCB315F002

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[16] Contact

PCB315B831A

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[17] In Stock

SSA357A053A

STRAINER

Show Image

[18] In Stock

SSA382A219

VALVE(2WAY)

Notes: SV7, LENGTH 7.5CM Show Image

[18-21] In Stock

PCB321G143

PIPE ASSY

[19] Contact

PCB315B831

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[20] Contact

PCB315F003

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[21] In Stock

SSA357A053A

STRAINER

Show Image

[22] In Stock

SSA532A085NB

SWITH HP

Notes: 63H1-1,2 Show Image

[23] Out of Stock

SSA352A129

RECEIVERASSY

[24] In Stock

SSA357A054

STRAINER

Show Image

[25] In Stock

SSA382A249A

VALVE,S(2WAY)

Notes: SV1,2, SV1 Show Image

[25-26] Contact

PCB382A221

VALVEASSY(2WAY)

Contact

[26] Contact

PCB315B817

CAPILLARY

Contact

Notes: !D1.3XD3.2 L500

[27-28] Contact

PCB321G133

PIPE,SUCTION(2)

Contact

[28] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[29] Contact

PCB381A078

VALVE SERVI

Contact

[30] In Stock

SSA357A005A

STRAINER

Show Image

[31] Contact

PCB116A732

BRACKET

Contact

[32-33] Contact

PCB315B809

CAPILLARY ASSY

Contact

[33] In Stock

PCB315B303C

CAPILLARY

Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image

[34] Contact

PCA541B031A

HEATER ASSY(CRANK)

Contact

[35] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[36] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[37] In Stock

SSA914C033

NUT

Notes: 1pc

[38] Contact

SSA915H039A

WASHER

Contact

Notes: 1pc ONLY

[39] In Stock

PCB008A195

PARTS SET

Notes: Includes Cover, Nuts x3 & Gasket Show Image

[40] Out of Stock

ASA561B002

BLOCK,TERMINAL

[41] Out of Stock

SSA912A001

SCREW

Substitute: RE60179 Notes: M5X8, 1pc ONLY

[42] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[43] Contact

AGT151A101

GASKET

Contact

[44] In Stock

SSA351A234

ACCUMULATOR

[45] Contact

PCB303A028

HEAT EXCH ASSY(LIQ

Contact

[46] In Stock

SSA387F036

EXP VALVE

Notes: EEVSC, EEV(HEAT) or EEVH1-EEVH2 Show Image

[47] In Stock

SSA357A055

STRAINER

[48] In Stock

AGT201B827HD

COMPRESSOR

Notes: GTC5150NH48L, ***COMPRESSORS CANNOT BE RETURNED***

[49] In Stock

PCA151D034

INSULATO CO

[50] Contact

PCB151D100

INSULATIO

Contact

[51] In Stock

PCB151D088B

INSULATION,COMP

[52] Contact

SSA382F210AZ

COIL,SOLENOID

Contact

Notes: FOR EEVSC

[53] Contact

PCB382F119BA

COILASSY,SOLENOID

Contact

Notes: FOR SV1

[54] Contact

PCB382F119BB

COILASSY,SOLENOID

Contact

Notes: FOR SV2

[55] Contact

PCB382F119BD

COIL ASSY,SOLENOID

Contact

Notes: FOR SV6

[56] Contact

PCB382F119BF

COIL ASSY,SOLENOID

Contact

Notes: FOR SV7

[57] In Stock

PCB382F119BL

COIL ASSY,S

Notes: FOR 20S Show Image

[58] Contact

SSA382A273

VALVE,S(2WAY)

Contact

Substitute: SSA382A254 Notes: SV13

[58-60] Contact

PCB382A203B

VALVEASSY(2WAY)

Contact

[59] Contact

PCB315B842

CAPILLARY

Contact

Notes: !D3.0XD4.0 L500

[60] In Stock

SSA357A005A

STRAINER

Show Image

[61] Contact

PCB382F121J

COILASSY,SOLENOID

Contact

Notes: FOR SV13

[62] Contact

PCB504A338D

WIRING ASSY

Contact

Notes: CM1

[63] Contact

PCB504A338C

WIRING ASSY

Contact

Notes: CM2

SKU: FDC450KXE6/F PIPING Category: Uncategorised
