FDC450KXE6/A PIPING

Name: FDC450KXE6/A PIPING
SKU: FDC450KXE6/A PIPING
Availability: InStock

FDC450KXE6/A PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

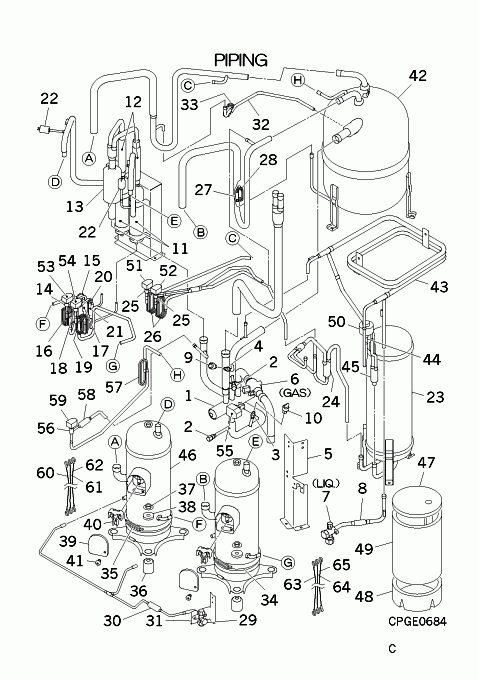

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C086

VALVE,S(4WAY)

Notes: 20S

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Contact

PCA327B056A

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B071D

[4] In Stock

PCA327B056C

VALVE,SERVICE

Show Image

[5] Out of Stock

PCB116A479

BRACKET

[6] In Stock

SSA381A855

SERVICE VALVE

Notes: GAS Show Image

[7] In Stock

PCB381A080

VALVE SERVI

Notes: LIQ., LIQ Show Image

[8] In Stock

SSA357A007A

STRAINER

Show Image

[9] In Stock

SSA551D022V

SENSOR,LP

Notes: PSL

[10] Out of Stock

SSA551D024F

SENSOR,HP

Notes: PSH Show Image

[11] Contact

PCB325A007

PIPE,SHELL

Contact

[11-21] In Stock

PCB354A049A

OIL SEPARATOR

[11-22] In Stock

PCB354A048H

SEPARATOR ASSY,OIL

[12] Contact

SSA385A051

VALVE,CHECK

Contact

[13] Contact

SSA325A001CL

PIPE,SHELL

Contact

[14] In Stock

SSA382A219

VALVE(2WAY)

Notes: SV6, LENGTH 7.5CM Show Image

[14-21] Contact

PCB321F943A

PIPE ASSY

Contact

Notes: ONLY FOR SUPPLY PARTS

[15] Contact

PCB315B805

CAPILLARY

Contact

Notes: !D1.2XD3.2 L500

[16] Contact

PCB315B831A

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[17] Contact

SSA357A048A

STRAINER

Contact

[18] In Stock

SSA382A219

VALVE(2WAY)

Notes: SV7, LENGTH 7.5CM Show Image

[19] Contact

PCB315B831

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[20] Contact

PCB315B801A

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[21] Contact

SSA357A048A

STRAINER

Contact

[22] In Stock

SSA532A085NA

SWITCH, HP

Notes: 63H1-1,2

[23] In Stock

SSA352A121P

RECEIVER

Notes: LIQUID RECIEVER

[24] In Stock

SSA357A024

STRAINER

Show Image

[25] In Stock

SSA382A249A

VALVE,S(2WAY)

Notes: SV1,2, SV1 Show Image

[25-26] Out of Stock

PCB382A201

VALVE ASSY(2WAY)

[26] Contact

PCB315B817

CAPILLARY

Contact

Notes: !D1.3XD3.2 L500

[27-28] Contact

PCB321F658D

PIPE,SUCTION(2)

Contact

[28] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[29] Contact

PCB381A078

VALVE SERVI

Contact

[30] In Stock

SSA357A005A

STRAINER

Show Image

[31] Contact

PCB116A527

BRACKET

Contact

[32-33] Contact

PCB315B809

CAPILLARY ASSY

Contact

[33] In Stock

PCB315B303C

CAPILLARY

Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image

[34] Contact

PCA541B021AT

HEATER ASSY(CRANK)

Contact

[35] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[36] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[37] In Stock

SSA914C033

NUT

Notes: 1pc

[38] Contact

SSA915H039A

WASHER

Contact

Notes: 1pc ONLY

[39] In Stock

PCB008A195

PARTS SET

Notes: Includes Cover, Nuts x3 & Gasket Show Image

[40] Out of Stock

ASA561B002

BLOCK,TERMINAL

[41] Out of Stock

H051D05X008

SCREW

Notes: M5X8, 1pc ONLY

[42] In Stock

SSA351A228D

ACCUMULATOR

[43] In Stock

PCB303A011

HEAT LIQ

[44] In Stock

SSA387F036

EXP VALVE

Notes: EEVSC, EEV(HEAT) or EEVH1-EEVH2 Show Image

[45] In Stock

SSA357A024C

STRAINER

Show Image

[46] In Stock

AGT201B827HD

COMPRESSOR

Notes: GTC5150NH48L, ***COMPRESSORS CANNOT BE RETURNED***

[47] In Stock

PCA151D034

INSULATO CO

[48] Contact

PCB151D100

INSULATIO

Contact

[49] Contact

PCB151D088A

INSULATION,COMP

Contact

[50] Contact

SSA382F210AZ

COIL,SOLENOID

Contact

Notes: FOR EEVSC

[51] Contact

PCB382F119A

COIL ASSY,SOLENOID

Contact

Notes: FOR SV1

[52] Contact

PCB382F119B

COIL ASSY,SOLENOID

Contact

Notes: FOR SV2

[53] In Stock

PCB382F119D

COIL ASSY,SOLENOID

Notes: FOR SV6

[54] In Stock

PCB382F119F

COIL ASSY,SOLENOID

Notes: FOR SV7

[55] In Stock

PCB382F119L

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S/ LENGTH 33.5CM Show Image

[56] Contact

SSA382A273

VALVE,S(2WAY)

Contact

Substitute: SSA382A254 Notes: SV13

[56-58] Contact

PCB382A203

VALVE ASSY(2WAY)

Contact

[57] Contact

PCB315B842

CAPILLARY

Contact

Notes: !D3.0XD4.0 L500

[58] In Stock

SSA357A005A

STRAINER

Show Image

[59] In Stock

PCB382F119K

COIL ASSY,SOLENOID

Notes: FOR SV13 Show Image

[60] Contact

PCA504A262HR

WIRING ASSY

Contact

Notes: !CM1 U

[61] Contact

PCA504A262KR

WIRING ASSY

Contact

Notes: !CM1 V

[62] Contact

PCA504A262MR

WIRING ASSY

Contact

Notes: !CM1 W

[63] Contact

PCB504A308P

WIRING ASSY

Contact

Notes: !CM2 U

[64] Contact

PCB504A308R

WIRING ASSY

Contact

Notes: !CM2 V

[65] Contact

PCB504A308S

WIRING ASSY

Contact

Notes: !CM2 W

SKU: FDC450KXE6/A PIPING Category: Uncategorised
