FDC408HES3B FAN ASSY AND COMPRESSOR

Name: FDC408HES3B FAN ASSY AND COMPRESSOR
SKU: FDC408HES3B FAN ASSY AND COMPRESSOR
Availability: InStock

FDC408HES3B FAN ASSY AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

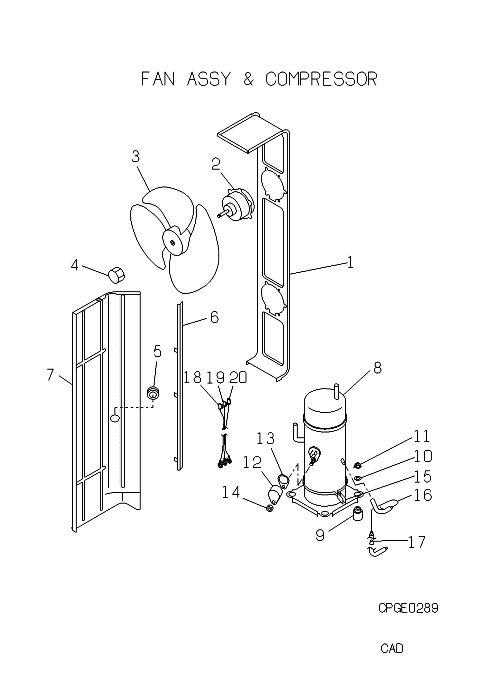

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

PCA116A092A

BASE MOTOR

[2] Out of Stock

SSA511T076A

MOTOR,AC

Substitute: OUT OF PRODUCTION

[3] In Stock

SSA431B164

PROPELLER

[4] In Stock

SSA914B006C

NUT

Notes: 1pc Show Image

[5] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[6] Contact

PCA141A062B

PLATE,BAFFLE

Contact

[7] Contact

PCA141A060A

PLATE,BAFFL

Contact

[8] In Stock

AGF201A251SA

GUA5550ES41

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[9] Out of Stock

SSA941C285B

CUSHION RU

[10] In Stock

SSA941C289

CUSHION RU

Notes: UPPER Show Image

[11] In Stock

SSA914C033

NUT

Notes: 1pc

[12] Out of Stock

AGR947K002

TERMINAL C

[14] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[15] In Stock

PCA541B011M

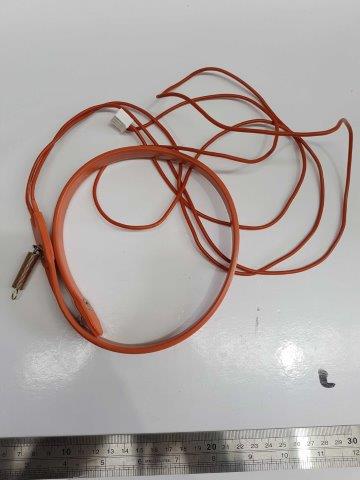

HEATER ASSY

Notes: CRANK CASE HEATER / COMPRESSOR CRANK HEATER/ LENGTH 161CM Show Image

[16] Contact

PCA315B445

CAPILLARY

Contact

Notes: !D2.2XD3.2 L200

[16-17] Out of Stock

PCA315B424F

CAP 2.2X200

[17] In Stock

SSA357H034

STRAINER

Show Image

[18] Out of Stock

SAC567N125R

CORD IV

Notes: !U FOR COMP.

[19] Out of Stock

SAC567N078W

CORD

Notes: !V FOR COMP.

[20] Out of Stock

SAC567N128L

CORD IV

Notes: !W FOR COMP.

SKU: FDC408HES3B FAN ASSY AND COMPRESSOR Category: Uncategorised
