FDC400KXZE2/1 PIPING

FDC400KXZE2/1 PIPING

FDC400KXZE2/1 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

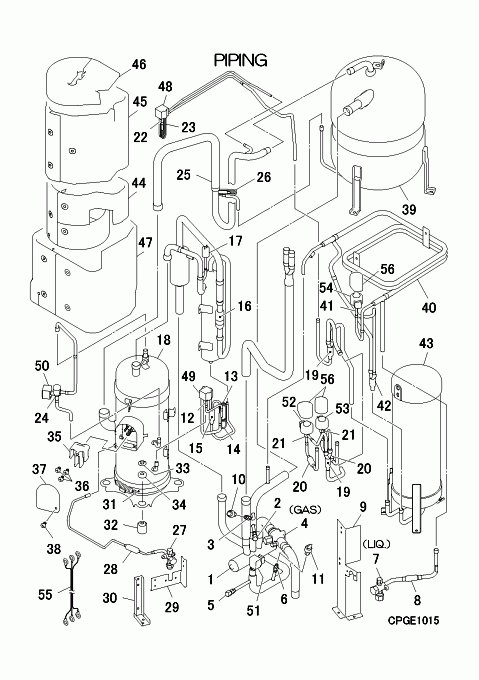

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C094

VALVE,S(4WAY)

Notes: 20S

[2] Contact

SSA327B072A

VALVE,SERVICE

Contact

[3] Contact

SSA327B076C

VALVE ASSY,SERVICE

Contact

[4] Contact

SSA381A758

VALVE,SERVICE

Contact

Notes: GAS

[5] Contact

SSA327B072B

VALVE,SERVICE

Contact

[6] Contact

SSA327B076D

VALVE ASSY,SERVICE

Contact

[7] In Stock

PCB381A080

VALVE SERVI

Notes: LIQ., LIQ Show Image

PCB381A080

[8] Contact

SSA357A059D

STRAINER

Contact

[9] Contact

PCB116A729

BRACKET

Contact

[10] In Stock

SSA551D022V

SENSOR,LP

Notes: PSL

[11] Out of Stock

SSA551D024F

SENSOR,HP

Notes: PSH Show Image

SSA551D024F

[12] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6, SV6/ LENGTH 6.9CM Show Image

SSA382A282

[12-15] Contact

PCB382A252

VALVE ASSY

Contact

[12-17] Contact

PCB354A065

SEPARATOR ASSY,OIL

Contact

[13] Contact

PCB315F149

CAPILLARY

Contact

Notes: !D1.0XD3.2 L500

[14] Contact

PCB315F214

CAPILLARY

Contact

Notes: !D1.5XD3.2 L200

[15] In Stock

SSA357A053A

STRAINER

Show Image

SSA357A053A

[16] Contact

SSA385A056

VALVE,CHECK

Contact

Substitute: SSA385A059

[17] In Stock

SSA532A085NB

SWITH HP

Notes: 63H1-1 Show Image

SSA532A085NB

[18] In Stock

AGF201A858DV

COMPRESSOR ASSY

Notes: GUC5185ND47B, ***COMPRESSORS CANNOT BE RETURNED***

[19] In Stock

SSA357A054

STRAINER

Show Image

SSA357A054

[20] In Stock

SSA357A059P

STRAINER

[21] In Stock

SSA387F044

EXP VALVE

Notes: EEVH1,2, EEV Body Show Image

SSA387F044

[22] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV1, SV6/ LENGTH 6.9CM Show Image

SSA382A282

[22-23] Contact

PCB382A253A

VALVE ASSY(2WAY)

Contact

[23] Contact

PCB315F215

CAPILLARY

Contact

Notes: !D1.8XD3.2 L500

[24] Contact

SSA382A257

VALVE(2WAY)

Contact

Notes: 20UF

[25-26] Contact

PCB321G639

PIPE,SUCTION

Contact

[26] Contact

PCB315F151

CAPILLARY

Contact

Notes: !D2.4XD4.0 L350

[27] Contact

PCB381A078

VALVE SERVI

Contact

[28] In Stock

SSA357A059A

STRAINER

[29] Contact

PCB116A851

BRACKET

Contact

[30] Contact

PCB116A854

BRACKET

Contact

[31] Contact

PCB541B014A

HEATER ASSY(CRANK)

Contact

[32] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

SSA941C356

[33] In Stock

SSA914C033

NUT

Notes: 1pc

[34] In Stock

SSA915H042

WASHER

Notes: 1pc ONLY

[35] Contact

ASA561B005

BLOCK,TERMINAL

Contact

[36] Out of Stock

ASA912A001

SCREW,PAN-CRS

Notes: M5X8, 1pc ONLY

[37] Contact

AGF947K102

COVER,TERMINAL

Contact

[38] Out of Stock

H051D05X008

SCREW

Notes: 1pc ONLY

[39] Contact

SSA351A234P

ACCUMULATOR

Contact

[40] Contact

PCB303A040C

HEAT EXCH ASSY(LIQ

Contact

[41] In Stock

SSA387F045A

VALVE EXPA

Notes: EEVSC, EEVC

[42] In Stock

SSA357A055

STRAINER

[43] Contact

PCB352A006G

RECEIVER ASSY

Contact

[44] Contact

PCB151D125

INSULATION,COMP

Contact

[45] Contact

PCB151D126

INSULATION,COMP

Contact

[46] Contact

PCB151D127

INSULATION,COMP

Contact

[47] Contact

PCB151D128

INSULATION,COMP

Contact

[48] Contact

PCB382F143A

COIL ASSY,SOLENOID

Contact

Notes: FOR SV1

[49] Contact

PCB382F143J

COIL ASSY,SOLENOID

Contact

Notes: FOR SV6

[50] Contact

PCB382F143H

COIL ASSY,SOLENOID

Contact

Notes: FOR 20UF

[51] Contact

PCB382F143G

COIL ASSY,SOLENOID

Contact

Notes: FOR 20S

[52] In Stock

SSA382F212Z

COIL,SOLENOID

Notes: FOR EEVH1 Show Image

SSA382F212Z

[53] In Stock

SSA382F212AA

COIL,SOLENOID

Notes: FOR EEVH2 Show Image

SSA382F212AA

[54] In Stock

SSA382F212AB

COIL,SOLENOID

Notes: FOR EEVSC Show Image

SSA382F212AB

[55] Contact

PCB504A413BC

WIRING ASSY

Contact

Notes: FOR COMP.

[56] Contact

PCA151C011

COVER

Contact

SKU: FDC400KXZE2/1 PIPING Category: Uncategorised
