FDC280KXZXE1/1 PIPING

FDC280KXZXE1/1 PIPING

FDC280KXZXE1/1 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

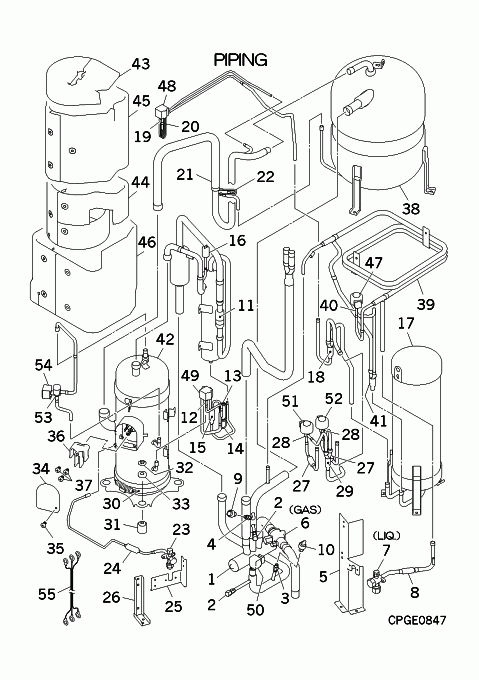

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C094

VALVE,S(4WAY)

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

SSA327B067

[3] Contact

PCA327B056A

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B071D

[4] In Stock

PCA327B056C

VALVE,SERVICE

Show Image

PCA327B056C

[5] Contact

PCB116A729

BRACKET

Contact

[6] In Stock

SSA381A748A

VALVE,SERVICE

Show Image

SSA381A748A

[7] Out of Stock

PCB381A076A

VALVE,SERVI

[8] In Stock

SSA357A007A

STRAINER

Show Image

SSA357A007A

[9] In Stock

SSA551D022V

SENSOR,LP

[10] Out of Stock

SSA551D024F

SENSOR,HP

Notes: PSH Show Image

SSA551D024F

[11] Contact

SSA385A056

VALVE,CHECK

Contact

Substitute: SSA385A059

[11-16] Contact

PCB354A065

SEPARATOR ASSY,OIL

Contact

[12] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6/ LENGTH 6.9CM Show Image

SSA382A282

[12-15] Contact

PCB382A252

VALVE ASSY

Contact

[13] Contact

PCB315F149

CAPILLARY

Contact

[14] Contact

PCB315F214

CAPILLARY

Contact

[15] In Stock

SSA357A053A

STRAINER

Show Image

SSA357A053A

[16] In Stock

SSA532A085NB

SWITH HP

Show Image

SSA532A085NB

[17] Contact

PCB352A006

RECEIVER ASSY

Contact

[18] In Stock

SSA357A054

STRAINER

Show Image

SSA357A054

[19] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6/ LENGTH 6.9CM Show Image

SSA382A282

[19-20] Contact

PCB382A253A

VALVE ASSY(2WAY)

Contact

[20] Contact

PCB315F215

CAPILLARY

Contact

[21-22] Contact

PCB321G639

PIPE,SUCTION

Contact

[22] Contact

PCB315F151

CAPILLARY

Contact

[23] Contact

PCB381A078

VALVE SERVI

Contact

[24] In Stock

SSA357A005A

STRAINER

Show Image

SSA357A005A

[25] Contact

PCB116A851

BRACKET

Contact

[26] Contact

PCB116A854

BRACKET

Contact

[27] Out of Stock

SSA357A005P

STRAINER

Show Image

SSA357A005P

[28] In Stock

SSA387F044

EXP VALVE

Notes: EEV Body Show Image

SSA387F044

[29] In Stock

SSA357A054

STRAINER

Show Image

SSA357A054

[30] In Stock

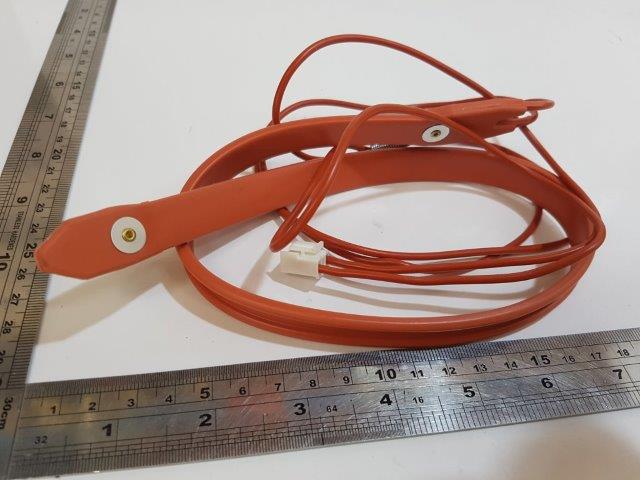

PCA541B011AT

HEATER ASSY(CRANK)

Show Image

PCA541B011AT

[31] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

SSA941C356

[32] In Stock

SSA914C033

NUT

Notes: 1pc

[33] In Stock

SSA915H042

WASHER

Notes: 1pc ONLY

[34] Contact

AGF947K102

COVER,TERMINAL

Contact

[35] Out of Stock

H051D05X008

SCREW

Notes: 1pc ONLY

[36] Contact

ASA561B005

BLOCK,TERMINAL

Contact

[37] Out of Stock

ASA912A001

SCREW,PAN-CRS

Notes: 1pc ONLY

[38] Contact

SSA351A234G

ACCUMULATOR

Contact

[39] Contact

PCB303A041

HEAT EXCH ASSY(LIQ

Contact

[40] In Stock

SSA387F045A

VALVE EXPA

Notes: EEVC

[41] In Stock

SSA357A055

STRAINER

[42] In Stock

AGF201A858DF

COMPRESSOR

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[43] Contact

PCB151D127

INSULATION,COMP

Contact

[44] Contact

PCB151D125

INSULATION,COMP

Contact

[45] Contact

PCB151D126

INSULATION,COMP

Contact

[46] Contact

PCB151D128

INSULATION,COMP

Contact

[47] In Stock

SSA382F212AB

COIL,SOLENOID

Notes: FOR EEVSC Show Image

SSA382F212AB

[48] In Stock

PCB382F119DA

COIL ASSY,SOLENOID

Notes: LENGTH 137CM Show Image

PCB382F119DA

[49] In Stock

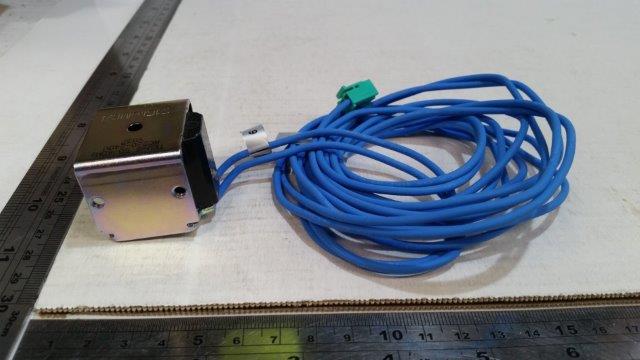

PCB382F119DY

COIL ASSY,SOLENOID

Show Image

PCB382F119DY

[50] In Stock

PCB382F119DL

COIL ASSY,SOLENOID

Notes: LENGTH 141CM Show Image

PCB382F119DL

[51] In Stock

SSA382F212Z

COIL,SOLENOID

Notes: FOR EEVH1 Show Image

SSA382F212Z

[52] In Stock

SSA382F212AA

COIL,SOLENOID

Notes: FOR EEVH2 Show Image

SSA382F212AA

[53] Contact

SSA382A257

VALVE(2WAY)

Contact

[54] In Stock

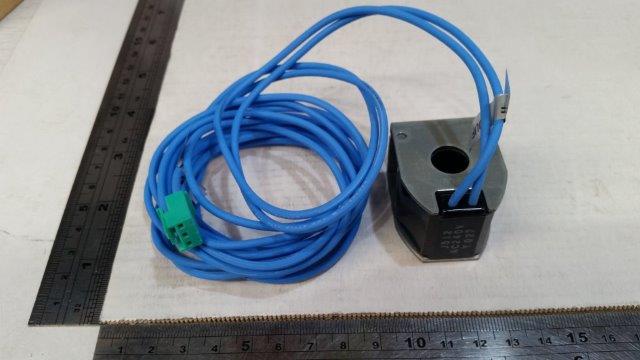

PCB382F119DV

COIL ASSY,SOLENOID

Show Image

PCB382F119DV

[55] In Stock

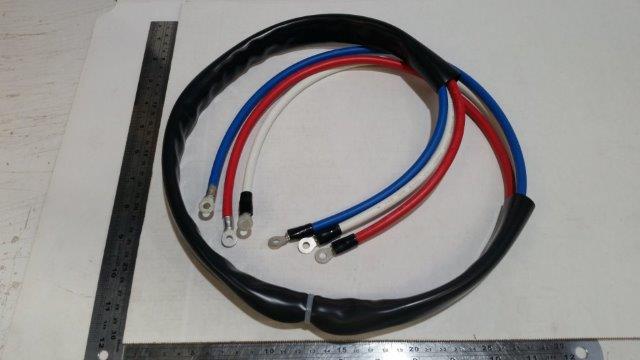

PCB504A331V

WIRING ASSY

Show Image

PCB504A331V
