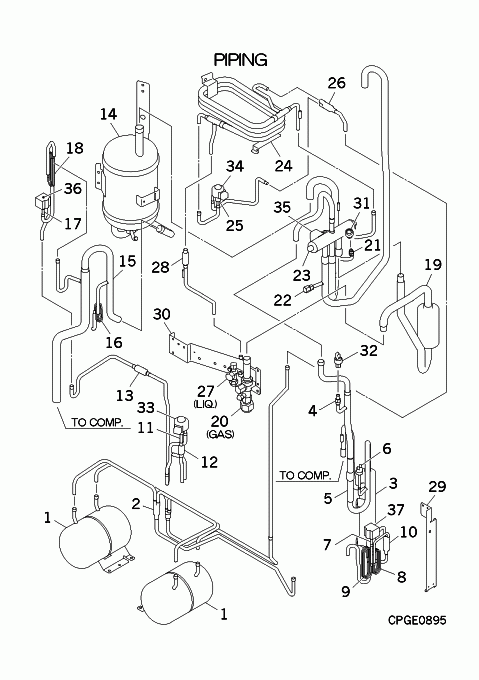

FDC280KXZPE1 PIPING

Name: FDC280KXZPE1 PIPING
SKU: FDC280KXZPE1 PIPING
Availability: InStock

FDC280KXZPE1 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

SSA352B045C

RECEIVER

Contact

[2] Contact

SSA357A053B

STRAINER

Contact

[3-10] Contact

PCB354A060

SEPARATOR ASSY,OIL

Contact

[4] In Stock

PCA327B056

VALVE ASSY,SERVICE

Show Image

[5] In Stock

SSA385A018A

VALVE CHECK

[6] In Stock

SSA532A083

SWITCH HP

Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image

[7] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6, SV6/ LENGTH 6.9CM Show Image

[7-10] Contact

PCB382A241

VALVE ASSY

Contact

[8] Contact

PCB315F083A

CAPILLARY

Contact

Notes: !D1.0XD3.2 L1000

[9] Contact

PCB315F083

CAPILLARY

Contact

Notes: !D1.0XD3.2 L1000

[10] In Stock

SSA357A053A

STRAINER

Show Image

[11] In Stock

SSA387F044A

EXP VAL XP

Notes: EEV or SM2, EXPANSION VALVE BODY ONLY Show Image

[12] In Stock

SSA357A051A

STRAINER

Show Image

[13] In Stock

SSA357A005AA

STRAINER

Show Image

[14] In Stock

SSA351A242

ACCUMULATOR

[14-16] Contact

PCB351A015

ACCUMULATOR ASSY

Contact

[15-16] Contact

PCB321G297

PIPE ASSY,SUCTION

Contact

[16] In Stock

PCB315B303C

CAPILLARY

Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image

[17] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6, SV6/ LENGTH 6.9CM Show Image

[17-18] Contact

PCB382A240

VALVE ASSY(2WAY)

Contact

[18] Contact

PCB315F073

CAPILLARY

Contact

Notes: !D1.3XD2.5 L500

[19-20] In Stock

PCB321G353D

PIPE(E)

[20] In Stock

SSA381A886

VALVE,SERVICE(3/4")

Notes: GAS, GAS - SUCTION 3/4 INCH

[21] In Stock

PCA327B056

VALVE ASSY,SERVICE

Show Image

[22] Contact

SSA327B072

VALVE,SERVICE

Contact

[23] In Stock

SSA382C093

VALVE,S(4WAY)

Notes: 20S

[24] Contact

PCB303A035

HEAT EXCH(LIQ)

Contact

[25] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[26] Contact

SSA357A053B

STRAINER

Contact

[27] In Stock

PCA381A066

VALVE ASSY

Notes: LIQ., 3/8" LIQUID Show Image

[28] In Stock

SSA357A005AA

STRAINER

Show Image

[29] Contact

PCB116A949

BRACKET

Contact

[30] In Stock

PCB116A935

BRACKET

[31] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[32] In Stock

SSA551D024G

SENSOR,HP

[33] In Stock

SSA382F212W

COIL SOLENOID

Notes: FOR EEVH Show Image

[34] In Stock

SSA382F210AD

COIL SOLENOID

Notes: FOR EEVC Show Image

[35] In Stock

PCB382F107AH

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S/ LENGTH 70.5CM Show Image

[36] Contact

PCB382F127C

COIL ASSY,SOLENOID

Contact

Notes: FOR SV1

[37] Contact

PCB382F127D

COIL ASSY,SOLENOID

Contact

Notes: FOR SV6
