FDC280KXZE2/1 CONTROL AND PARTS SET

Name: FDC280KXZE2/1 CONTROL AND PARTS SET
SKU: FDC280KXZE2/1 CONTROL AND PARTS SET
Availability: InStock

FDC280KXZE2/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

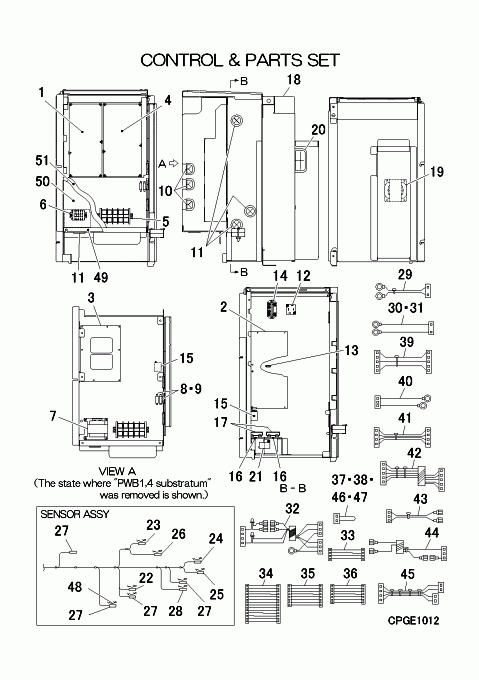

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCB505A280A

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLAY PARTS PWB1

[1-47] Contact

PCB501A315B

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PCB505A283AA

PWB ASSY (INV.)

Notes: ONLY FOR SUPPLAY PARTS PWB2

[3] In Stock

PCB505A282A

PWB ASSY (N.F)

Notes: ONLY FOR SUPPLAY PARTS PWB3

[4] In Stock

PCB505A281F

PWB ASSY (POWER)

Notes: ONLY FOR SUPPLAY PARTS PWB4

[5] In Stock

SSA561B712A

BLOCK TERMINAL

Notes: TB1 Show Image

[6] In Stock

SSA561B693W

BLOCK,TERMI

Notes: TB2 Show Image

[7] In Stock

SSA554B073

REACTOR

Notes: L3 Show Image

[8] In Stock

SSA564A163

FUSE (CURRENT)

Notes: F 6.3A

[9] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[10] Contact

SSA947B017

GROMMET

Contact

[11] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[12] In Stock

PCA008A276A

PARTS SET(DIODE)

Notes: ONLY FOR SUPPLAY PARTS DM, DIODE MODULE & HEAT PASTE Show Image

[13] In Stock

SSA551A192AA

SENSOR ASSY

Notes: THO-P1

[14] In Stock

SSA521A727A

RELAY

Notes: 52X1

[15] Contact

SSA554D244

FILTER,NOISE

Contact

[16] Contact

SSA552F983

CAPACITOR

Contact

Notes: C1-1,2

[17] Contact

SSA553A661KP

RESISTOR

Contact

Notes: R1-1,2

[18] Contact

PCB438A101A

DUCT ASSY

Contact

[19] Contact

SSA554B123

REACTOR

Contact

Notes: L1

[20] Contact

SSA947B121

GROMMET

Contact

[21] Contact

SSA551J030A

SENSOR,CURRENT

Contact

[22] In Stock

PSA551A015B

SENSOR ASSY

Notes: THO-C1 Show Image

[23] In Stock

PSA551A016G

SENSOR ASSY

Notes: THO-H, LENGTH 147.5CM Show Image

[24] In Stock

PSA551A015J

SENSOR ASSY

Notes: THO-R3, THO-R3/ LENGTH 22.5CM

[25] In Stock

PSA551A015K

SENSOR ASSY

Notes: THO-R4 Show Image

[26] In Stock

PSA551A015L

SENSOR ASSY

Notes: THO-SC, SUB-COOLING THERMISTOR 1 Show Image

[27] In Stock

PSA551A016M

SENSOR ASSY

Notes: THO-A,D1,R1,S, THO-A,D1,R1,S/ LENGTH 223CM Show Image

[28] Contact

PCB551A034P

SENSOR ASSY

Contact

Substitute: PSA551A016P Notes: THO-R2, SUB =PSA551A016P

[29] Contact

PCB504A412G

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- PWB1 CNX1

[30] Contact

PCB504A284BF

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- CNSL1

[31] Contact

PCB504A284BG

WIRING ASSY

Contact

Notes: TB2 A2,TB2 B2- CNSL2

[32] Contact

PCB504A412FY

WIRING ASSY

Contact

[33] Contact

PCB504A412GM

WIRING ASSY

Contact

Notes: PWB1 CNE1- PWB4 CNE2

[34] Contact

PCB504A412N

WIRING ASSY

Contact

Notes: PWB1 CNK1- PWB4 CNK2

[35] Contact

PCB504A412P

WIRING ASSY

Contact

Notes: PWB1 CNFAN3- PWB4 CNFAN4

[36] Contact

PCB504A412GR

WIRING ASSY

Contact

Notes: PWB1 CNK3- PWB4 CNK4

[37] Contact

PCB504A284BB

WIRING ASSY

Contact

Notes: PWB1 CNS1

[38] In Stock

PCB504A284BC

WIRING ASSY

Notes: PWB1 CNS2 Show Image

[39] Contact

PCB504A412KJ

WIRING ASSY

Contact

Notes: PWB3-1 CN2- PWB4 CNW

[40] Contact

PCB504A413FT

WIRING ASSY

Contact

Notes: PWB2-1 CNR1- 52X1-1 5,52X1-1 6

[41] Contact

PCB504A412BH

WIRING ASSY

Contact

Notes: PWB2-1 CNC3- CT1

[42] Contact

PCB504A413BK

WIRING ASSY

Contact

Notes: PWB1 CNI1- PWB2-1 CNI2

[43] Contact

PCB504A412FP

WIRING ASSY

Contact

Notes: PWB3-1 CN1- DS,DS

[44] Contact

PCB504A412JR

WIRING ASSY

Contact

[45] Contact

PCB504A413FM

WIRING ASSY

Contact

Notes: PWB4 CNM1- PWB2-1 CNR3,PWB2-1 CNR2

[46] Contact

PCB504A284AP

WIRING ASSY

Contact

Notes: PWB1 CNG1

[47] Contact

PCB504A284AR

WIRING ASSY

Contact

Notes: PWB1 CNG2

[48] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR ASSY Show Image

[49-51] Contact

PCB142A758

COVER ASSY(CONTROL

Contact

[50] Contact

PCB011G024AB

LABEL,WIRING

Contact

Notes: !SURFACE ATTACHMENT

[51] Contact

PCB011G024A

LABEL,NOTICE

Contact

Notes: !BACK ATTACHMENT

[52] Contact

PSB011F373B

LABEL,MODEL NAME

Contact

Notes: !
