FDC224KXZXE1/1 PANEL ASSY

Name: FDC224KXZXE1/1 PANEL ASSY
SKU: FDC224KXZXE1/1 PANEL ASSY
Availability: InStock

FDC224KXZXE1/1 PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

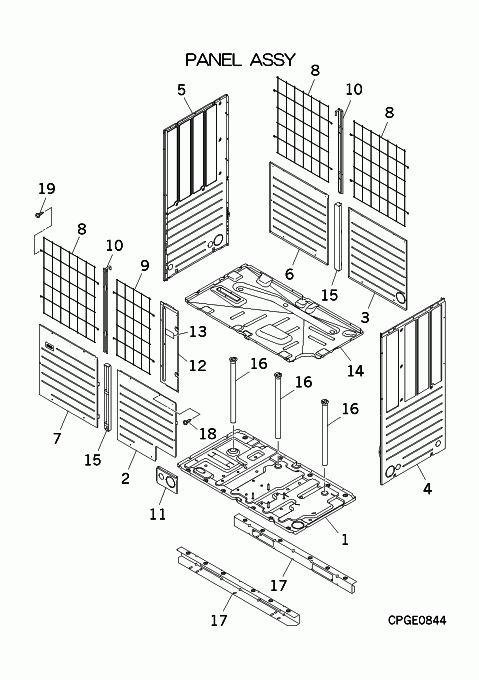

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCB111A067A

BASE ASSY

Contact

[2] In Stock

PCB122A122G

PANEL ASSY FRONT

[3] In Stock

PCB122A091A

PANEL ASSY FRONT

[4] Out of Stock

PCB123A090J

PANEL ASSY,SIDE

[5] Out of Stock

PCB123A090K

PANEL ASSY SIDE

[6] In Stock

PCB122A091B

PANEL ASSY FRONT

[7] In Stock

PCB122A122A

PANEL ASSY FRONT

[8] Out of Stock

PCB131A042

GUARD,FIN

[9] Out of Stock

PCB131A042A

GUARD,FIN

[10] Out of Stock

PCB115A121

FRAME(U)

[11] Out of Stock

PCB142A457

COVER

[12] Out of Stock

PCB122A094B

PANEL,FRONT(U)

[13] Out of Stock

RSA011H016G

LABEL,NOTICE

[14] In Stock

PCB454A021F

PAN ASSY,DRAIN

[15] In Stock

PCB115A116B

FRAME

[16] In Stock

PCB423B002

HOSE ASSY,DRAIN

[17] In Stock

PCB115A127

STIFFENER

[18] In Stock

SSA913D020

SCREW TAP

Notes: M5X10, 1pc ONLY Show Image

[19] In Stock

SSA913D020D

SCREW,TAP & WASHER

Notes: M5X14, 1pc ONLY, M5X14

SKU: FDC224KXZXE1/1 PANEL ASSY Category: Uncategorised
