FDC224KXZXE1/1 HEAT EXCH. ASSY

Name: FDC224KXZXE1/1 HEAT EXCH. ASSY
SKU: FDC224KXZXE1/1 HEAT EXCH. ASSY
Availability: InStock

FDC224KXZXE1/1 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

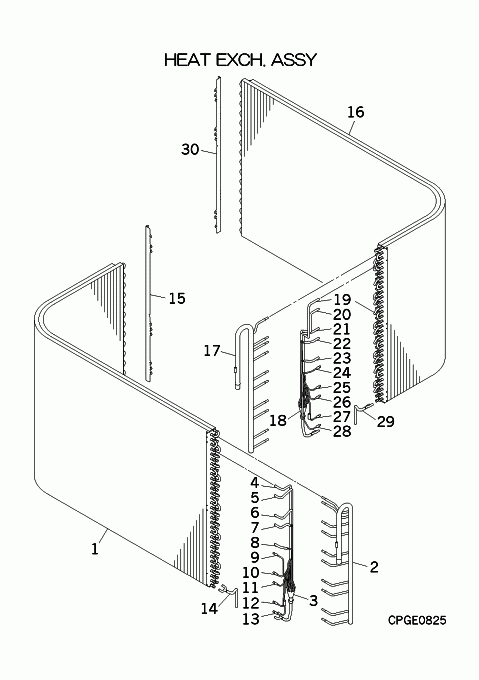

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-15] In Stock

PCB301A172

HEAT EXCH ASSY

Notes: FRONT, ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***

[2] Contact

PCB315D227

HEADER ASSY,GAS

Contact

Notes: !

[3] Contact

SSA315A309C

DISTRIBUTOR

Contact

Notes: !

[3-13] Contact

PCB315A130

DISTRIBUTOR ASSY

Contact

[4] Contact

PCB315B920

CAPILLARY ASSY(1)

Contact

Notes: !D3.0XD4.0 L150

[5] Contact

PCB315B921

CAPILLARY ASSY(2)

Contact

Notes: !D3.0XD4.0 L300

[6] Contact

PCB315B922

CAPILLARY ASSY(3)

Contact

Notes: !D3.0XD4.0 L360

[7] Contact

PCB315B923

CAPILLARY ASSY(4)

Contact

Notes: !D2.8XD4.0 L380

[8] Contact

PCB315B924

CAPILLARY ASSY(5)

Contact

Notes: !D2.6XD4.0 L280

[9] Contact

PCB315B945

CAPILLARY(6)

Contact

Notes: !D2.4XD4.0 L400

[10] Contact

PCB315F075

CAPILLARY(7)

Contact

Notes: !D2.6XD4.0 L340

[11] Contact

PCB315F076

CAPILLARY(8)

Contact

Notes: !D2.4XD4.0 L400

[12] Contact

PCB315F077

CAPILLARY(9)

Contact

Notes: !D2.6XD4.0 L340

[13] Contact

PCB315B949

CAPILLARY(10)

Contact

Notes: !D2.4XD4.0 L320

[14] Contact

PCB321G231

PIPE ASSY(L)

Contact

[15] Contact

PCB141A042

PLATE,BAFFLE

Contact

[16-30] In Stock

PCB301A172A

HEAT EXCH ASSY AIR

Notes: REAR, ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***

[17] Contact

PCB315D229

HEADER ASSY,GAS

Contact

Notes: !

[18] Contact

SSA315A309C

DISTRIBUTOR

Contact

Notes: !

[18-28] Contact

PCB315A130A

DISTRIBUTOR ASSY

Contact

[19] Contact

PCB315B930

CAPILLARY ASSY(1)

Contact

Notes: !D3.0XD4.0 L150

[20] Contact

PCB315B931

CAPILLARY ASSY(2)

Contact

Notes: !D3.0XD4.0 L300

[21] Contact

PCB315B932

CAPILLARY ASSY(3)

Contact

Notes: !D3.0XD4.0 L360

[22] Contact

PCB315B933

CAPILLARY ASSY(4)

Contact

Notes: !D2.8XD4.0 L380

[23] Contact

PCB315B934

CAPILLARY ASSY(5)

Contact

Notes: !D2.6XD4.0 L280

[24] Contact

PCB315B952

CAPILLARY(6)

Contact

Notes: !D2.4XD4.0 L400

[25] Contact

PCB315B953

CAPILLARY(7)

Contact

Notes: !D2.6XD4.0 L340

[26] Contact

PCB315F078

CAPILLARY(8)

Contact

Notes: !D2.4XD4.0 L400

[27] Contact

PCB315B955

CAPILLARY(9)

Contact

Notes: !D2.6XD4.0 L340

[28] Contact

PCB315B956

CAPILLARY(10)

Contact

Notes: !D2.4XD4.0 L320

[29] Contact

PCB321G231A

PIPE ASSY(L)

Contact

[30] Contact

PCB141A042

PLATE,BAFFLE

Contact

SKU: FDC224KXZXE1/1 HEAT EXCH. ASSY Category: Uncategorised
