FDC224KXZRE1/1 PIPING

Name: FDC224KXZRE1/1 PIPING
SKU: FDC224KXZRE1/1 PIPING
Availability: InStock

FDC224KXZRE1/1 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

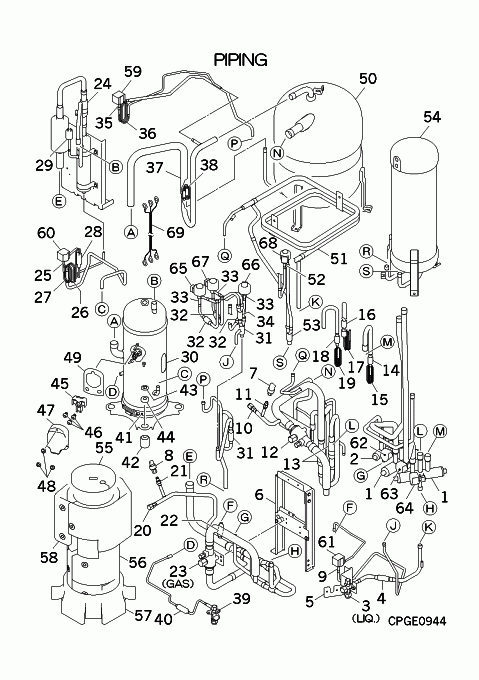

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C096A

VALVE, S(4WAY)

Notes: Reversing Valve Body

[2] In Stock

SSA382C101

4 WAY VALVE

[3] Contact

PCB381A074

VALVE,SERVICE(3/8"

Contact

Notes: LIQ.

[4] In Stock

SSA357A007A

STRAINER

Show Image

[5] Contact

PCB116B197

BRACKET

Contact

[6] Contact

PCB116B192

BRACKET ASSY

Contact

[7] In Stock

SSA551D022V

SENSOR,LP

[8] In Stock

SSA551D024A

SENSOR HP

Notes: HIGH PRESSURE TRANSDUCER - PSH Show Image

[9] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6/ LENGTH 6.9CM Show Image

[10] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[11] Contact

PCA327B056A

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B071D

[12] In Stock

SSA381A748A

VALVE,SERVICE

Show Image

[13] Contact

SSA385A056

VALVE,CHECK

Contact

Substitute: SSA385A059

[14] In Stock

SSA357A051B

STRAINER

Show Image

[14-15] Contact

PCB321G840

PIPE ASSY

Contact

[15] Contact

PCB315F330

CAPILLARY

Contact

[16] In Stock

SSA357A051B

STRAINER

Show Image

[16-17] Contact

PCB321G840A

PIPE ASSY

Contact

[17] Contact

PCB315F330A

CAPILLARY

Contact

[18] In Stock

SSA357A051B

STRAINER

Show Image

[18-19] Contact

PCB321G840B

PIPE ASSY

Contact

[19] Contact

PCB315F330

CAPILLARY

Contact

[20] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[21] Contact

PCA327B056A

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B071D

[22] In Stock

SSA357A059T

STRAINER

[23] In Stock

SSA381A748A

VALVE,SERVICE

Show Image

[24] Contact

SSA385A056

VALVE,CHECK

Contact

Substitute: SSA385A059

[24-28] Contact

PCB354A068

OIL SEPARATOR

Contact

[24-29] Contact

PCB354A067

SEPARATOR ASSY,OIL

Contact

[25] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6/ LENGTH 6.9CM Show Image

[25-28] Contact

PCB382A255

VALVE ASSY

Contact

[26] Contact

PCB315F153

CAPILLARY

Contact

[27] Contact

PCB315B831

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[28] In Stock

SSA357A053A

STRAINER

Show Image

[29] In Stock

SSA532A085NB

SWITH HP

Show Image

[30] In Stock

AGT201C824FF

COMPRESSOR

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[31] In Stock

SSA357A054

STRAINER

Show Image

[32] In Stock

SSA357A051A

STRAINER

Show Image

[33] In Stock

SSA387F045

VALVE EXPAN

Show Image

[34] In Stock

SSA357A055

STRAINER

[35] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6/ LENGTH 6.9CM Show Image

[35-36] Contact

PCB382A259

VALVE ASSY(2WAY)

Contact

[36] Contact

PCB315B817

CAPILLARY

Contact

Notes: !D1.3XD3.2 L500

[37-38] Contact

PCB321G133C

PIPE,SUCTION(2)

Contact

[38] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[39] Contact

PCB381A092

VALVE,SERVICE

Contact

[40] In Stock

SSA357A005A

STRAINER

Show Image

[41] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[42] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[43] In Stock

SSA914C033

NUT

Notes: 1pc

[44] In Stock

SSA915H042

WASHER

Notes: 1pc ONLY

[45] Out of Stock

ASA561B002

BLOCK,TERMINAL

[46] Out of Stock

SSA912A001

SCREW

Substitute: RE60179 Notes: 1pc ONLY

[47] In Stock

PCB008A195

PARTS SET

Notes: Includes Cover, Nuts x3 & Gasket Show Image

[48] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[49] Contact

AGT151A101

GASKET

Contact

[50] Contact

SSA351A234G

ACCUMULATOR

Contact

[51] Contact

PCB303A041

HEAT EXCH ASSY(LIQ

Contact

[52] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: 'BODY' ONLY. Does NOT include coil

[53] In Stock

SSA357A055

STRAINER

[54] Contact

PCB352A006

RECEIVER ASSY

Contact

[55] In Stock

PCA151D034

INSULATO CO

[56] In Stock

PCB151D088B

INSULATION,COMP

[57] In Stock

PCB151D100A

INSULATION,COMP

[58] Contact

PCB151D117A

INSULATION,COMP

Contact

[59] In Stock

PCB382F119DA

COIL ASSY,SOLENOID

Notes: LENGTH 137CM Show Image

[60] In Stock

PCB382F119DD

COIL ASSY,SOLENOID

[61] In Stock

PCB382F119FH

COIL ASSY,SOLENOID

[62] Contact

PCB382F119DZ

COIL ASSY,SOLENOID

Contact

[63] Contact

PCB382F119FL

COIL ASSY,SOLENOID

Contact

[64] Contact

PCB382F119FP

COIL ASSY,SOLENOID

Contact

[65] In Stock

SSA382F212Z

COIL,SOLENOID

Notes: FOR EEVH1 Show Image

[66] Contact

SSA382F212AM

COIL,SOLENOID

Contact

[67] Contact

SSA382F212AN

COIL,SOLENOID

Contact

[68] Contact

SSA382F210BK

COIL,SOLENOID

Contact

[69] Contact

PCB504A338D

WIRING ASSY

Contact
