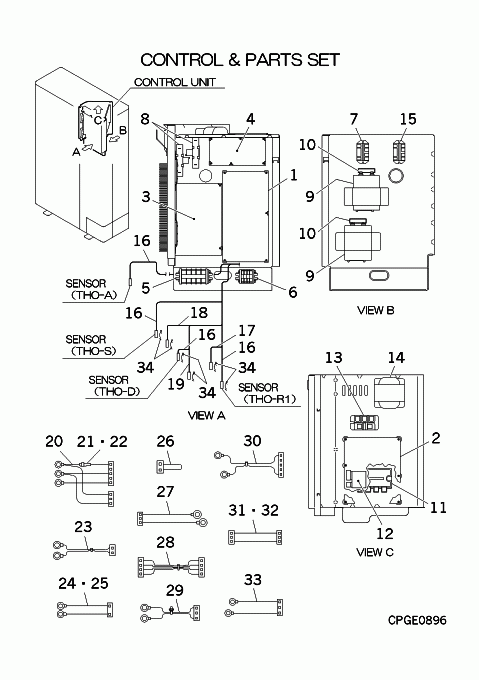

FDC224KXZPE1/1 CONTROL AND PARTS SET

Name: FDC224KXZPE1/1 CONTROL AND PARTS SET
SKU: FDC224KXZPE1/1 CONTROL AND PARTS SET
Availability: InStock

FDC224KXZPE1/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A181FD

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS PWB1, PWB1 Show Image

[1-33] Contact

PCB501A279

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PCB505A196FA

PWB ASSY(INVERTER)

Notes: ONLY FOR SUPPLY PARTS PWB2, PWB2 - INVERTER BOARD - CONFIRM MODEL & SERVICE CODE - "FDCA160VS" has different boards

[3] In Stock

PCB505A268AB

PWB ASSY (N.F)

Notes: ONLY FOR SUPPLY PARTS PWB3, PWB3 - Noise Filter PCB

[4] In Stock

PCB505A194B

PWB ASSY

Notes: ONLY FOR SUPPLY PARTS PWB4, POWER BOARD

[5] In Stock

SSA561B693L

BLOCK,TERMINAL

Notes: TB1

[6] In Stock

SSA561B693W

BLOCK,TERMI

Notes: TB2 Show Image

[7] In Stock

SSA521A727

RELAY

Notes: 52X1, 52X1/ LENGTH 7CM Show Image

[8] In Stock

SSA553A379

RESISTOR

Notes: R1,2, 15O (Ohm) Show Image

[9] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[10] Out of Stock

SSA553A380

RESISTOR

Notes: R3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[11] In Stock

PCB008A213C

TRANSISTOR(POWER)

Notes: TM, IPM, Comes with heat paste and screws Show Image

[12] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf

[13] In Stock

PCB008A212A

DIODE(MODULE)

Notes: DM Show Image

[14] In Stock

SSA554B097A

REACTOR

Notes: L1 Show Image

[15] In Stock

SSA521A715A

RELAY

Notes: 52X2, 52X1,52X2

[16] In Stock

PSA551A014R

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1 / LENGTH 192CM Show Image

[17] In Stock

PCB551A029B

SENSOR ASSY

Notes: THO-H Show Image

[18] In Stock

PCB551A029M

SENSOR ASSY

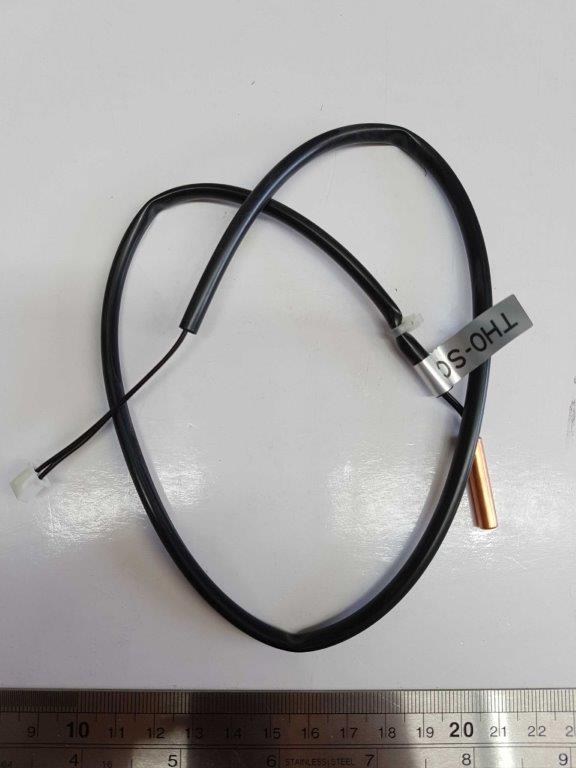

Notes: THO-SC, THO-SC/ LENGTH 60CM Show Image

[19] In Stock

PSA551A023L

SENSOR ASSY

Notes: THO-C1, THO-C1/ LENGTH 130.5CM Show Image

[20-22] Out of Stock

PCB504A384

WIRING ASSY

Notes: PWB3 L1 ,PWB3 N ,PWB3 L2 - PWB1 CNW,PWB4 CNW1, PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1

[21] In Stock

SSA564A149AH

FUSE(CURRENT)

Notes: F 5A Show Image

[22] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[23] Contact

PCB504A357A

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- PWB1 CNX1

[24] Contact

PCB504A284BF

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- CNSL1

[25] Contact

PCB504A284BG

WIRING ASSY

Contact

Notes: TB2 A2,TB2 B2- CNSL2

[26] In Stock

PCA504A264FF

WIRING ASSY

Notes: PWB1 CNS1

[27] Out of Stock

PCB504A384G

WIRING ASSY

Notes: PWB1 CNM- 52X2 5,52X2 6

[28] Contact

PCB504A357D

WIRING ASSY

Contact

Notes: PWB1 CNI1- PWB2 CNI2

[29] Contact

PCB504A384AA

WIRING ASSY

Contact

Notes: 52X1 5,52X1 6- PWB2 CNR

[30] In Stock

PCB504A357M

WIRING ASSY

Notes: IPM P,IPM N- PWB2 CAN

[31] Contact

PCB504A384N

WIRING ASSY

Contact

Notes: PWB1 CNA1- PWB4 CNA3

[32] Contact

PCB504A384M

WIRING ASSY

Contact

Notes: PWB1 CNA2- PWB4 CNA4

[33] In Stock

PCB504A384T

WIRING ASSY

Notes: PWB3 N ,E- PWB3 CN1, PWB3 No,E- PWB3 CN/ LENGTH 29.5CM Show Image

[34] In Stock

PSA941F001

SPRING LEAF

Notes: FOR THO-R1,D,S,C1,H,SC, 1pc ONLY Show Image

[35] Contact

PCB011G013D

LABEL,WIRING

Contact

Notes: !

[36] Contact

PCB011G013F

LABEL,WIRING

Contact

Notes: !

[37] Contact

PSB011F130WL

LABEL,MODEL NAME

Contact

Notes: !
