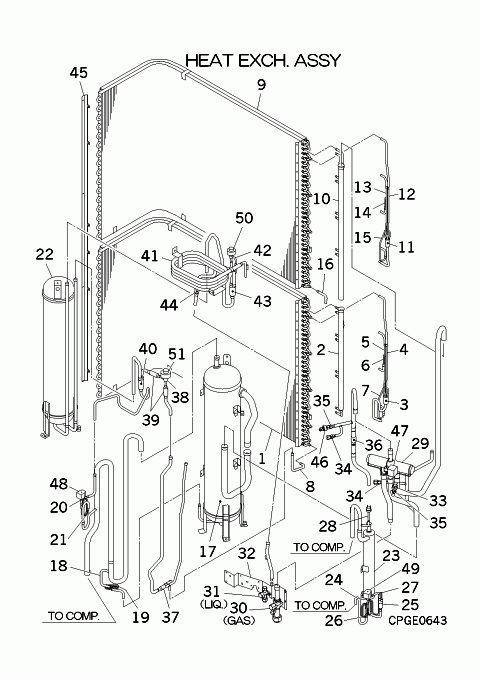

FDC224KXE6/L HEAT EXCH. ASSY

Name: FDC224KXE6/L HEAT EXCH. ASSY
SKU: FDC224KXE6/L HEAT EXCH. ASSY
Availability: InStock

FDC224KXE6/L HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] Out of Stock

PCB301A155

HEAT EXCH ASSY(AIR)

Notes: BOTTOM

[2] Contact

PCB315D300

HEADER ASSY,GAS

Contact

Notes: Not suitable for this model

[3] Contact

PCB315A123

DISTRIBUTOR

Contact

Notes: Not suitable for this model

[3-7] Contact

PCB315A121

DISTRIBUTOR ASSY

Contact

[4] Contact

PCB315B833

CAPILLARY

Contact

Notes: !D2.6XD5.0 L300

[5] Contact

PCB315B834

CAPILLARY

Contact

Notes: !D3.5XD5.0 L300

[6] Contact

PCB315B835

CAPILLARY

Contact

Notes: !D2.8XD5.0 L300

[7] Contact

PCB315B836A

CAPILLARY

Contact

Notes: !D2.8XD5.0 L300

[8] Contact

PCB321F813

PIPE

Contact

[9-16] In Stock

PCB301A155A

HEAT EXCH ASSY(AIR)

Notes: UPPER

[10] Contact

PCB315D300A

HEADER ASSY,GAS

Contact

Notes: Not suitable for this model

[11] Contact

PCB315A123

DISTRIBUTOR

Contact

Notes: Not suitable for this model

[11-15] Contact

PCB315A121A

DISTRIBUTOR ASSY

Contact

[12] Contact

PCB315B833

CAPILLARY

Contact

Notes: !D2.6XD5.0 L300

[13] Contact

PCB315B834

CAPILLARY

Contact

Notes: !D3.5XD5.0 L300

[14] Contact

PCB315B835

CAPILLARY

Contact

Notes: !D2.8XD5.0 L300

[15] Contact

PCB315B836

CAPILLARY

Contact

Notes: !D3.5XD5.0 L300

[16] Contact

PCB321F747

PIPE

Contact

[17] In Stock

SSA351A229

ACCUMULATOR

[18-19] Contact

PCB321F838A

PIPE(OIL)

Contact

[19] In Stock

PCB315B303C

CAPILLARY

Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image

[20] In Stock

SSA382A249A

VALVE,S(2WAY)

Notes: SV1 Show Image

[20-21] Contact

PCB382A196

VALVE ASSY(2WAY)

Contact

[21] Contact

PCB315B817

CAPILLARY

Contact

Notes: !D1.3XD3.2 L500

[22] In Stock

PCB352A004B

RECEIVER ASSY

[23-28] In Stock

PCB354A042B

SEPARATOR ASSY,OIL

[24] In Stock

SSA382A249A

VALVE,S(2WAY)

Notes: SV6, SV1 Show Image

[24-27] In Stock

PCA321C578B

PIPE ASSY

[25] Out of Stock

SSA357A048

STRAINER

[26] Contact

PCA315B790

CAPILLARY

Contact

Notes: !D2.2XD3.2 L300, !D2.2XD3.2 L340

[27] Contact

PCB315B832

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[28] In Stock

SSA532A083

SWITCH HP

Notes: 63H1-1, (HIGH PRESSURE SWITCH) - 63H1 Show Image

[29] In Stock

SSA382C086

VALVE,S(4WAY)

Notes: 20S

[30] In Stock

SSA381A886

VALVE,SERVICE(3/4")

Notes: GAS, GAS - SUCTION 3/4 INCH

[31] In Stock

PCA381A066

VALVE ASSY

Notes: 3/8" LIQUID Show Image

[32] Contact

PCB116A633

BRACKET

Contact

[33] In Stock

SSA551D022C

SENSOR LP

Notes: PSL, LOW PRESSURE TRANSDUCER Show Image

[34] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[35] Out of Stock

SSA327B067A

VALVE,SERVI

[36] In Stock

SSA385A018A

VALVE CHECK

[37] Contact

PCB315A122

DISTRIBUTOR ASSY

Contact

[38] In Stock

SSA387F044

EXP VALVE

Notes: EEVH, EEV Body Show Image

[38-40] Out of Stock

PCB387F080J

VALVE ASSY,EXPANSI

[39] In Stock

SSA357A005AF

STRAINER

Show Image

[40] Contact

SSA357A024J

STRAINER

Contact

[41] Contact

PCB303A023

HEAT EXCH(LIQ)

Contact

[41-44] Contact

PCB303A022C

HEAT EXCH ASSY(LIQ

Contact

[42] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEVSC, 'BODY' ONLY. Does NOT include coil

[43] Contact

SSA357A024K

STRAINER

Contact

[44] In Stock

SSA357A007A

STRAINER

Show Image

[45] In Stock

PCB141A039

PLATE ASSY,BAFFLE

[46] In Stock

SSA551D024A

SENSOR HP

Notes: PSH, HIGH PRESSURE TRANSDUCER - PSH Show Image

[47] In Stock

PCB382F107ZA

COIL ASSY, SOLENOID

Notes: FOR 20S, FOR 20S‚ - Solenoid for Reversing Valve

[48] In Stock

PCB382F105AB

COIL ASSY,SOLENOID

Notes: FOR SV1

[49] In Stock

PCB382F105Z

COIL ASSY,SOLENOID

Notes: FOR SV6 Show Image

[50] In Stock

SSA382F210Z

COIL,SOLENO

Notes: FOR EEVSC, LENGTH 206CM Show Image

[51] In Stock

SSA382F229F

COIL,SOLENOID

Notes: FOR EEVH Show Image
