FDC140KXEN6/L CONTROL AND PARTS SET

Name: FDC140KXEN6/L CONTROL AND PARTS SET
SKU: FDC140KXEN6/L CONTROL AND PARTS SET
Availability: InStock

FDC140KXEN6/L CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

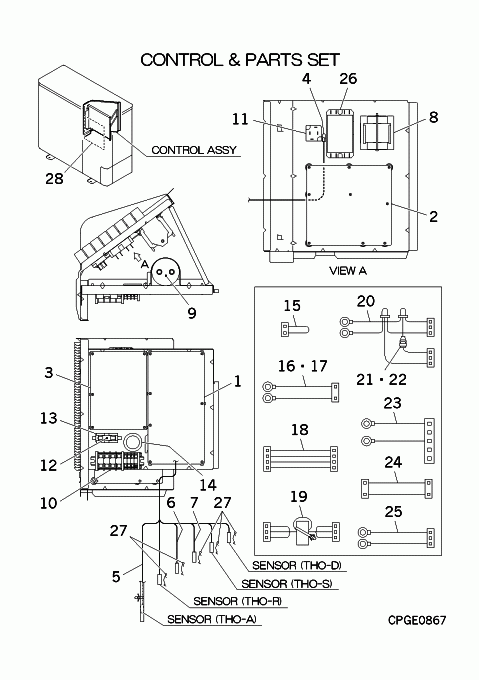

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

PCA505A174BK

PWB ASSY (CONTROL)

Substitute: PCA505A168CL Notes: PWB1, CHECK SERVICE CODE. /M uses different PWB. **Plugs into Fan Motor**

[1-26] Contact

PCA501A161A

CONTROL ASSY

Contact

Notes: Not suitable for this model, NOT AVAILABLE

[2] In Stock

PCA505A194SJ

PWB ASSY (INVERTER)

Notes: PWB2, INVERTER

[3] In Stock

PCA505A127ZC

PWB ASSY (NOISE.FILTER)

Notes: PWB3, Noise Filter -

[4] Out of Stock

SSA551A192L

SENSOR

Substitute: SSA551A256L Notes: THO-AF, THO-IPM THO-TR THO-AF Show Image

[5] In Stock

PCA551A034B

SENSOR ASSY

Notes: THO-A,S,D,R, THO-A,S,D,R1. 4 sensors on same plug. Show Image

[6] Out of Stock

PCA551A033

SENSOR¯¿½

Notes: THO-SC

[7] Out of Stock

PCA551A033A

SENSOR¯¿½

Notes: THO-H, THO-H¯¿½ Show Image

[8] In Stock

SSA554B092

REACTOR

Notes: L1

[9] In Stock

SSA552F601

CAPACITOR

Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image

[10] In Stock

SSA561B693K

BLOCK,TERMINAL¯¿½

Notes: TB, TB¯¿½

[11] Out of Stock

SSA555A662

DIODE

Substitute: PCA008A276A Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image

[12] In Stock

PCA006A091

FUSE(CURRENT)

Notes: F 30A, 30A FUSE - HAS SOLDERED WIRES ON EACH END Show Image

[13] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[14] Contact

S750W30

GROMMET

Contact

Notes: D35, D35¯¿½

[15] In Stock

PCA504A264FF

WIRING ASSY¯¿½

Notes: PWB1 CNS1, PWB1 CNS1¯¿½

[16] In Stock

PCA504A264FG

WIRING ASSY¯¿½

Notes: TB A1,TB B1- CNLS1, TB A1,TB B1-CNLS1¯¿½

[17] In Stock

PCA504A264FH

WIRING ASSY¯¿½

Notes: TB A2,TB B2- CNLS2, TB A2,TB B2-CNLS2¯¿½

[18] In Stock

PCA504A264FA

WIRING ASSY¯¿½

Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1-PWB2 CNI2¯¿½

[19] In Stock

PCA504A264FB

WIRING ASSY¯¿½

Notes: PWB1 CNI3- PWB2 CNI4, PWB1 CNI3-PWB2 CNI4¯¿½

[20-22] Contact

PCA504A264FC

WIRING ASSY

Contact

Notes: C1 +,C1 -- PWB1 CNA1,PWB1 CNA2, C1 +,C1 --PWB1 CNA1,PWB1 CNA2

[21] In Stock

SSA564A149AG

FUSE(CURRENT)¯¿½

Notes: F 4A, F 4A¯¿½- 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[22] In Stock

RWC564B002

HOLDER,FUSE¯¿½

Show Image

[23] In Stock

PCA504A264FN

WIRING ASSY¯¿½

Notes: PWB3 L1 ,PWB3 N - PWB CNW, PWB3 L1O,PWB3 NO-PWB1 CNW¯¿½ Show Image

[24] In Stock

PCA504A264GD

WIRING ASSY¯¿½

Notes: PWB3 CN2 CN2-2- PWB1 CNX1, PWB3 CN2 CN2-2-PWB1 CNX1¯¿½

[25] Contact

PCA504A264GG

WIRING ASSY¯¿½

Contact

Notes: TB A1,TB B1- PWB3 CN1, TB A1,TB B1-PWB3 CN1¯¿½

[26] In Stock

SSA556J035A

IC (ACTIVE CONVERTER)

Notes: A/F MODULE (Active Filter Module) - Also known as ACT/IPM Show Image

[27] Out of Stock

RKJ941F001

SPRING LEAF

Substitute: PSA941F001 Notes: FOR THO-R,D,S,SC,H Show Image

[28] Contact

PSC011G555

LABEL,WIRING

Contact

Notes: Not suitable for this model

[29] Contact

PSB011F171CB

LABEL,MODEL NAME

Contact

Notes: Not suitable for this model
