FDC125VNP-W/1 CONTROL AND PARTS SET

Name: FDC125VNP-W/1 CONTROL AND PARTS SET
SKU: FDC125VNP-W/1 CONTROL AND PARTS SET
Availability: InStock

FDC125VNP-W/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

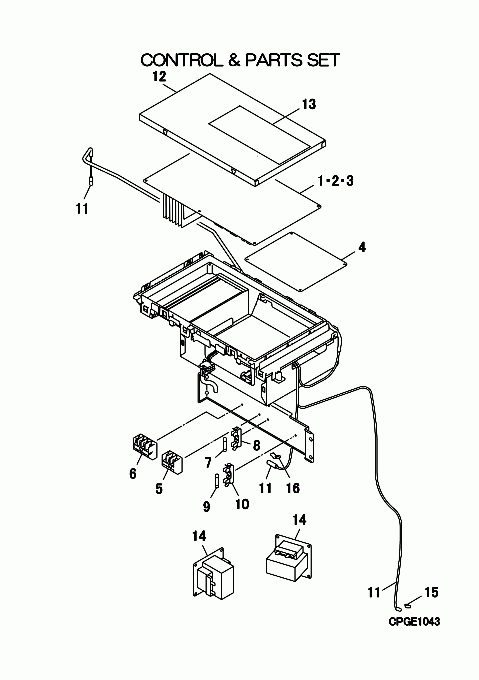

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-13] Contact

PCA501A232

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[1-3] In Stock

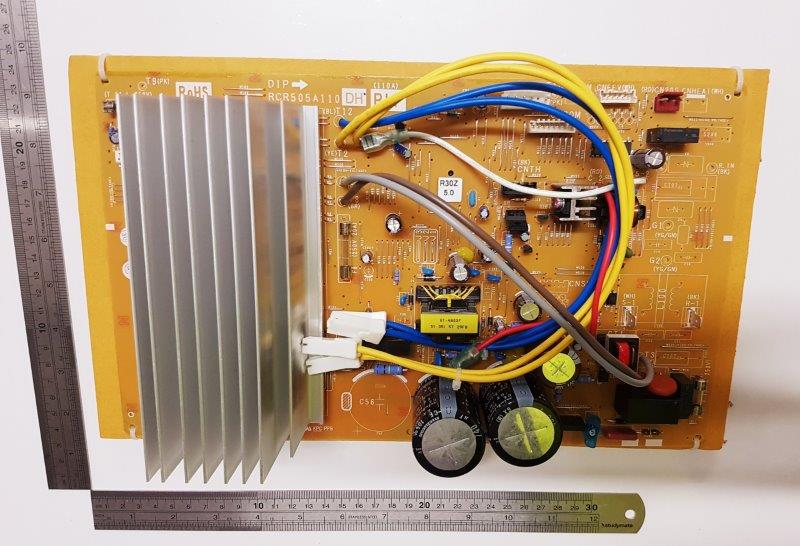

RCR505A110DH

PWB ASSY(MAIN)

Notes: PWB1, PWB1 - CONTROL PCB - LARGER PWB Show Image

[2] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F1 15A, 3.15A Show Image

[3] In Stock

SSA564A149ZA

FUSE(CURRENT)

Notes: F3 1A

[4] In Stock

RCT505A004AF

PWB ASSY (SUB)

Notes: PWB2

[5] In Stock

SSA561B665

BLOCK TERMI

Notes: TB1, T1 Show Image

[6] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: TB2, T2 Show Image

[7] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F4 20A, F 20A‚ - 20 amp fuse Show Image

[8] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[9] In Stock

SSA564A149AK

FUSE(CURRENT)

Notes: F5 8A, LENGTH 2CM Show Image

[10] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[11] In Stock

SSA551A246

SENSOR ASSY

Notes: TH1,2,3 Show Image

[12-13] In Stock

RCR142A207M

LID ASSY, CONTROL

[13] Contact

PSC011G597A

LABEL,WIRING

Contact

Notes: !

[14] Out of Stock

SSA554B128

REACTOR

Notes: Sold Individually

[15] In Stock

RKF941F002

SPRING

Notes: FOR TH1, LENGTH 2.8CM Show Image

[16] In Stock

RCJ941F001

SPRING

Notes: FOR TH3, LENGTH 2.5CM Show Image

[17] Contact

PSB011F403Z

LABEL,MODEL NAME

Contact

Notes: !
