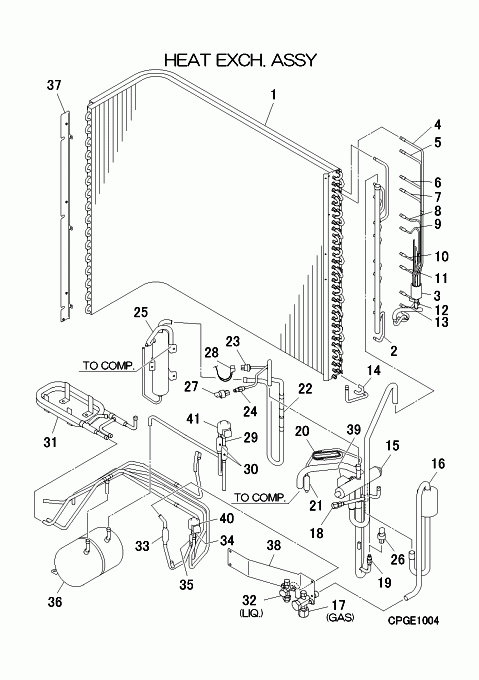

FDC112KXZES1-W/A HEAT EXCH. ASSY

Name: FDC112KXZES1-W/A HEAT EXCH. ASSY
SKU: FDC112KXZES1-W/A HEAT EXCH. ASSY
Availability: InStock

FDC112KXZES1-W/A HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] In Stock

PCA301A144K

HEAT EXCH ASSY (AIR)

[2] Contact

PCA315D172C

HEADER ASSY,GAS

Contact

Notes: ?

[3] Contact

SSA315A037A

DISTRIBUTOR

Contact

Notes: ?

[3-13] Contact

PCA315A082C

DISTRIBUTOR ASSY

Contact

[4] Contact

PCA315B795

CAPILLARY ASSY(1)

Contact

Notes: ?f2.8xf4.0 L300, !D2.8XD4.0 L300

[5] Contact

PCA315B796

CAPILLARY ASSY(2)

Contact

Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300

[6] Contact

PCA315B797

CAPILLARY ASSY(3)

Contact

Notes: ?f2.8xf4.0 L300, !D2.8XD4.0 L300

[7] Contact

PCA315B798

CAPILLARY ASSY(4)

Contact

Notes: ?f2.4xf4.0 L300, !D2.4XD4.0 L300

[8] Contact

PCA315B955

CAPILLARY(5)

Contact

Notes: ?f2.8xf4.0 L300

[9] Contact

PCA315B800

CAPILLARY(6)

Contact

Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300

[10] Contact

PCA315B801

CAPILLARY(7)

Contact

Notes: ?f2.8xf4.0 L300, !D2.8XD4.0 L300

[11] Contact

PCA315B802

CAPILLARY(8)

Contact

Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300

[12] Contact

PCA315B803

CAPILLARY(9)

Contact

Notes: ?f2.8xf4.0 L300, !D2.8XD4.0 L300

[13] Contact

PCA315B831

CAPILLARY ASSY(10)

Contact

Notes: ?f2.6xf4.0 L300, !D2.6XD4.0 L300

[14] Contact

PCA321C813

PIPE ASSY

Contact

[15] In Stock

SSA382C093

VALVE,S(4WAY)

Notes: 20S

[16-17] Contact

PCA381A099A

VALVE ASSY,SERVICE

Contact

[17] In Stock

PCA381A112

VALVE,SERVICE(5/8",1"

Notes: GAS

[18] In Stock

SSA327B072F

VALVE,SERVICE

[19] In Stock

PCA327B056

VALVE ASSY,SERVICE

Show Image

[20] Contact

PCA315B888A

CAPILLARY

Contact

Notes: ?f0.9xf2.0 L500, !D0.9XD2.0 L210

[20-21] Contact

PCA315B887A

CAPILLARY ASSY(OIL

Contact

[21] In Stock

SSA357A005A

STRAINER

Show Image

[22] In Stock

SSA385A017

VALVE CHECK

Show Image

[23] In Stock

SSA532A083

SWITCH HP

Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image

[24] Contact

PCA327B056B

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B076B

[25] In Stock

PCA325A010C

PIPE ASSY,SHELL

[26] In Stock

SSA551D022B

SENSOR LP

Notes: PSL, HAS 3 WIRES, SHORTER CABLE THAN SUB PART (LOW PRESSURE TRANSDUCER) Show Image

[27] In Stock

SSA551D024C

SENSOR,HP

Notes: PSH Show Image

[28] Contact

PCA504A322A

WIRING ASSY

Contact

[29] In Stock

SSA387F045A

VALVE EXPA

Notes: EEVH, EEVC

[29-30] In Stock

PCA387F033J

VALVE ASSY, EXP(HEAT)

Notes: includes Expansion Valve Body & Strainers

[30] In Stock

SSA357A059T

STRAINER

[31] Contact

PCA303A001

HEAT EXCH ASSY(LIQ

Contact

[32] In Stock

PCA381A066B

VALVE,SERVICE(3/8")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 3/8" Show Image

[33] In Stock

SSA357A059B

STRAINER

[34] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEVC, 'BODY' ONLY. Does NOT include coil

[35] In Stock

SSA357A005AC

STRAINER

Show Image

[36] In Stock

SSA352B045D

RECEIVER

[37] In Stock

PCA141A100

PLATE,BAFFLE(L)

Notes: LENGTH 83.5CM Show Image

[38] Contact

PCA116A199B

BRACKET

Contact

[39] In Stock

PCA382F002AB

COIL ASSY, SOLENOID

Notes: FOR 20S

[40] In Stock

SSA382F210AD

COIL SOLENOID

Notes: FOR EEVC Show Image

[41] In Stock

SSA382F212K

COIL,SOLENOID

Notes: FOR EEVH, FOR SM2‚ (HEATING), 5 CABLE - RED PLUG Show Image
