FDC112KXEN6 CONTROL AND PARTS SET

Name: FDC112KXEN6 CONTROL AND PARTS SET
SKU: FDC112KXEN6 CONTROL AND PARTS SET
Availability: InStock

FDC112KXEN6 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

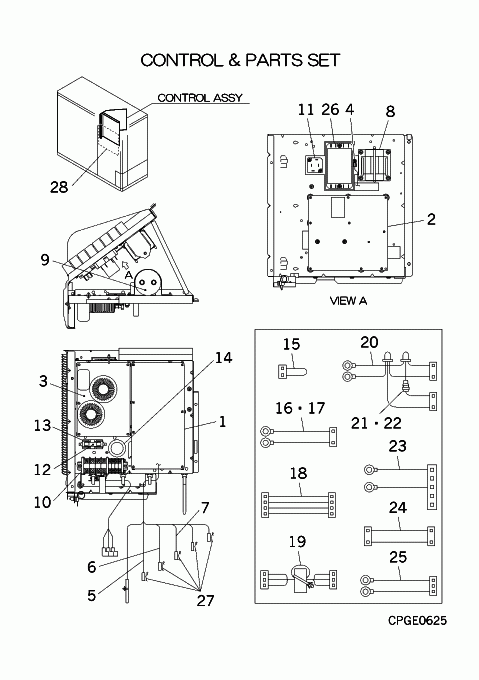

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A174BK

PWB ASSY (CONTROL)

Notes: PWB1, CHECK SERVICE CODE. /M uses different PWB. **Plugs into Fan Motor**

[1-26] Contact

PCA501A161

CONTROL ASSY

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCA505A194SJ

PWB ASSY (INV.)

Notes: PWB2, INVERTER

[3] In Stock

PCA505A127ZC

PWB ASSY

Notes: PWB3

[4] In Stock

SSA551A192L

SENSOR

Notes: THO-TR or -AF or -P, THO-IPM THO-TR THO-AF Show Image

[5] In Stock

PCA551A034B

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1. 4 sensors on same plug. Show Image

[6] In Stock

PCA551A033

SENSOR

Notes: THO-SC

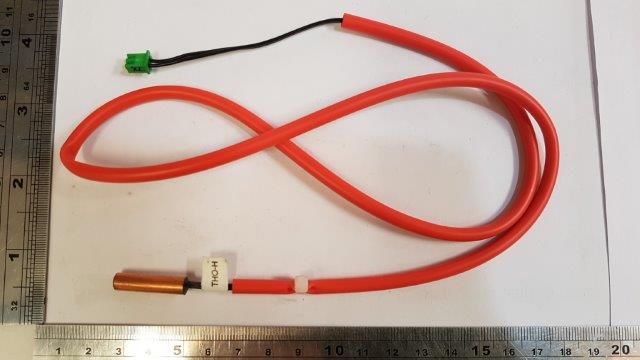

[7] In Stock

PCA551A033A

SENSOR

Notes: THO-H Show Image

[8] In Stock

SSA554B092

REACTOR

Notes: L1

[9] In Stock

SSA552F601

CAPACITOR

Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image

[10] Contact

SSA561B693K

BLOCK,TERMINAL

Contact

Notes: TB

[11] In Stock

SSA555A662

DIODE

Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image

[12] In Stock

PCA504A300

FUSE ASSY

Notes: 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)

[13] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[14] Contact

S750W30

GROMMET

Contact

Notes: D35

[15] In Stock

PCA504A264FF

WIRING ASSY

Notes: PWB1 CNS1

[16] In Stock

PCA504A264FG

WIRING ASSY

Notes: TB A1,TB B1-CNLS1

[17] In Stock

PCA504A264FH

WIRING ASSY

Notes: TB A2,TB B2-CNLS2

[18] In Stock

PCA504A264FA

WIRING ASSY

Notes: PWB1 CNI1-PWB2 CNI2

[19] In Stock

PCA504A264FB

WIRING ASSY

Notes: PWB1 CNI3- PWB2 CNI4, PWB1 CNI3-PWB2 CNI4

[20-22] Contact

PCA504A264FC

WIRING ASSY

Contact

Notes: C1 +,C1 --PWB1 CNA1,PWB1 CNA2

[21] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[22] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[23] In Stock

PCA504A264FN

WIRING ASSY

Notes: PWB3 L1O,PWB3 NO-PWB1 CNW Show Image

[24] In Stock

PCA504A264GD

WIRING ASSY

Notes: PWB3 CN2 CN2-2-PWB1 CNX1

[25] Contact

PCA504A264GG

WIRING ASSY

Contact

Notes: TB A1,TB B1-PWB3 CN1

[26] In Stock

SSA556J035A

IC (ACTIVE CONVERTER)

Notes: A/F MODULE (Active Filter Module) Show Image

[27] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[28] Contact

PSC011G555

LABEL,WIRING

Contact

[29] Contact

PSB011F021

LABEL,MODEL NAME

Contact
