FDC100VNP-W/1 HEAT EXCH. AND CONTROL

Name: FDC100VNP-W/1 HEAT EXCH. AND CONTROL
SKU: FDC100VNP-W/1 HEAT EXCH. AND CONTROL
Availability: InStock

FDC100VNP-W/1 HEAT EXCH. AND CONTROL

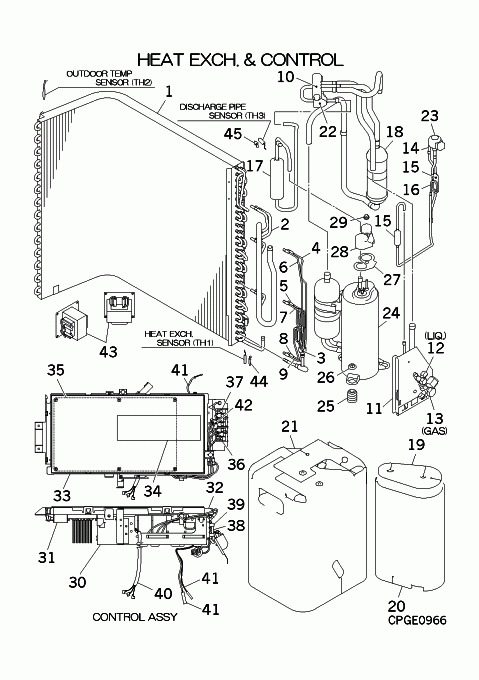

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] In Stock

RPC301A901WD

HEAT EXCH ASSY (AIR)

[2] Contact

RPC315D904AA

HEADER ASSY,GAS

Contact

Notes: !

[3] Contact

RSA315A005

DISTRIBUTOR

Contact

Notes: !

[3-9] Out of Stock

RPC315A900A

DISTRIBUTOR ASSY

[4] Contact

RPC315B911

CAPILLARY(1)

Contact

Notes: !D2.6XD4.0 L400

[5] Contact

RPC315B912

CAPILLARY(2)

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC315B914

CAPILLARY(4)

Contact

Notes: !D2.6XD4.0 L400

[7] Contact

RPC315B915

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L500

[8] Contact

RPC315B919

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L500

[9] Contact

RPC315B920

CAPILLARY(6)

Contact

Notes: !D2.6XD4.0 L500

[10] In Stock

SSA382C098

VALVE S(4WAY)

Notes: 20S, reversing valve, body only Show Image

[11] In Stock

RCR116A003

BRACKET(VALVE)

Show Image

[12] In Stock

RCR381A003B

VALVE,SERVICE(1/4")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image

[13] In Stock

RCR381A004

VALVE,SERVICE(5/8)

Notes: GAS, 5/8" GAS (SUCTION)

[14] In Stock

SSA387F059

VALVE,BODY(EXP)

Notes: EEV, EEV/ LENGTH 7.5CM Show Image

[14-16] Contact

PCA304A269

PIPING ASSY(EXPAN)

Contact

[15] In Stock

SSA357A005A

STRAINER

Show Image

[16] In Stock

RCP315B002

CAPILLARY,SUB

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image

[17] In Stock

RCR304A205

PIPING ASSY(DISCH)

[18] In Stock

AHT351A001

ACCUMULATOR

Show Image

[19] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[20] Contact

RPC154D904

INSULATION,COMP

Contact

Notes: COMP BODY

[21] Contact

RCR154D213

INSULATION

Contact

[22] In Stock

RSA382F013BC

COIL ASSY,SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL / 4 WAY VALVE COIL - coil only

[23] In Stock

SSA382F210L

COIL,SOLENOID

Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)

[24] In Stock

AHT201P184W

COMPRESSOR ASSY

Notes: RMT5118SWP1, ***COMPRESSORS CANNOT BE RETURNED***

[25] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[26] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[27] In Stock

RSA932C004

GASKET

Show Image

[28] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[29] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[30] In Stock

RCR142A205A

BOX ASSY,CONTROL

[31] In Stock

RCR132A200

COVER,CONTROL

[32] In Stock

RCR142A202A

BOX,CONTROL

[33-34] Contact

RCR142A207B

LID ASSY,CONTROL

Contact

[34] Contact

RCR011G201B

LABEL,WIRING

Contact

Notes: !

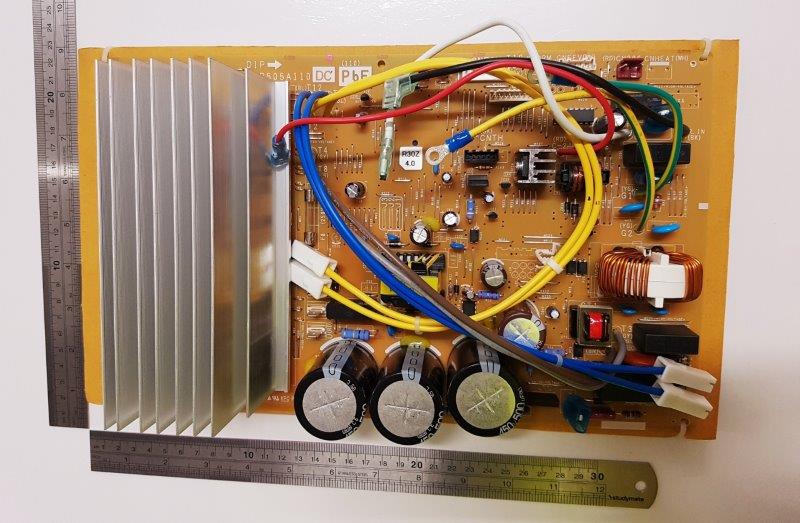

[35] In Stock

RCR505A110DC

PWB ASSY

Notes: Outdoor PCB Show Image

[36] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[37] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[38] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F 20A, F 20A‚ - 20 amp fuse Show Image

[39] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[40] In Stock

RCR504A048C

WIRING ASSY

Notes: FOR COMP., LENGTH 76CM Show Image

[41] In Stock

SSA551A244

SENSOR ASSY

Notes: TH1,2,3, TH1,2,3 (3 SENSORS) Show Image

[42] In Stock

SSA554D173

CORE,FERRITE

[43] In Stock

SSA554B114

REACTOR

Show Image

[44] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR TH1 Show Image

[45] In Stock

RCJ941F001

SPRING

Notes: FOR TH3, LENGTH 2.5CM Show Image

[46] Contact

PCA011F007N

LABEL,MODEL NAME

Contact

Notes: !

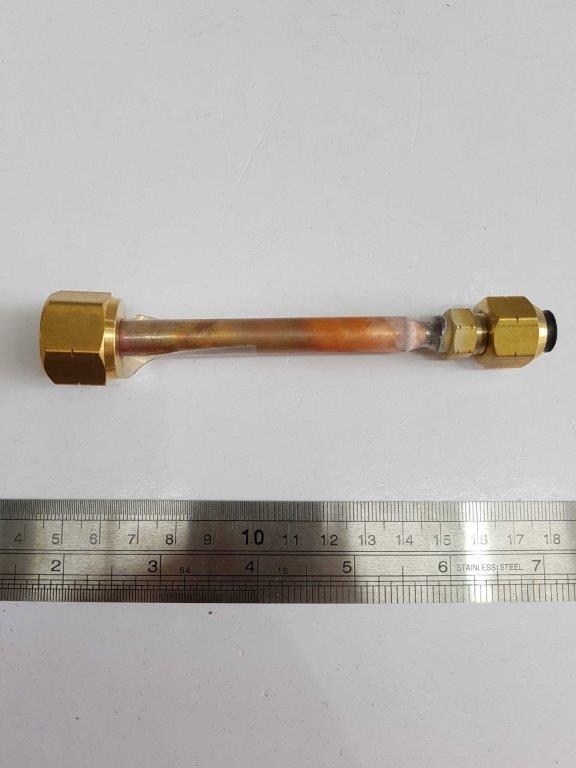

[47] In Stock

PCA321D143

PIPE ASSY

Notes: Reducer Set, LENGTH 13.8CM. Reducer. - 3/8 Inch to 1/4 Inch (9.52mm to 6.35mm) Show Image

SKU: FDC100VNP-W/1 HEAT EXCH. AND CONTROL Category: Uncategorised
