FDC100VNP/1 CONTROL AND PARTS SET

Name: FDC100VNP/1 CONTROL AND PARTS SET
SKU: FDC100VNP/1 CONTROL AND PARTS SET
Availability: InStock

FDC100VNP/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

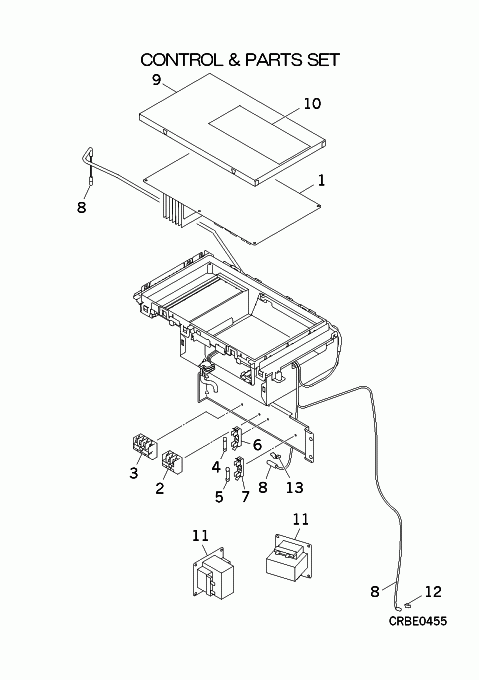

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR505A100BJ

PWB ASSY

Notes: Main PCB

[1-10] Contact

PCA501A205

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[3] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[4] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

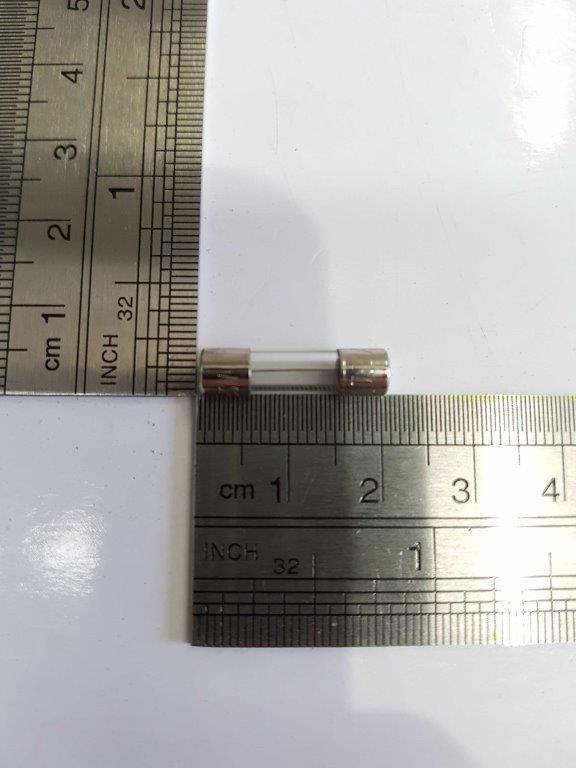

[5] In Stock

SSA564A149AK

FUSE(CURRENT)

Notes: 8A, LENGTH 2CM Show Image

[6] In Stock

SSA564B088

HOLDER,FUSE

Show Image

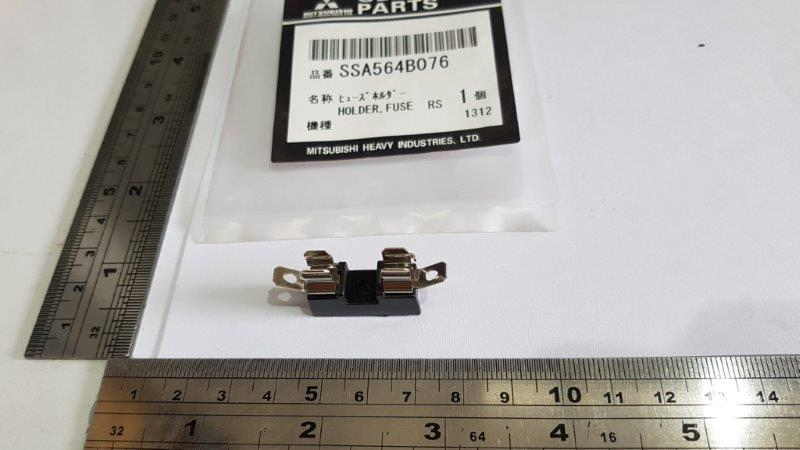

[7] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[8] In Stock

SSA551A246

SENSOR ASSY

Notes: TH1,2,3 Show Image

[9-10] Contact

RCR142A207H

LID ASSY,CONTROL

Contact

[10] Contact

PSC011G582

LABEL,WIRING

Contact

[11] In Stock

SSA554B114

REACTOR

Show Image

[12] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[13] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[14] Contact

PSB011F173AA

LABEL,MODEL NAME

Contact

SKU: FDC100VNP/1 CONTROL AND PARTS SET Category: Uncategorised
