FDC100VN/C CONTROL AND PARTS SET

Name: FDC100VN/C CONTROL AND PARTS SET
SKU: FDC100VN/C CONTROL AND PARTS SET
Availability: InStock

FDC100VN/C CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

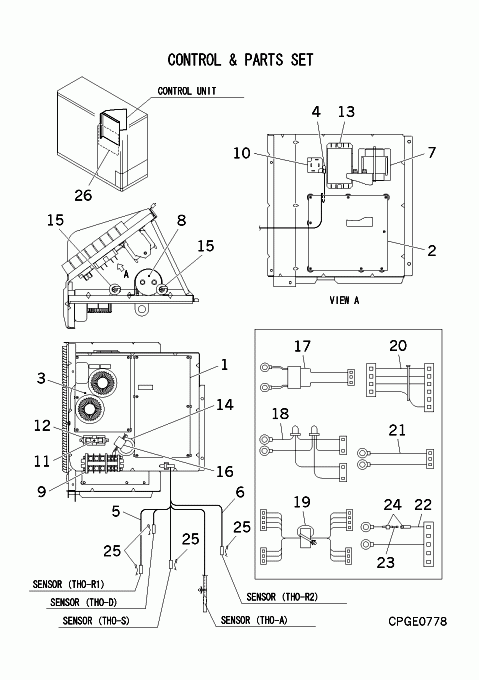

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A323JD

PWB ASSY (CONTROL)

Notes: PWB1 CONTROL, PWB1 - CONTROL BOARD - TECHNICIAN TO READ INSTALL INSTRUCTIONS

[1-24] Contact

PCA501A173F

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCA505A195DB

PWB ASSY INV.

Notes: PWB2, PWB2 - INVERTER BOARD

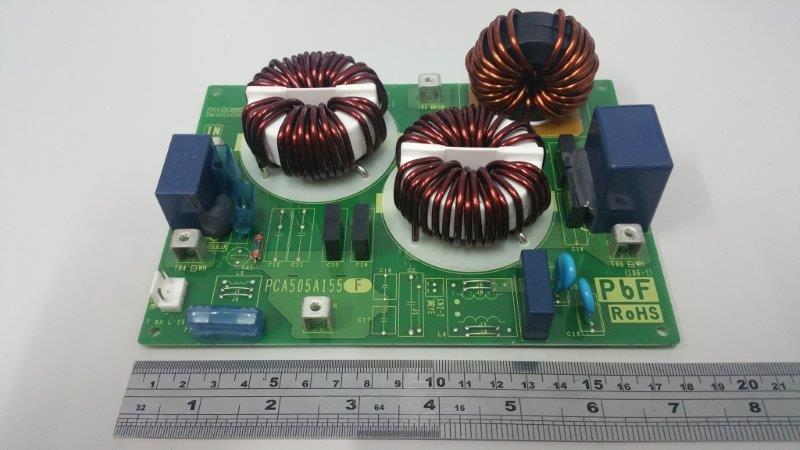

[3] In Stock

PCA505A127F

PWB ASSY (N.F)

Notes: PWB3 Show Image

[4] In Stock

SSA551A192L

SENSOR

Notes: THO-TR or -AF or -P, THO-IPM THO-TR THO-AF Show Image

[5] In Stock

PCA551A034B

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1. 4 sensors on same plug. Show Image

[6] In Stock

PSA551A013D

SENSOR

Notes: THO-R2 Show Image

[7] In Stock

SSA554B092

REACTOR

Notes: L1

[8] In Stock

SSA552F601

CAPACITOR

Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image

[9] In Stock

SSA561B693C

BLOCK TERMINAL

Notes: TB Show Image

[10] In Stock

SSA555A662

DIODE

Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image

[11] In Stock

PCA504A300

FUSE ASSY

Notes: 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)

[12] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[13] In Stock

SSA556J035A

IC (ACTIVE CONVERTER)

Notes: A/F MODULE (Active Filter Module) Show Image

[14] Contact

S750W30

GROMMET

Contact

Notes: D35

[15] In Stock

SSA554D183

KILLER,NOISE

Show Image

[16] Contact

SSA554D198A

CORE,FERRITE

Contact

[17] Contact

PCA504A264JB

WIRING ASSY

Contact

Notes: TB 2,TB 3- PWB1 CNW2

[18] In Stock

PCA504A264HP

WIRING ASSY

Notes: C1 +,C1 --PWB1 CNA1,PWB1 CNA2, C1 +,C1 -- PWB1 CNA1,PWB1 CNA2/ LENGTH 27CM Show Image

[19] Contact

PCA504A264JC

WIRING ASSY

Contact

Notes: PWB1 CNI1,PWB1 CNI3- PWB2 CNI2,PWB2 CNI4

[20] In Stock

PCA504A246BP

WIRING ASSY

Notes: PWB2 CNACT1-LACT CNACT

[21] In Stock

PCA504A246CC

WIRING ASSY

Notes: PWB3 CN1-TB 1,TB 2 Show Image

[22-24] Contact

PCA504A264GK

WIRING ASSY

Contact

Notes: PWB3 L1O,PWB3 NO-PWB1 CNW, PWB3 L1O,PWB3 NO- PWB1 CNW

[23] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[24] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[25] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[26] Contact

PSC011G564A

LABEL,WIRING

Contact

[27] Contact

PSB011F034DF

LABEL,MODEL NAME

Contact
