ESA30EH2-25/1 PIPING

Name: ESA30EH2-25/1 PIPING
SKU: ESA30EH2-25/1 PIPING
Availability: InStock

ESA30EH2-25/1 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

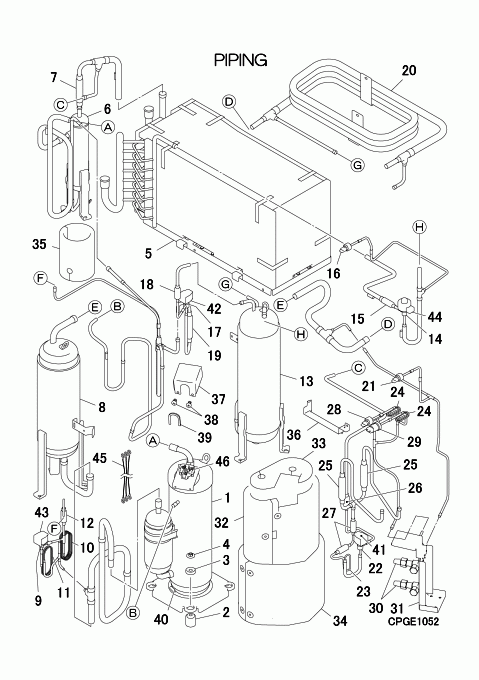

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

ATC201A002

GSR7115AD2

Notes: GSR7115AD2 INCL.BLOCK,TERMINAL, ***COMPRESSORS CANNOT BE RETURNED***

[2] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[3] Contact

SSA915H039A

WASHER

Contact

Notes: 1pc ONLY

[4] In Stock

SSA914C033

NUT

Notes: 1pc

[5] Contact

PCM302A004

COOLER ASSY,GAS

Contact

[6] Contact

PCM354A002

SEPARATER,OIL

Contact

[6-7] In Stock

PCM354A001

SEPARATER ASSY,OIL

[7] In Stock

SSA385A053A

VALVE,CHECK

Show Image

[8] Contact

SSA351A240B

ACCUMULATOR

Contact

[8-12] Contact

PCM351A001G

ACCUMULATOR ASSY

Contact

[9] In Stock

SSA382A279

VALVE,S(2WAY)

Notes: SVO1 Show Image

[9-12] In Stock

PCM382A001

VALVE ASSY,S(SVO1)

[10] Contact

PCM315B001

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1500

[11] Contact

PCM315B002

CAPILLARY

Contact

Notes: !D1.1XD2.5 L800

[12] Contact

SSA357A050A

STRAINER

Contact

[13] In Stock

SSA352A132

RECEIVER

[14] In Stock

SSA387F058

VALVE EXPA

Notes: EEVG1 Show Image

[14-16] In Stock

PCM387F001

VALVE ASSY,EXP(EEV)

[15] In Stock

SSA357A050

STRAINER

Show Image

[16] In Stock

SSA551D031

SENSOR,LP

Notes: PSM1, LENGTH 9CM Show Image

[17] Contact

SSA382A278A

VALVE,S(2WAY)

Contact

Notes: SVI1

[17-19] In Stock

PCM382A002A

VALVE, A(SVI)

[18] In Stock

SSA357A050B

STRAINER

Show Image

[19] Contact

SSA385A053

VALVE,CHECK

Contact

[20] In Stock

PCM303A001A

COOLER,INTER

[21] In Stock

SSA551D031

SENSOR,LP

Notes: PSL1, LENGTH 9CM Show Image

[22] Contact

SSA382A278A

VALVE,S(2WAY)

Contact

Notes: SVH1

[22-29] In Stock

PCM382A003F

VALVE, A (2WAY)

[23] Contact

PCM315B003

CAPILLARY

Contact

Notes: !D3.0XD4.0 L150

[24] Contact

PCM315B005

CAPILLARY

Contact

Notes: !D2.2XD3.2 L250

[25] Contact

SSA385A053

VALVE,CHECK

Contact

[26] Contact

SSA357A050A

STRAINER

Contact

[27] In Stock

SSA357A050B

STRAINER

Show Image

[28] In Stock

SSA551D030

SENSOR,HP

Notes: PSH1 Show Image

[29] In Stock

SSA532A086A

SWITCH,HP

Notes: 63H1-1 Show Image

[30] Contact

PCM381A005

VALVE,SERVICE

Contact

[31] Contact

PCB116A553K

BRACKET

Contact

[32] Contact

PCM151D018

INSULATION,COMP

Contact

[33] Contact

PCM151D019

INSULATION,COMP

Contact

[34] Contact

PCM151D020

INSULATION,COMP

Contact

[35] Contact

PCM151D017

INSULATION,OIL SEP

Contact

[36] Contact

PCM116A047

BRACKET

Contact

[37] Contact

PCM947K006

COVER,TERMINAL(COM

Contact

[38] In Stock

SSA913D020

SCREW TAP

Notes: M5X10, 1pc ONLY Show Image

[39] Contact

SSA947H001AK

EDGING

Contact

[40] In Stock

PCA541B016H

HEATER ASSY(CRANK)

[41] In Stock

PCM382F003

COIL,SOLEN

Notes: FOR SVH1, LENGTH 153.5CM Show Image

[42] In Stock

PCM382F003B

COIL,SOLEN

Notes: FOR SVI1 Show Image

[43] In Stock

PCM382F004

COIL,SOLEN

Notes: FOR SVO1 Show Image

[44] In Stock

SSA382F224B

COIL,SOLENO

Notes: FOR EEVG1, LENGTH 9CM

[45] Contact

PCM504A034F

WIRING ASSY

Contact

Notes: FOR COMP.

[46] Contact

ASA561B006

BLOCK,TERMINAL

Contact
