ESA30EH-25/1 HEAT EXCH. ASSY

Name: ESA30EH-25/1 HEAT EXCH. ASSY
SKU: ESA30EH-25/1 HEAT EXCH. ASSY
Availability: InStock

ESA30EH-25/1 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

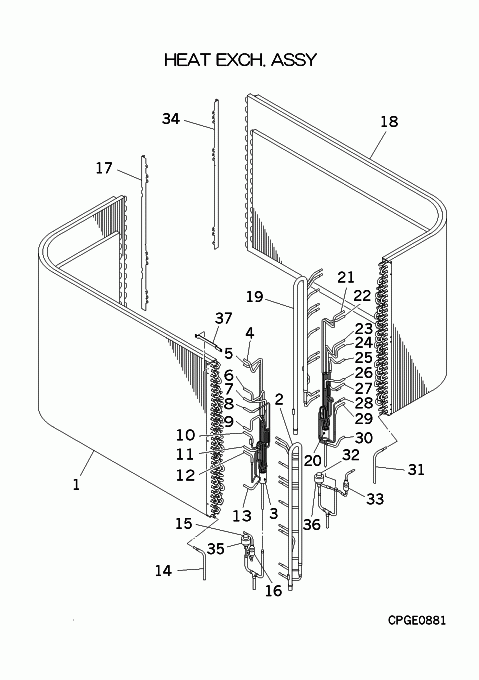

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-17] In Stock

PCM301A001AD

HEAT EXCHANGEASSY (AIR

Notes: FRONT, ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***

[2] Contact

PCM315D005A

HEADER ASSY,GAS(F)

Contact

Notes: !

[3] Contact

SSA315A305C

DISTRIBUTOR

Contact

Notes: !

[3-13] Contact

PCM315A001A

DISTRIBUTOR ASSY

Contact

[4] Contact

PCM315B023A

CAPILLARY ASSY

Contact

Notes: !D2.8XD4.0 L300

[5] Contact

PCM315B024A

CAPILLARY ASSY

Contact

Notes: !D2.6XD4.0 L300

[6] Contact

PCM315B025A

CAPILLARY ASSY

Contact

Notes: !D3.0XD5.0 L300

[7] Contact

PCM315B026A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L440

[8] Contact

PCM315B027A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L1040

[9] Contact

PCM315B028A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L300

[10] Contact

PCM315B029A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L660

[11] Contact

PCM315B030A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L1040

[12] Contact

PCM315B031A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L440

[13] Contact

PCM315B032A

CAPILLARY ASSY

Contact

Notes: !D3.0XD4.0 L300

[14] Contact

PCM321A067B

PIPE

Contact

[15] In Stock

SSA387F058

VALVE EXPA

Notes: EEVH1 Show Image

[15-16] In Stock

PCM387F003B

VALVE ASSY,EXP(EEV

[16] In Stock

SSA357A050B

STRAINER

Show Image

[17] Contact

PCB141A033

PLATE BAFF

Contact

[18-34] In Stock

PCM301A001AF

HEAT EXCHANGE ASSY (AIR)

Notes: REAR, ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***

[19] Contact

PCM315D007A

HEADER ASSY,GAS(R)

Contact

Notes: !

[20] Contact

SSA315A305C

DISTRIBUTOR

Contact

Notes: !

[20-30] In Stock

PCM315A002A

DISTRIBUTOR ASSY

[21] Contact

PCM315B033A

CAPILLARY ASSY

Contact

Notes: !D2.8XD4.0 L300

[22] Contact

PCM315B034A

CAPILLARY ASSY

Contact

Notes: !D2.6XD4.0 L300

[23] Contact

PCM315B035A

CAPILLARY ASSY

Contact

Notes: !D3.0XD5.0 L300

[24] Contact

PCM315B036A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L300

[25] Contact

PCM315B037A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L660

[26] Contact

PCM315B038A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L440

[27] Contact

PCM315B039A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L440

[28] Contact

PCM315B040A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L1040

[29] Contact

PCM315B041A

CAPILLARY ASSY

Contact

Notes: !D2.4XD4.0 L300

[30] Contact

PCM315B042A

CAPILLARY ASSY

Contact

Notes: !D3.0XD4.0 L300

[31] Contact

PCM321A067C

PIPE

Contact

[32] In Stock

SSA387F058

VALVE EXPA

Notes: EEVH2 Show Image

[32-33] In Stock

PCM387F003C

VALVE ASSY,EXP(EEV

[33] In Stock

SSA357A050B

STRAINER

Show Image

[34] Contact

PCB141A033

PLATE BAFF

Contact

[35] In Stock

SSA382F224

COIL,SOLENO

Notes: FOR EEVH1, LENGTH 174.5CM Show Image

[36] In Stock

SSA382F224A

COIL,SOLENO

Notes: FOR EEVH2, LENGTH 173CM Show Image

[37] Contact

PCB116A816

BRACKET

Contact
