EEVKIT6-E-M/B CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

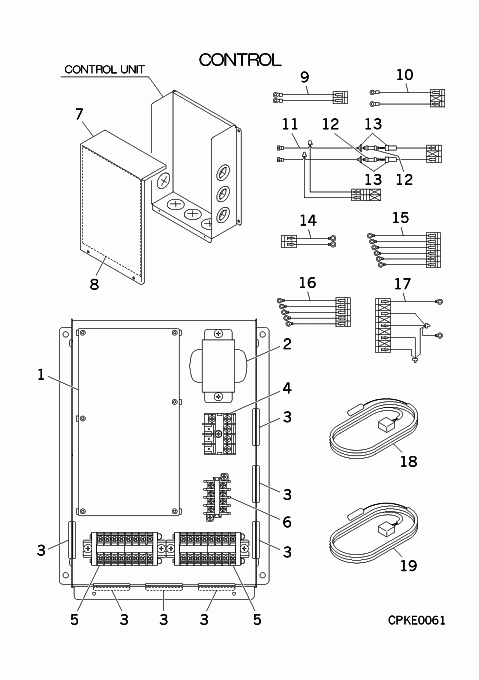

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA505A199YR

PWB ASSY

Contact

Notes: ONLY FOR SUPPLY PARTS

[1-17] Contact

PCH501A019CB

CONTROL UNIT

Contact

Notes: !

[2] In Stock

SSA554A487

TRANSFORMER

Notes: TRI, TR Show Image

[3] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[4] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[5] Contact

SSA561B693AA

BLOCK,TERMINAL

Contact

Notes: TB2

[6] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB3, TB2 Show Image

[7-29] Contact

PCH142A037

LID ASSY,CONTROL B

Contact

[8] Contact

PCH011G012

LABEL,WIRING

Contact

Notes: !

[9] Contact

PCH504A067

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1

[10] Contact

PCH504A066

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB

[11-13] Contact

PCH504A065

WIRING(TB,POWER)

Contact

[12] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: F 3.15A, 3.15 AMP FUSE Show Image

[13] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[14] Contact

PCH504A047

WIRING ASSY

Contact

Notes: CNI- TB2 15,TB2 16

[15] Contact

PCH504A048

WIRING ASSY

Contact

Notes: TB2 4,TB2 5,TB2 6,TB2 7,TB2 8,TB2 9- CNN PWB

[16] Contact

PCH504A049

WIRING ASSY

Contact

Notes: TB2 10,TB2 11,TB2 12,TB2 13,TB2 14- CNT2 PWB

[17] Contact

PCH504A052

WIRING ASSY

Contact

Notes: CNM3 PWB- TB2 1,TB2 2

[18] Contact

PCH551A010

SENSOR(TEMPERATURE

Contact

Notes: THI-A

[19] Contact

PCH551A011

SENSOR(TEMPERATURE

Contact

Notes: THI-AF
