EEVKIT6-E-C-B CONTROL

Name: EEVKIT6-E-C-B CONTROL
SKU: EEVKIT6-E-C-B CONTROL
Availability: InStock

EEVKIT6-E-C-B CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

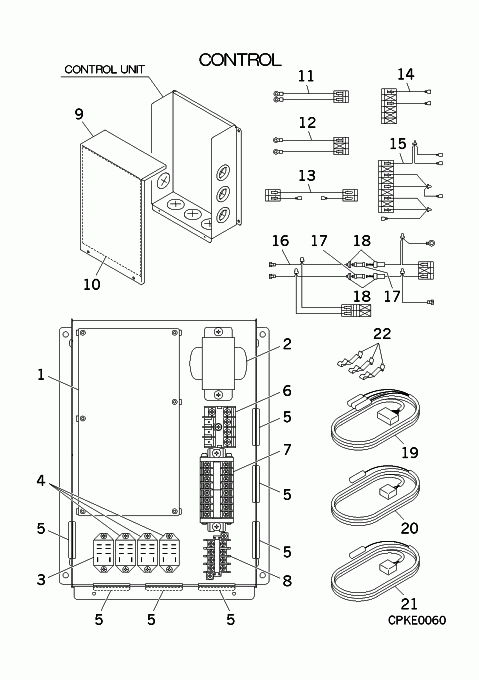

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA505A199YP

PWB ASSY

Contact

Notes: ONLY FOR SUPPLY PARTS

[1-18] Contact

PCH501A019BL

CONTROL UNIT

Contact

Notes: !

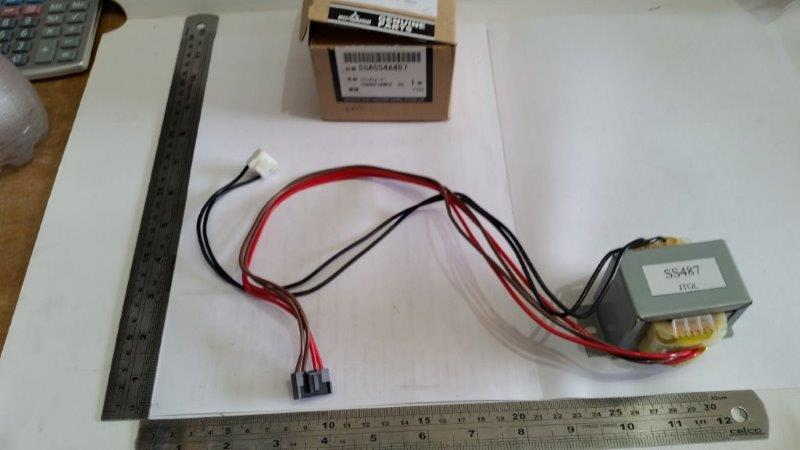

[2] In Stock

SSA554A487

TRANSFORMER

Notes: TRI, TR Show Image

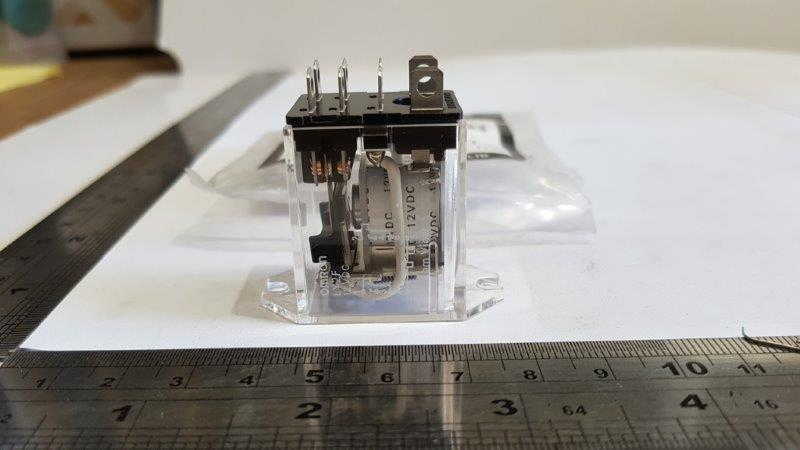

[3] In Stock

SSA521A033

RELAY

Notes: XR2 Show Image

[4] In Stock

SSA521A053A

RELAY

Notes: 52X1,51X1,52X2 Show Image

[5] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[6] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[7] Contact

SSA561B693AA

BLOCK,TERMINAL

Contact

Notes: TB2

[8] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB3, TB2 Show Image

[9-10] Contact

PCH142A037A

LID ASSY,CONTROL B

Contact

[10] Contact

PCH011G011

LABEL,WIRING

Contact

Notes: !

[11] Contact

PCH504A067

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1

[12] Contact

PCH504A066

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB

[13] Contact

PCH504A059

WIRING ASSY

Contact

Notes: CNI- CNI2

[14] Contact

PCH504A060

WIRING ASSY

Contact

Notes: CNT- XR2 8,XR2 7

[15] Contact

PCH504A061

WIRING ASSY

Contact

Notes: CNM3 PWB- 52X1 8,52X2 8,52X1 7,52X2 7

[16-18] Contact

PCH504A064

WIRING ASSY

Contact

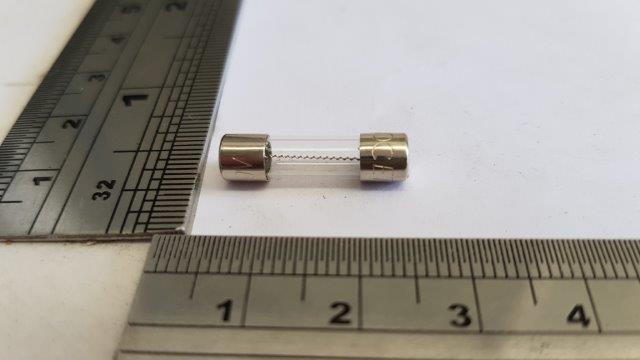

[17] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: F 3.15A, 3.15 AMP FUSE Show Image

[18] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[19] Contact

PCH551A012

SENSOR ASSY(TEMP)

Contact

Notes: THI-R1,2,3

[20] Contact

PCH551A010

SENSOR(TEMPERATURE

Contact

Notes: THI-A

[21] Contact

PCH551A011

SENSOR(TEMPERATURE

Contact

Notes: THI-AF

[22] In Stock

PSA941F001

SPRING LEAF

Notes: FOR THI-R, 1pc ONLY Show Image

SKU: EEVKIT6-E-C-B CONTROL Category: Uncategorised
