DXU43VF HEAT EXCH. AND FAN

Name: DXU43VF HEAT EXCH. AND FAN
SKU: DXU43VF HEAT EXCH. AND FAN
Availability: InStock

DXU43VF HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

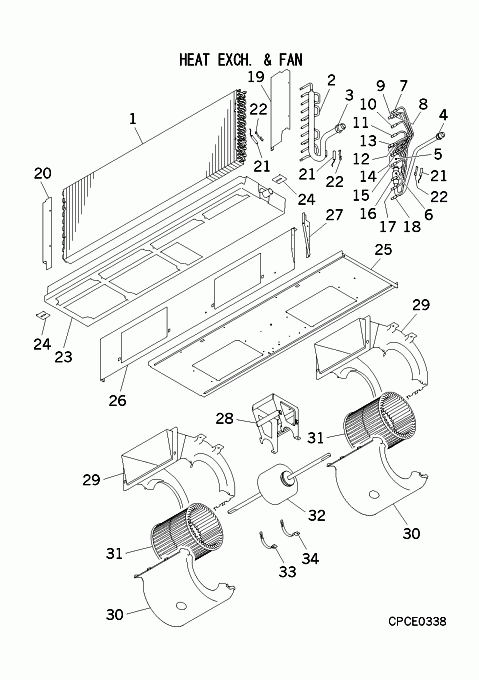

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJG311A004

HEAT EXCH(AIR)

Contact

[1-22] Out of Stock

PJG301A007

HEAT EXCH ASSY

Notes: Indoor/Evaporator Heat exchanger coil assembly

[2-3] Contact

PJG315D009

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012C

UNION,SOLDER

Contact

[4] In Stock

SSA323F088

UNION(SLD)

Notes: FOR GAS, LENGTH 2.6CM Show Image

[4-18] In Stock

PJG315A010

DISTRIBUTOR ASSY

Notes: Includes Distributor, Strainer & Capillaries

[5] Contact

PJG315A001F

DISTRIBUTOR

Contact

[5-18] Contact

PJG315A011

DISTRIBUTOR ASSY

Contact

[6] In Stock

SSA357A051

STRAINER

Show Image

[7] Contact

PJG315B003

CAPILLARY

Contact

Notes: !D2.6XD4.0 L220

[8] Contact

PJG315B003A

CAPILLARY

Contact

Notes: !D2.0XD4.0 L300

[9] Contact

PJG315B003B

CAPILLARY

Contact

Notes: !D3.0XD4.0 L220

[10] Contact

PJG315B003C

CAPILLARY

Contact

Notes: !D2.8XD4.0 L200

[11] Contact

PJG315B003D

CAPILLARY

Contact

Notes: !D2.6XD4.0 L180

[12] Contact

PJG315B003F

CAPILLARY

Contact

Notes: !D2.8XD4.0 L180

[13] Contact

PJG315B003G

CAPILLARY

Contact

Notes: !D3.0XD4.0 L220

[14] Contact

PJG315B003H

CAPILLARY

Contact

Notes: !D2.2XD4.0 L180

[15] Contact

PJG315B003J

CAPILLARY

Contact

Notes: !D2.0XD4.0 L240

[16] Contact

PJG315B003K

CAPILLARY

Contact

Notes: !D2.8XD4.0 L220

[17] Contact

PJG315B003L

CAPILLARY

Contact

Notes: !D2.8XD4.0 L260

[18] Contact

PJG315B003M

CAPILLARY

Contact

Notes: !D2.6XD4.0 L320

[19] Contact

PJG141A007

PLATE,BAFFLE(R)

Contact

[20] Contact

PJG141A008

PLATE,BAFFLE(L)

Contact

[21] Out of Stock

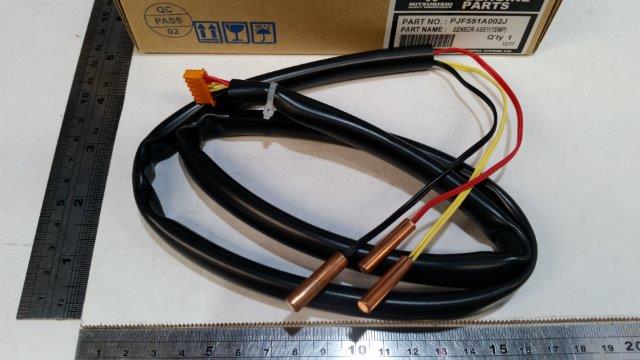

PJF551A002J

SENSOR ASSY

Notes: THI-R1,2,3 Show Image

[22] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[23] In Stock

PJG454A005

PAN ASSY,DRAIN

Notes: comes with outlet and plug

[24] In Stock

PJG116A009

BRACKET

Show Image

[25] In Stock

PJG119A018

PLATE(BASE,FAN)

[26] In Stock

PJG119A019

PLATE,FAN

[27] In Stock

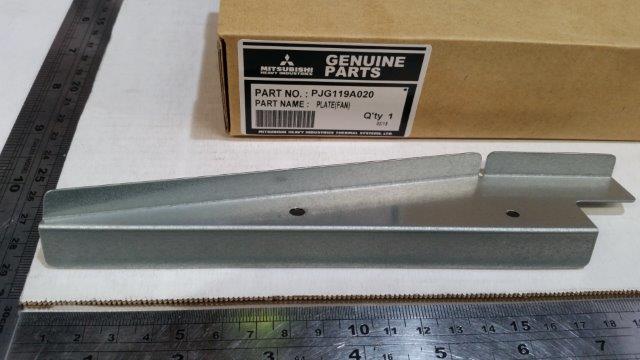

PJG119A020

PLATE(FAN)

Notes: RIGHT Show Image

[28] In Stock

PJG116A011

BRACKET(MOTOR)

[29] In Stock

PJG433B006

CASING(U)

[30] In Stock

PJG433B004

CASING(L)

[31] In Stock

SSA431D094

IMPELLER

Notes: FAN BARREL

[32] In Stock

SSA512T123C

MOTOR DC

[33] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[34] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image
