DXK24ZTLA-WF HEAT EXCH. AND CONTROL
PRINT
DXK24ZTLA-WF HEAT EXCH. AND CONTROL
DXK24ZTLA-WF HEAT EXCH. AND CONTROL

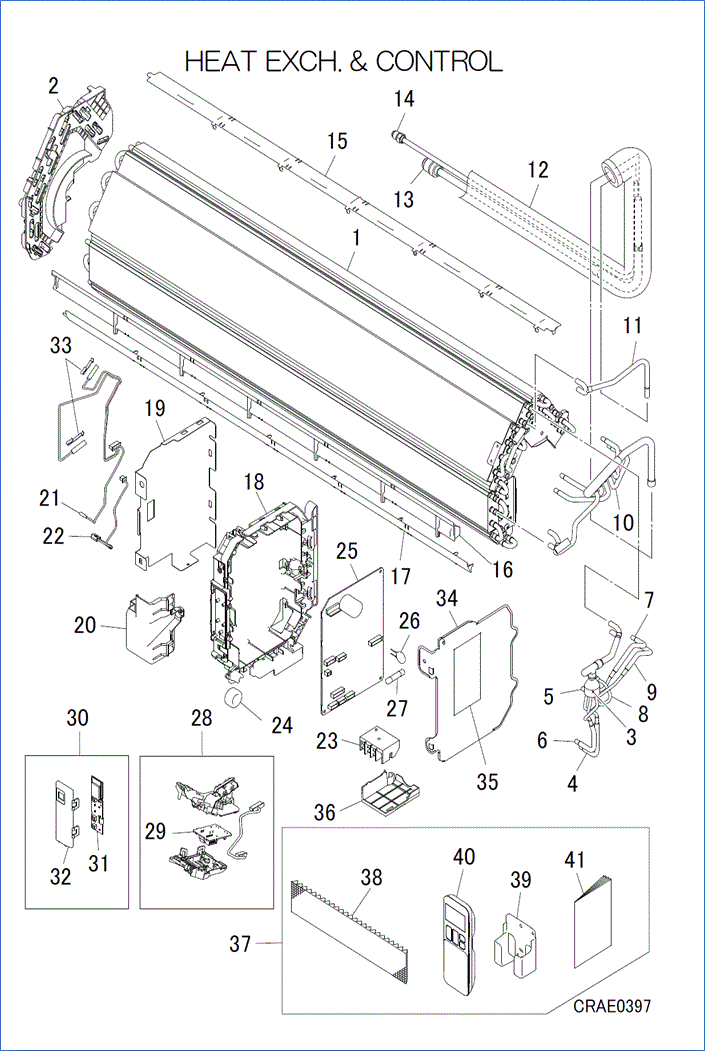

Parts List
Key:
Instock.
Nilstock.
Contact MRE.
Check the parts position number [ ] matching with the drawing.
Login
to view prices.
[1-11]
In Stock
RLH301A501
HEAT EXCH ASSY (AIR)
Notes:
Indoor Heat exchanger coil assembly
[3]
Contact
RSA315A005
DISTRIBUTOR
Contact
[3-9]
In Stock
RLH315A500
DISTRIBUTOR ASSY
Show Image
[4]
Contact
RLH321A514
PIPE ASSY
Contact
Notes:
D3.0xD4.0 L100
[5]
Contact
RLH315B501
CAPILLARY
Contact
Notes:
D3.0xD4.0 L100
[6]
Contact
RLH321A516
PIPE ASSY
Contact
Notes:
D3.0xD4.0 L100
[7]
Contact
RLH321A518
PIPE ASSY
Contact
Notes:
D3.0xD4.0 L100
[8]
Contact
RLH315B504
CAPILLARY
Contact
Notes:
D3.0xD4.0 L100
[9]
Contact
RLH321A520
PIPE ASSY
Contact
Notes:
D3.0xD4.0 L100
[10]
Contact
RLH315D500
HEADER ASSY
Contact
[11]
Contact
RLH321A505
PIPE ASSY
Contact
[12-14]
In Stock
RLH321A500
PIPE ASSY
[13]
Contact
SSA323F091B
UNION (SLD)
Contact
Notes:
FOR GAS
[14]
Contact
SSA323F091A
UNION (SLD)
Contact
Notes:
FOR LIQ.
[15]
Contact
RLH129A501
PLATE, BAFFLE
Contact
[16]
Contact
RLH129A502
SEAL (A)
Contact
[17]
Contact
RLH129A503
SEAL (B)
Contact
[18]
In Stock
RLH142A002
BOX, CONTROL
[19]
Contact
RLH132A001
COVER, CONTROL
Contact
[20]
Contact
RLH129A511
COVER, BEND
Contact
[21]
In Stock

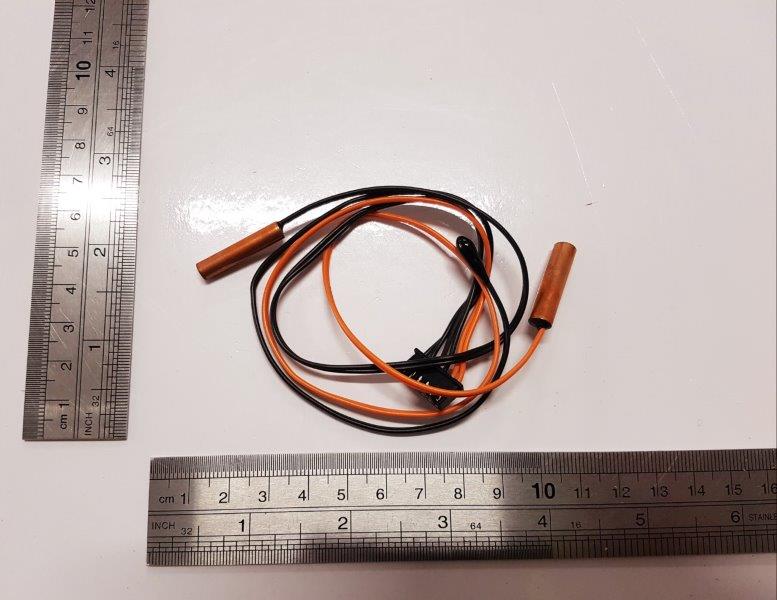

SSA551A223T
SENSOR ASSY
Notes:
INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)
Show Image
[22]
In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes:
HUMIDITY SENSOR
Show Image
[23]
In Stock
SSA561B702B
BLOCK,TERMINAL
Notes:
T1, T2
Show Image
[24]
In Stock
SSA554D173
CORE,FERRITE
[25-27]
In Stock

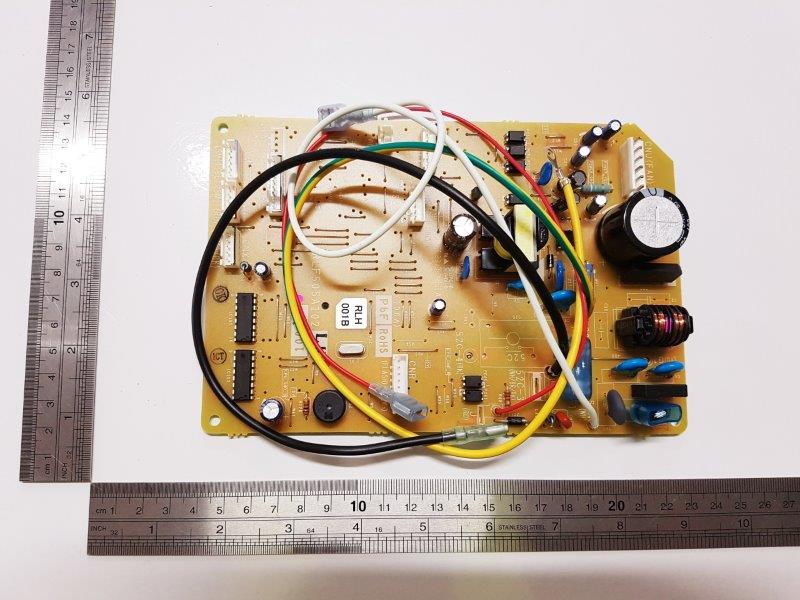

RLF505A102LK
PWB ASSY
Notes:
Main PCB
Show Image
[26]
In Stock
SSA555B050C
VARISTOR
Notes:
Z, Z1
Show Image
[27]
In Stock
SSA564A132
FUSE(CURRENT)
Notes:
F 3.15A, 3.15A
Show Image
[28]
In Stock
RLH503A500
DISPLAY ASSY
Notes:
Display/Receiver PCB with wiring harness and housing
Show Image
[29]
Out of Stock
RLH505A001
PWB ASSY (DISPLAY)
Substitute:
RLH505A001A
Show Image
[30]
In Stock
RLH503A003A
WF ASSY (SPARE)
[31]
In Stock
RLH505A002
PWB (WIFI)
Notes:
WIFI PWB. (NOT MAIN PWB). - does NOT include wiring harness. For wiring harness please order assembly
Show Image
[33]
In Stock
PSA941F001
SPRING LEAF
Notes:
1pc ONLY
Show Image
[36]
In Stock
RLH129A019
COVER ASSY (TB)
Notes:
Cover for Terminal block
[38]
In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes:
ALLERGEN FILTER
[39]
In Stock
RLH032A002
HOLDER (REMO-CON)
Notes:
Holder for Remote Control
Show Image
[40]
In Stock
RLH502A001
REMOTE CONTROL
Substitute:
RYD502A052
Notes:
Holder = RLH032A002
Show Image
