DXK18Z3-S PANEL AND FAN ASSY

Name: DXK18Z3-S PANEL AND FAN ASSY
SKU: DXK18Z3-S PANEL AND FAN ASSY
Availability: InStock

DXK18Z3-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

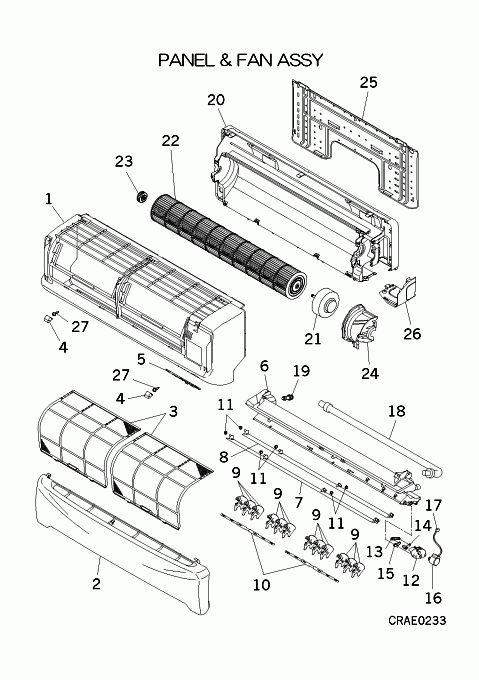

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKX122A300J

PANEL, FRONT

[1-5] Contact

RKX102A300K

PANEL ASSY,FRONT

Contact

[2] Out of Stock

RKX435A300B

PANEL, AIR INLET

Notes: OUT OF PRODUCTION

[3] In Stock

RKX437A300

FILTER, AIR

Notes: 1pc ONLY, RETURN AIR FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY Show Image

[4] In Stock

RKX129A013

CAP

Show Image

[5] Contact

RKX133A300

PLATE,ORNAMENT

Contact

[6] In Stock

RKX435A303

GRILLE, AIR OUTLET

[6-19] In Stock

RKX435A302P

GRILLE ASSY, AIR OUT

[7] In Stock

RKX436A001C

FLAP (A)

Notes: UPPER, Upper

[8] In Stock

RKX436A002C

FLAP(B)

Notes: LOWER, LOWER HORIZONTAL FLAP/ LENGTH 69.5CM

[9] In Stock

RKX436A005B

LOUVER

Notes: SEE LOUVER ASSY, *** ONE LOUVER ONLY *** Show Image

[9-10] In Stock

RKX436A006A

LOUVER ASSY

[10] Contact

RKX129A015

PLATE,CONNECTING

Contact

Notes: !

[11] Out of Stock

RKW935C200

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[12] In Stock

RKX129A010

BRACKET,MOTOR(A)

Show Image

[13] In Stock

RKX144A001

LINK

Show Image

[14] In Stock

RKX144A002

CRANK(A)

Show Image

[15] In Stock

RKX144A003

CRANK(B)

Show Image

[16] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[17] In Stock

RKS504A100G

HARNESS

Notes: FOR FLAP MOTOR, WIRING HARNESS FOR FLAP - UP & DOWN

[18] In Stock

SSA423A114

HOSE,DRAIN

[19] In Stock

SSA326A047

PLUG

Notes: Plug for condensate/drain tray.

[20] In Stock

RKX111A001

BASE ASSY

Show Image

[21] In Stock

SSA512T127

MOTOR, DC

Notes: FOR IMPELLER Show Image

[22] In Stock

SSA431G046A

IMPELLER

Notes: FAN BARREL

[23] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[24] In Stock

RKX129A005

COVER(MOTOR)

Show Image

[25] In Stock

RKX032A001

PLATE,INSTALLATION

Notes: MOUNTING PLATE

[26] In Stock

RKX132A001A

LID

Notes: RIGHT HAND SIDE LID. (COVERS PIPING) Show Image

[27] In Stock

SSA913A007A

SCREW,TAP

Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image
