DXK09Z3-S HEAT EXCH. AND CONTROL

Name: DXK09Z3-S HEAT EXCH. AND CONTROL
SKU: DXK09Z3-S HEAT EXCH. AND CONTROL
Availability: InStock

DXK09Z3-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

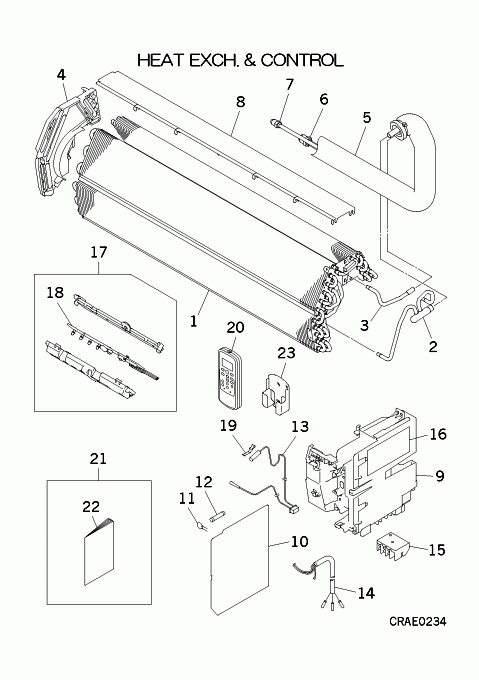

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RKX301A302S

HEAT EXCH ASSY(AIR)

[2] Contact

RKX315D006

HEADER ASSY

Contact

Notes: !

[3] Contact

RKX321A034

PIPE

Contact

Notes: !

[4] Contact

RKX129A016

BRACKET ASSY(L)

Contact

Notes: !

[5-7] In Stock

RKX321A001

PIPE ASSY

[6] In Stock

SSA323F088

UNION(SLD)

Notes: FOR GAS, LENGTH 2.6CM Show Image

[7] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[8] Contact

RKX129A001

PLATE ASSY,BAFFLE

Contact

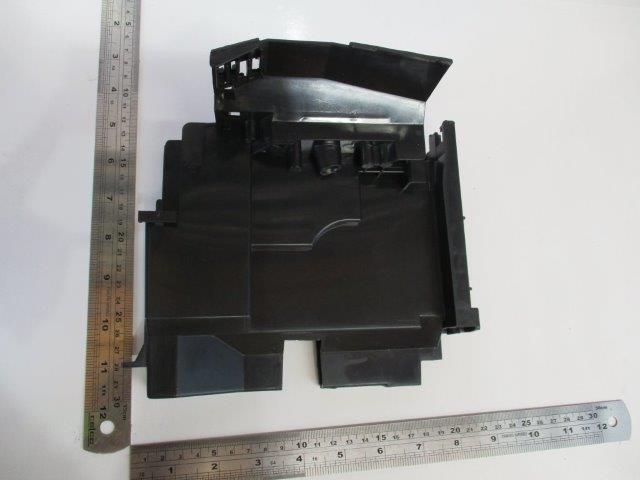

[9] In Stock

RKX142A001

BOX,CONTROL

Show Image

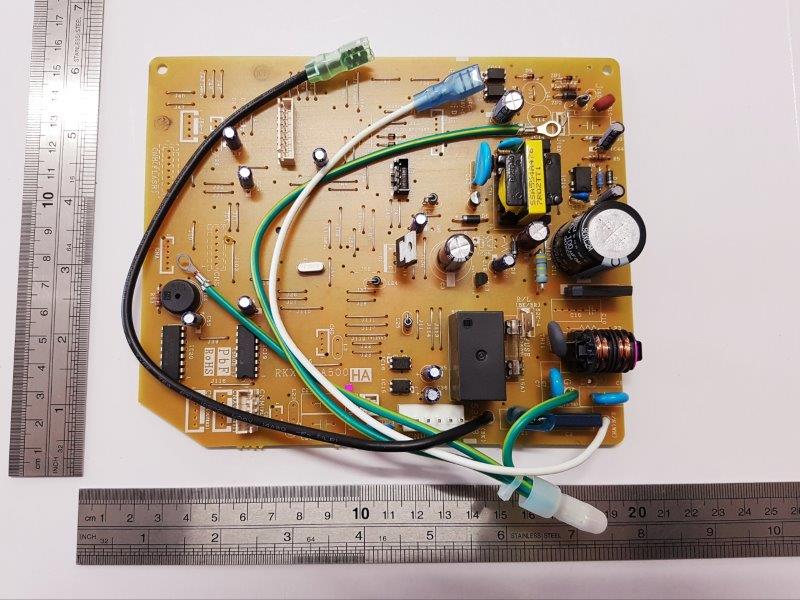

[10-12] In Stock

RKX505A500HA

PWB ASSY

Notes: INDOOR MAIN PC BOARD Show Image

[11] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[12] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[13] In Stock

SSA551A163L

SENSOR ASSY

Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image

[14] In Stock

RKV504A500G

HARNESS ASSY

[15] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[16] Contact

RKX011G602

LABEL,WIRING

Contact

[17] In Stock

RKX503A301A

DISPLAY ASSY

[18] In Stock

RKX505A007A

PWB ASSY(DISPLAY)

Show Image

[19] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[20] In Stock

RKX502A007P

CONTROL, REMOTE

Notes: DOES NOT INCLUDE REMOTE CONTROL HOLDER(RKN032A002B) Show Image

[21] Contact

RKX008A005N

PARTS,STANDARD

Contact

[22] Contact

RKX012A315A

MANUAL,INSTRUCTION

Contact

[23] In Stock

RKN032A002B

HOLDER

Show Image

[24] Contact

RKX011F003AF

LABEL,MODEL NAME

Contact
