DXK07ZTLA-WF PANEL AND FAN ASSY

Name: DXK07ZTLA-WF PANEL AND FAN ASSY
SKU: DXK07ZTLA-WF PANEL AND FAN ASSY
Availability: InStock

DXK07ZTLA-WF PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

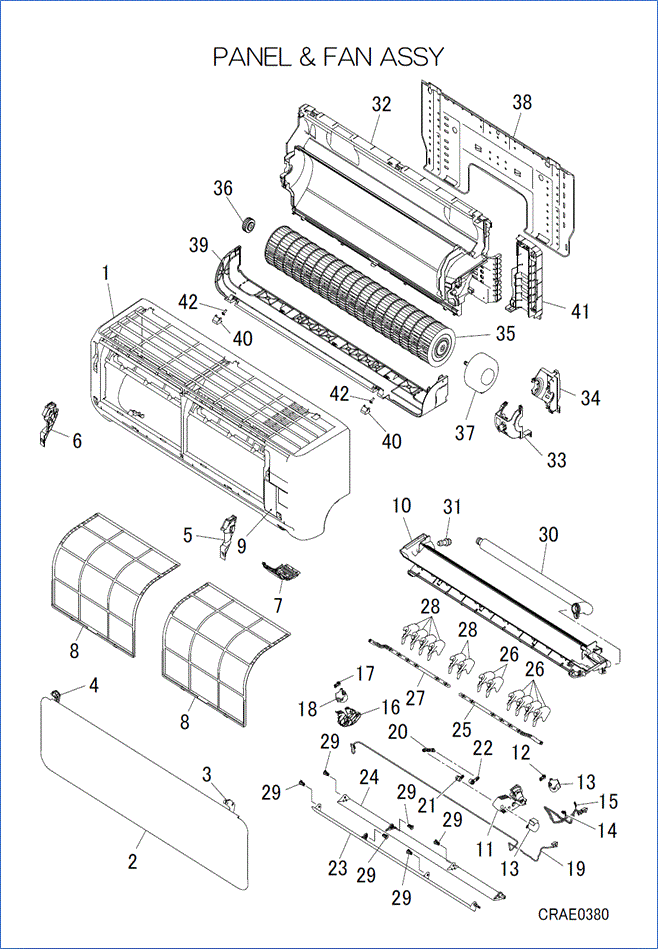

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RLH122A001

PANEL, FRONT

[1-9] In Stock

RLH102A001

PANEL ASSY, FRONT

[2-4] Out of Stock

RLH435A003

PANEL ASSY, AIR IN

[3] In Stock

RLH129A023

ARM, INLET (R)

[4] In Stock

RLH129A024

ARM, INLET (L)

[5] In Stock

RLH129A021

HOLDER, ARM (R)

[6] Contact

RLH129A022

HOLDER, ARM (L)

Contact

[7] Contact

RLH133A001

ORNAMENT ASSY

Contact

[8] Out of Stock

RLH437A001

FILTER, AIR

Notes: W315.5xH334.7(t2), Sold individually

[9] Contact

RSA011H056

LABEL,NOTICE

Contact

[10] Contact

RLH435A002

GRILLE, AIR OUTLET

Contact

Substitute: RLH435A001 Notes: USE RLH435A001

[10-31] Out of Stock

RLH435A001

GRILLE ASSY, AIR OUT

Notes: Includes drip/condensate tray, all louvers, louver motors, louver motor wiring harness, Drain hose & plug

[11] Contact

RLH129A010

BRACKET, MOTOR (R)

Contact

[11-15] Contact

RLH129A009

BRACKET ASSY (R)

Contact

[12] In Stock

RLB144A005

CRANK(C)

Notes: LENGTH 2CM Show Image

[13] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP,LOUVER(RIGHT) Show Image

[14] In Stock

RSA504A034

HARNESS ASSY

Notes: FOR FLAP MOTOR

[15] In Stock

RSA504A034A

HARNESS ASSY

Notes: FOR LOUVER MOTOR(RIGHT)

[16] Contact

RLH129A012

BRACKET, MOTOR (L)

Contact

[16-19] Contact

RLH129A011

BRACKET ASSY (L)

Contact

[17] In Stock

RLB144A005

CRANK(C)

Notes: LENGTH 2CM Show Image

[18] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR LOUVER(LEFT) Show Image

[19] In Stock

RSA504A034B

HARNESS ASSY

Notes: FOR LOUVER MOTOR(LEFT)

[20] In Stock

RLH144A501

LINK

Show Image

[20-22] In Stock

RLH144A500

LINK ASSY

Show Image

[21] In Stock

RLH144A502

CRANK (U)

Show Image

[22] In Stock

RLH144A503

CRANK (L)

Show Image

[23] In Stock

RLH436A001

FLAP (U)

Notes: Upper

[24] In Stock

RLH436A002

FLAP (L)

Notes: Lower

[25] In Stock

RLH129A013

PLATE, CONNECTING (R)

[25-26] In Stock

RLH436A003

LOUVER ASSY (R)

Notes: Right Side - Includes 6 Louver fins & Connecting rod

[26] In Stock

RLH436A004

LOUVER

[27] In Stock

RLH129A014

PLATE, CONNECTING (L)

[27-28] In Stock

RLH436A005

LOUVER ASSY (L)

Notes: Left Side - Includes 6 Louver fins & Connecting rod

[28] In Stock

RLH436A004

LOUVER

[29] In Stock

RLG129A010

SHAFT

[30] In Stock

SSA423A114

HOSE,DRAIN

[31] In Stock

SSA326A047

PLUG

Notes: Plug for condensate/drain tray.

[32] Contact

RLH111A001

BASE ASSY

Contact

[33] In Stock

RLH129A001

CASE ASSY (U)

[34] In Stock

RLH129A003

CASE ASSY (L)

[35] In Stock

SSA431G061

IMPELLER

[36] In Stock

SSA923C136Z

BEARING, PLANE

[37] In Stock

SSA512T163

MOTOR, DC

Notes: FOR IMPELLER

[38] Contact

RLH032A001

PLATE, INSTALLATION

Contact

[39-40] In Stock

RLH132A003

PANEL ASSY, BOTTOM

[40] In Stock

RLH129A025

CAP

Notes: SOLD INDIVIDUALLY Show Image

[41] In Stock

RLH116A001

BRACKET, CONTROL

[42] In Stock

SSA913A007

SCREW

Notes: 4x12, 1pc ONLY Show Image

SKU: DXK07ZTLA-WF PANEL AND FAN ASSY Category: Uncategorised
