DXK07ZTLA-WF HEAT EXCH. AND CONTROL

Name: DXK07ZTLA-WF HEAT EXCH. AND CONTROL
SKU: DXK07ZTLA-WF HEAT EXCH. AND CONTROL
Availability: InStock

DXK07ZTLA-WF HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

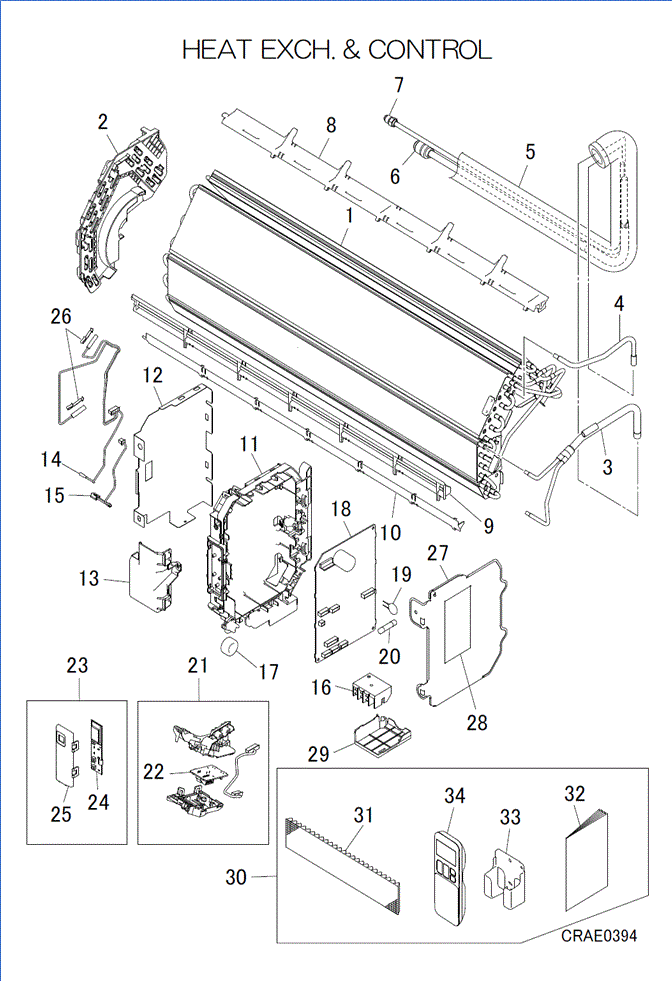

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] In Stock

RLH301A002

HEAT EXCH ASSY (AIR)

Notes: DOES NOT INCLUDE GAS & LIQUID PIPE AND INSULATION. REFER TO UNIT DRAWING ON WEBSITE

[2] In Stock

RLH129A028

BRACKET ASSY (L)

[3] Contact

RLH321A006

PIPE ASSY

Contact

[4] Contact

RLH321A043

PIPE ASSY

Contact

[5-7] Out of Stock

RLH321A015

PIPE ASSY

[6] In Stock

SSA323F091

UNION(SLD)

Notes: FOR GAS

[7] Contact

SSA323F091A

UNION (SLD)

Contact

Notes: FOR LIQ.

[8] Contact

RLH129A006

PLATE, BAFFLE

Contact

[9] Contact

RLH129A007

SEAL (A)

Contact

[10] Contact

RLH129A008

SEAL (B)

Contact

[11] In Stock

RLH142A002

BOX, CONTROL

[12] Contact

RLH132A001

COVER, CONTROL

Contact

[13] Contact

RLH129A016

COVER, BEND

Contact

[14] In Stock

SSA551A223V

SENSOR ASSY

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.) Show Image

[15] In Stock

SSA551B017C

SENSOR(HUMIDITY)

Notes: HUMIDITY SENSOR Show Image

[16] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T1, T2 Show Image

[17] In Stock

SSA554D173

CORE,FERRITE

[18-20] In Stock

RLF505A102LD

PWB ASSY

Notes: Main PCB

[19] In Stock

SSA555B050C

VARISTOR

Notes: Z, Z1 Show Image

[20] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F 3.15A, 3.15A Show Image

[21] In Stock

RLH503A001

DISPLAY ASSY

[22] In Stock

RLH505A001

PWB ASSY (DISPLAY)

Show Image

[24] In Stock

RLH505A002

PWB ASSY (WIFI)

Notes: WIFI PWB. (NOT MAIN PWB). Show Image

[26] In Stock

PSA941F001

SPRING LEAF

Notes: 1pc ONLY Show Image

[29] In Stock

RLH129A019

COVER ASSY (TB)

Notes: Cover for Terminal block

[31] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image

[33] In Stock

RLH032A002

HOLDER (REMO-CON)

[34] In Stock

RLH502A001

REMOTE CONTROL
