DXK05Z5-S HEAT EXCH. AND CONTROL

Name: DXK05Z5-S HEAT EXCH. AND CONTROL
SKU: DXK05Z5-S HEAT EXCH. AND CONTROL
Availability: InStock

DXK05Z5-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

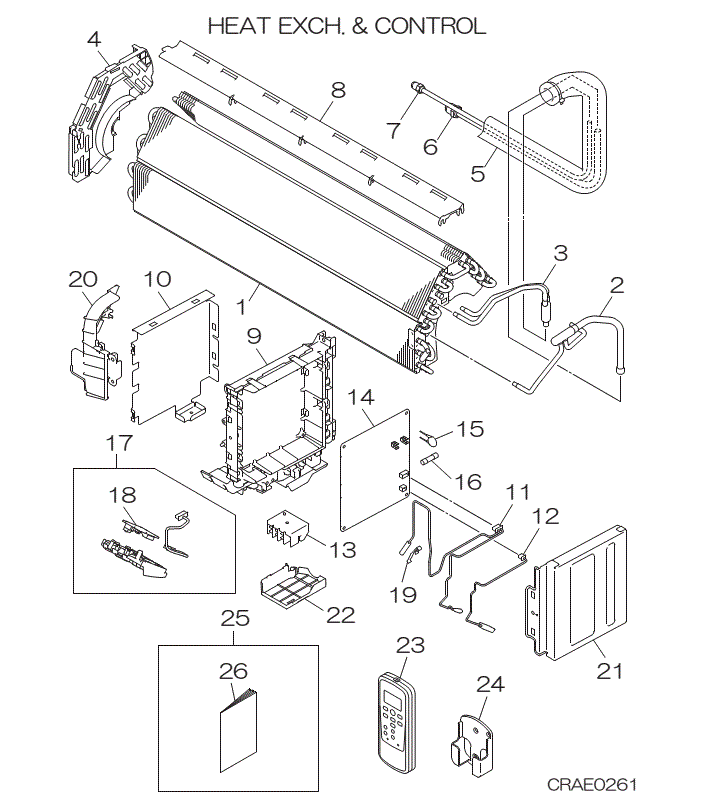

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RLC301A001S

HEAT EXCH ASSY (AIR)

[2] Contact

RLC315D003

HEADER ASSY

Contact

[3] Contact

RLC321A038

PIPE ASSY(LIQUID)

Contact

[4] Contact

RLC129A003

BRACKET(L)

Contact

[5-7] Contact

RLC321A041

PIPE ASSY

Contact

[6] In Stock

SSA323F088

UNION(SLD)

Notes: FOR GAS, LENGTH 2.6CM Show Image

[7] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[8] Contact

RLC129A004

PLATE,BAFFLE

Contact

[9] Contact

RLC142A004

BOX ASSY,CONTROL

Contact

[9-10] Contact

RLC142A003

BOX ASSY,CONTROL

Contact

[10] Contact

RLC132A002

COVER,CONTROL

Contact

[11] In Stock

SSA551A163L

SENSOR ASSY

Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image

[12] In Stock

SSA551B018

SENSOR(HUMIDITY)

[13] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[14-16] In Stock

RLC505A001T

PWB ASSY

Notes: INDOOR MAIN PC BOARD

[15] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[16] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[17] In Stock

RLC503A001

DISPLAY ASSY

Notes: RECEIVER / DISPLAY BOARD - INCLUDES HARNESS

[18] In Stock

RLC505A003

PWB ASSY DISPLAY

Notes: NO HARNESS - FOR RECEIVER/DISPLAY BOARD WITH HARNESS = RLC503A001 Show Image

[19] In Stock

RKJ941F001

SPRING LEAF

Show Image

[20] Contact

RLC129A010

COVER,BEND

Contact

[21] Contact

RLC142A002

LID,CONTROL

Contact

[22] In Stock

RLA129A023

COVER ASSY(TB)

Show Image

[23] In Stock

RKX502A007P

CONTROL, REMOTE

Notes: DOES NOT INCLUDE REMOTE CONTROL HOLDER(RKN032A002B) Show Image

[24] In Stock

RKN032A002B

HOLDER

Show Image

[25] Contact

RLC008A001M

PARTS,STANDARD

Contact

[26] Contact

RLC012A010

MANUAL,INSTRUCTION

Contact

[27] Contact

RLC011F001R

LABEL,MODEL NAME

Contact

SKU: DXK05Z5-S HEAT EXCH. AND CONTROL Category: Uncategorised
